Technical details

  • Table length6000 mm
  • Table width3000 mm
  • Longitudinal X6230 mm
  • Cross Y4250 mm
  • Vertical Z1100 mm
  • Positions ATC30
  • Distance between uprights3600 mm
  • CNC BrandHeidenhain
  • CNC Modelx

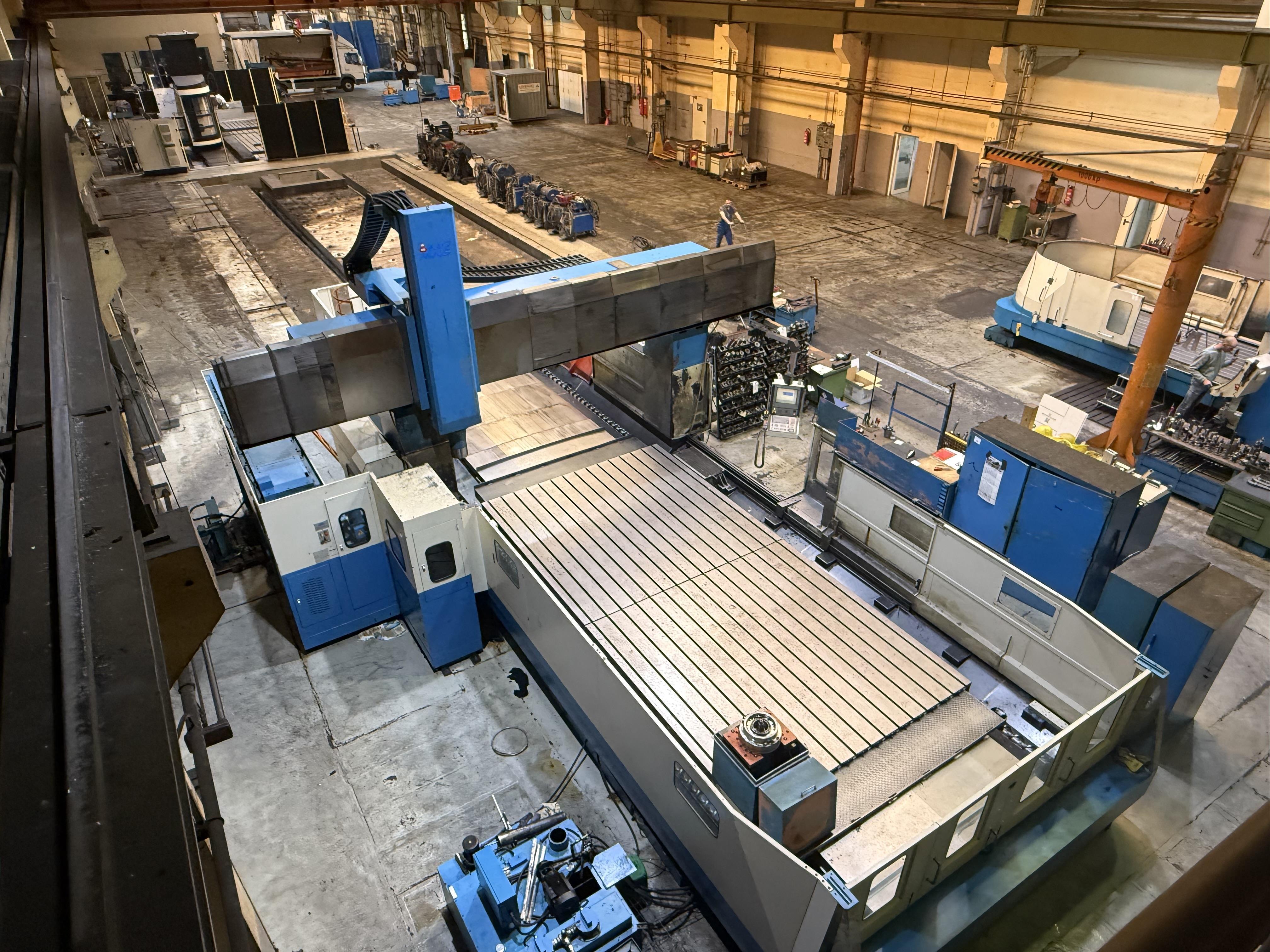

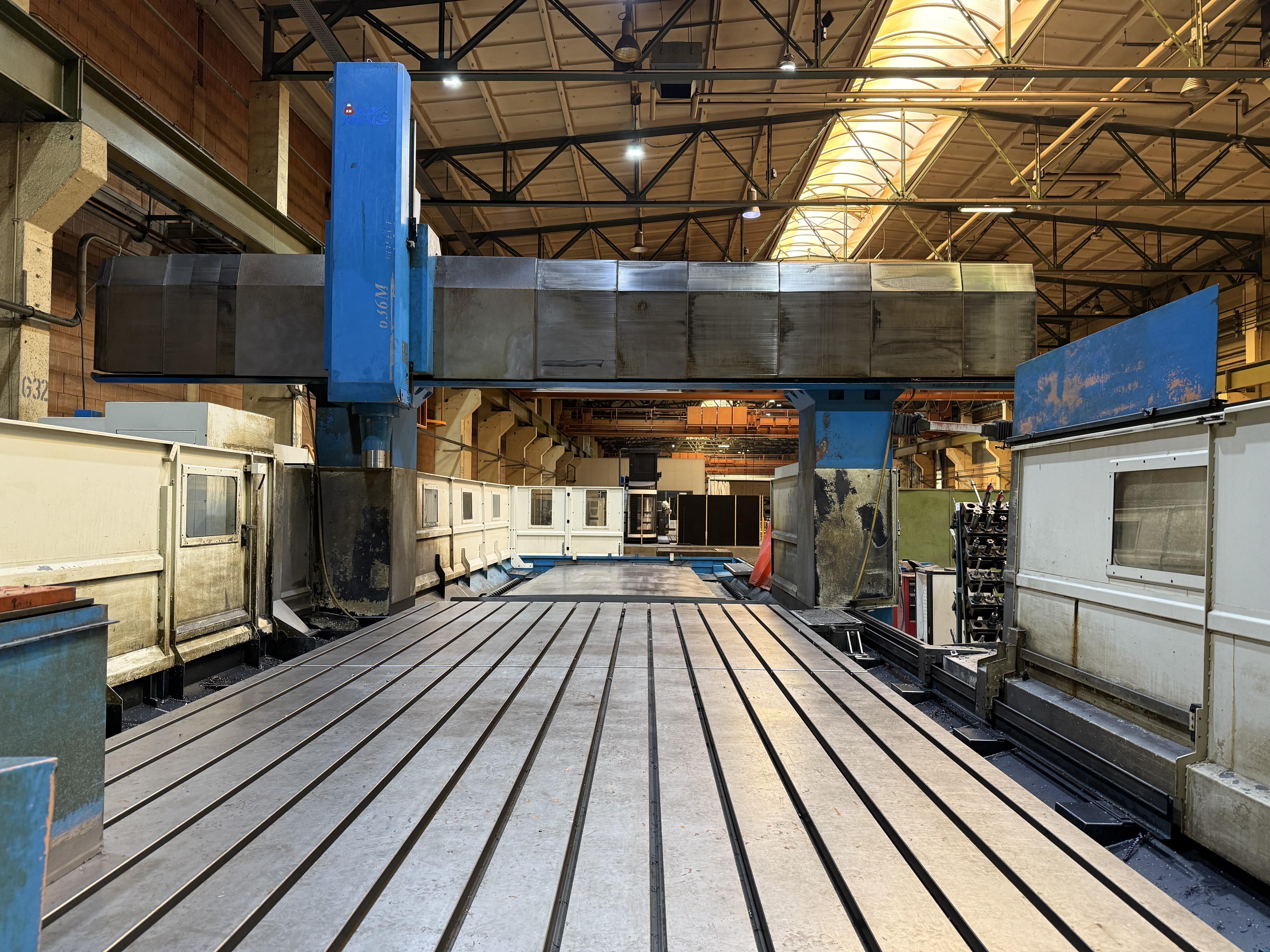

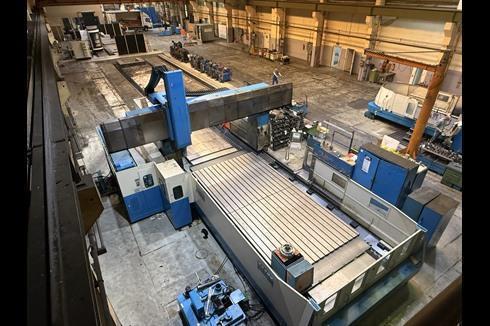

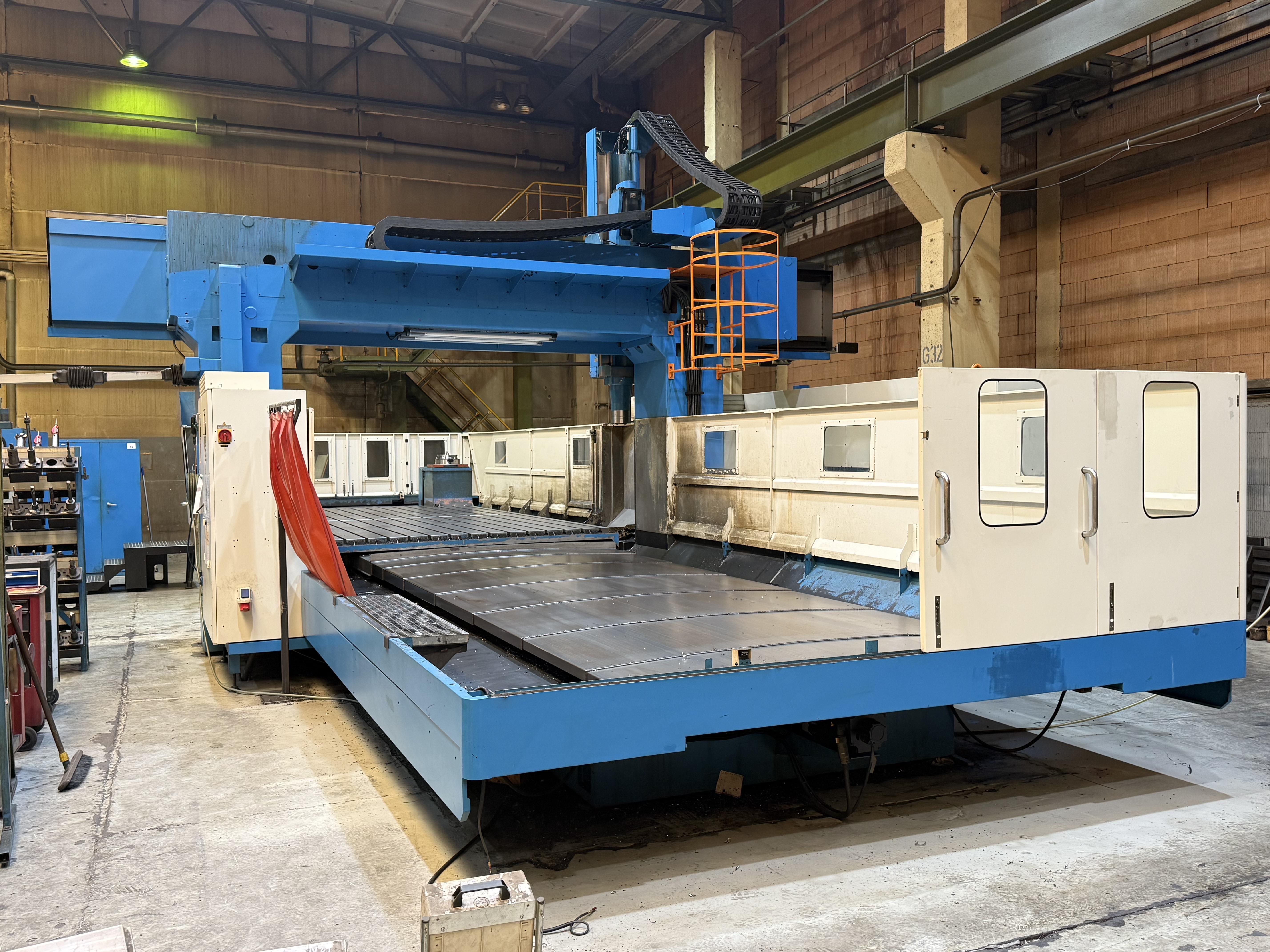

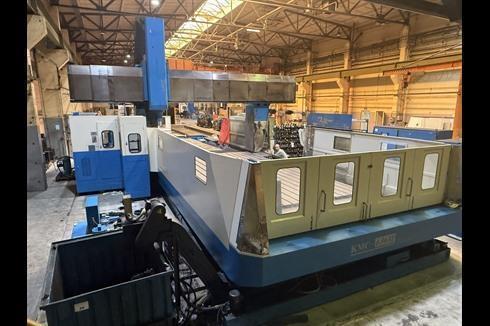

Portal milling machine KAO MING - KMC 636 Multiface

Double guideway four box way construction

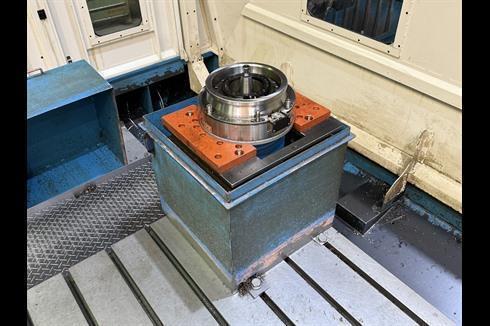

Head changer for Multi-Face machining off larger compontents
ATC tool changer for Horizontal and vertical milling head swivabel

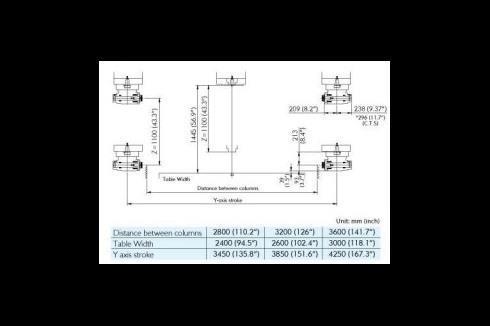

Distance table spindle nose    345 - 1445 mm
Distance table spindle center 132 - 1232 mm

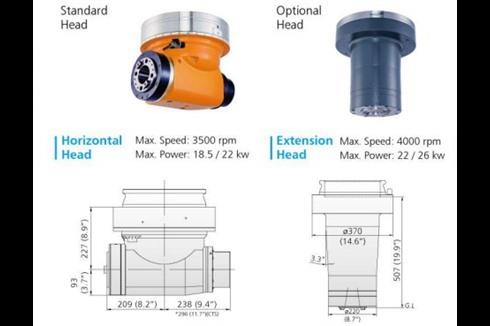

Indexing Horizontal head 5 Degrees x 72 positions
HeidenHain iTNC530 with HR410 handwheel
Spindle torq 1018 Nm ISO50

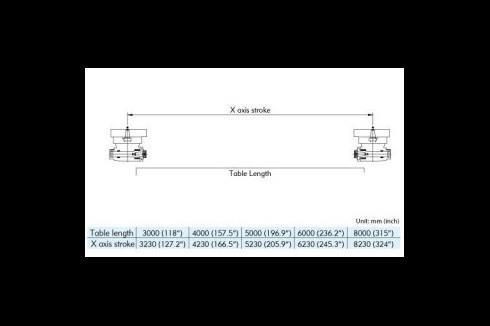

X - Travel:              6230mm
Y - Travel:              4250mm
Z - Travel:              1100mm
Distance between column: 3600mm

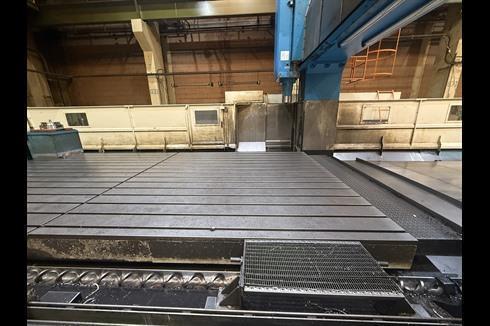

Table Length:            6000mm
Table Width:             3000mm
Table load:              15000
Feed rate X-Axis:        7000mm/min.
Feed rate Y-Axis:        8000mm/min.
Feed rate Z-Axis:        10000mm/min.
Spindle Taper:           50ISO/Bt/Mk
Power on spindle:        26kW
Speeds / ranges:         4000Rpm
ATC / revolver:          30
Number of controlled axis:3+2
Chip conveyor:           Yes
Coolantsystem:           Yes

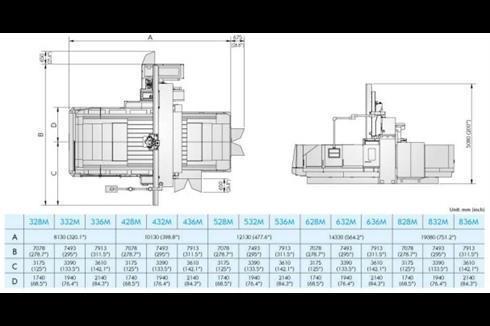

Length:                  14330mm
Width:                   7913mm
Height:                  5080mm
Weight:                  66000kg
