Technical details

  • Table length4000 mm
  • Table width1250 mm
  • Longitudinal X4230 mm
  • Cross Y1950 mm
  • Vertical Z750 mm
  • Positions ATC30
  • Distance between uprights1500 mm
  • CNC BrandHeidenhain
  • CNC Modelx

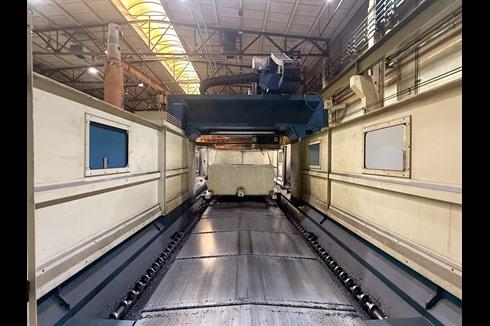

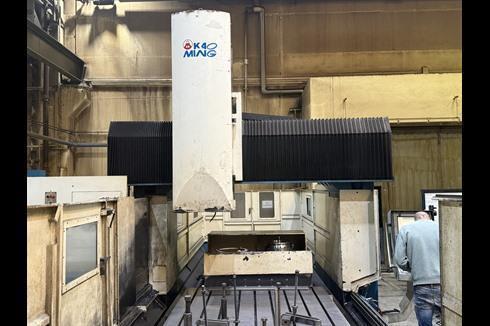

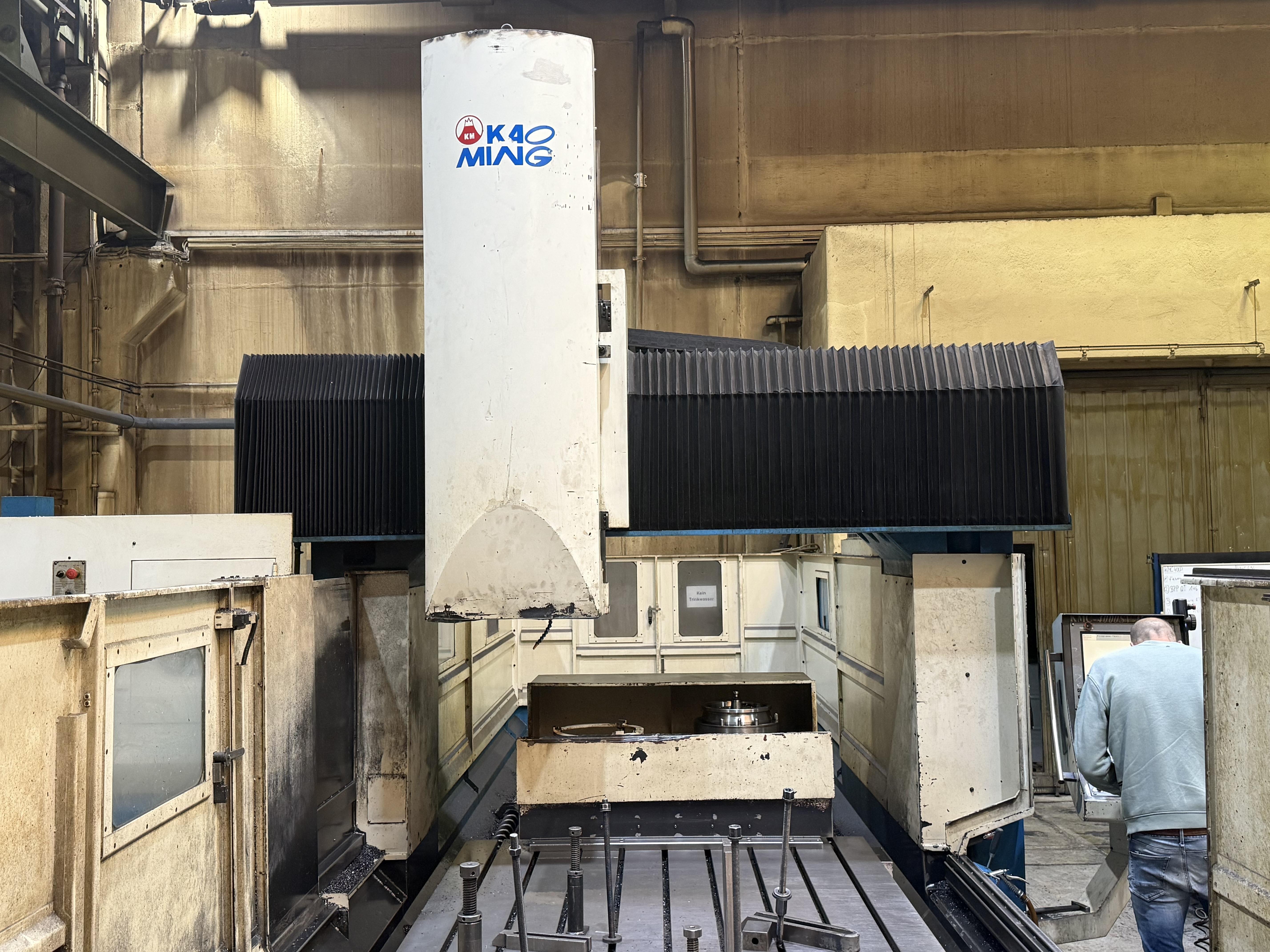

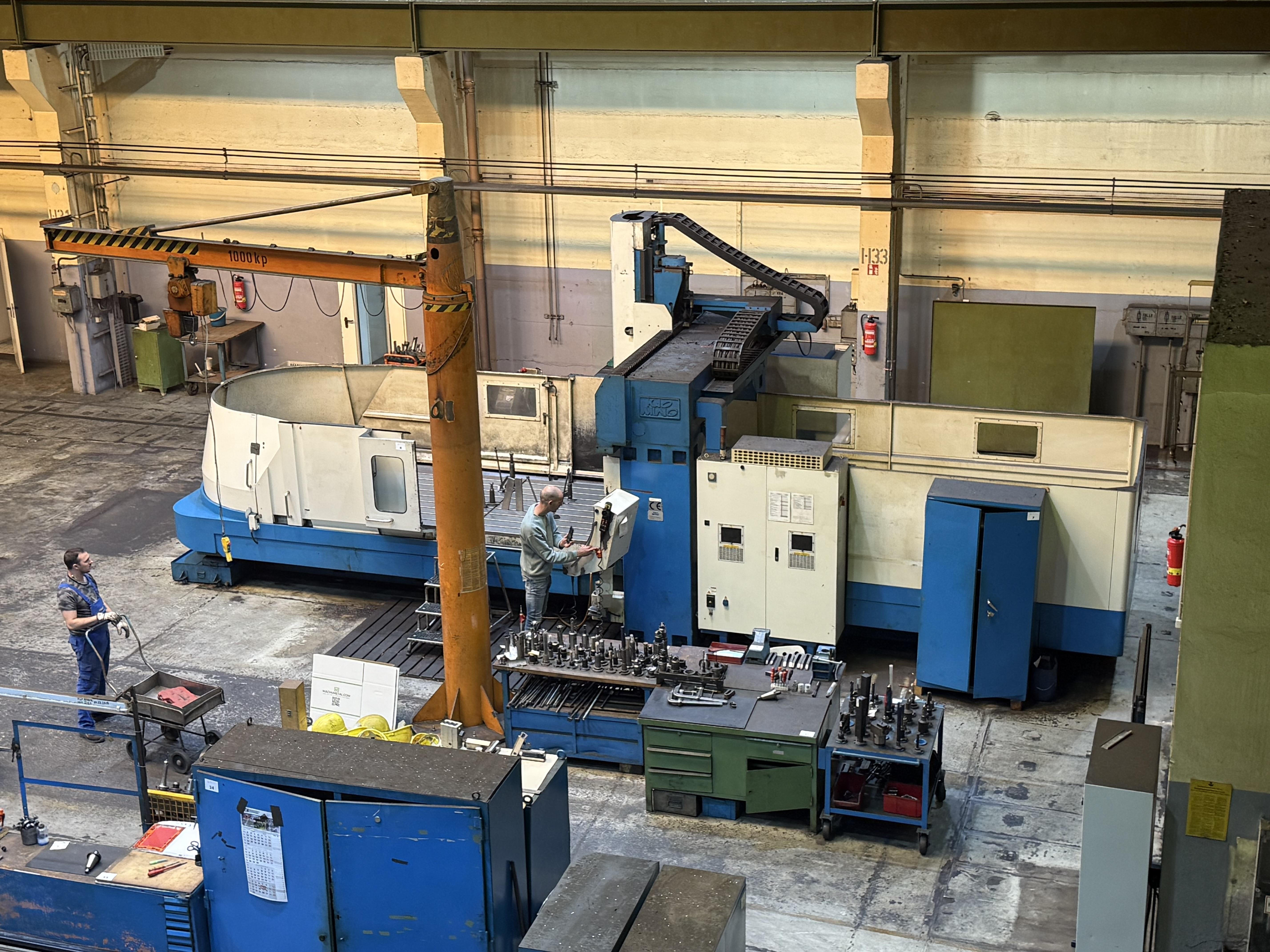

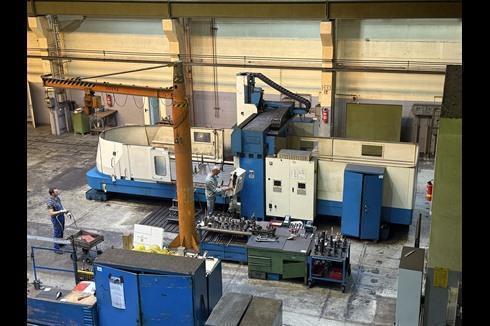

Portal milling machineKAO MING - KMC 4000 SV-H
MACH-ID 9255
Make: KAO MING
Type: KMC 4000 SV-H
Control: HeidenHain iTNC530
Year: 2008

Double guideway two box way construction
Head changer for Multi-Face machining off larger compontents

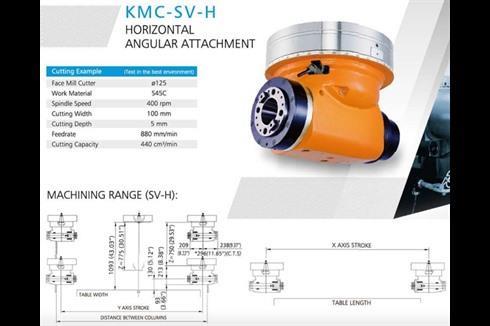

ATC tool changer for Horizontal and vertical milling head swivabel

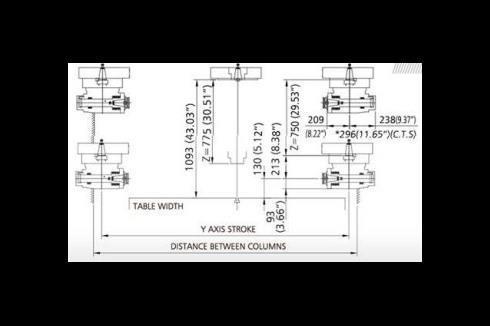

Distance table spindle nose    213 - 1093 mm
Distance table spindle center  130 -  ...mm
Indexing Horizontal head 5 Degrees x 72 positions
HeidenHain iTNC530 with HR410 handwheel
Spindle torq 1018 Nm ISO50
Universal Huron type milling head

X - Travel:            4230mm
Y - Travel:            1950mm
Z - Travel:            750mm
Distance between column:1500mm
Table Length:          4000mm
Table Width:           1250mm
Table load:            11000
Feed rate X-Axis:      12000mm/min.
Feed rate Y-Axis:      15000mm/min.
Feed rate Z-Axis:      12000mm/min.
Spindle Taper:         50ISO/Bt/Mk
Power on spindle:      26kW
Speeds / ranges:       4400Rpm
ATC / revolver:        30
Chip conveyor:         Yes
Coolantsystem:         Yes
Length:                10100mm
Width:                 4500mm
Height:                4250mm
Weight:                30000kg

Dealer: MACH4METAL BV
