Technical details

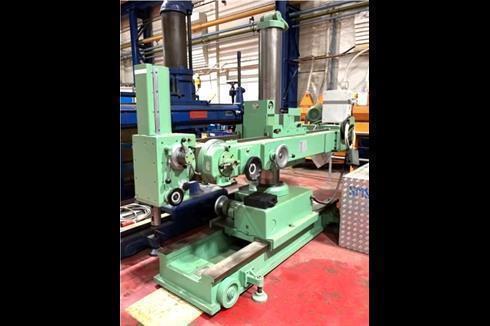

NOVISA (Italian) TUG 60S Portable Universal Radial Arm Drill. Year 1981. Rebuilt 2011

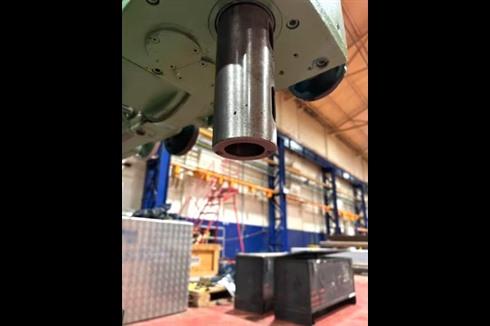

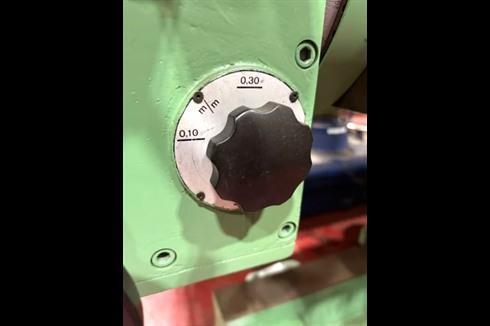

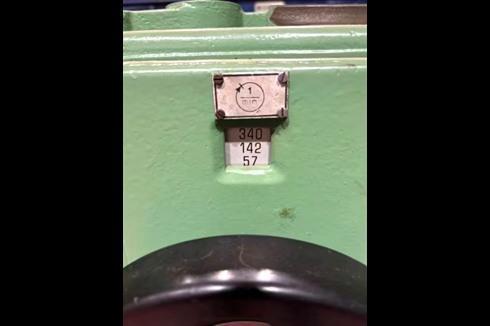

Spindle dia. 60mm. Spindle taper 5MT. Drilling capacity in steel (TS 600 MPa) 60mm. Drilling capacity in Cast Iron steel (TS 250 MPa) 70mm. Tapping capacity in steel (TS 600 MPa) 60mm. Spindle Travel 350mm. Spindle dia. 60mm. Spindle Taper MT5. No. Spindle Speeds 30,45,70,100,155,240,340,515,800rpm. Feeds 0.05,0.1,0.2,0.3mm/rev. Min/ Max Distance Between Spindle Axis & Column Axis 1,000mm/2,120mm. Min/Max Distance Between Spindle Nose & Floor 0mm/1,940mm. Min/Max Distance From Spindle Axis To Floor (Horizontal Spindle) 90mm/2,750mm. Vertical Travel Of Arm 1,030mm. Max Tilting Of Arm Downwards 21°. Max Tilting Of Arm Upwards 9°. Column Travel On Bed 1,500mm. Bed Size 780mm x 2,570mm. With Feet 1,200 x 2,570mm. Head Tilting (90° Up & 90° Down) 180°. Head Rotation 360°. Column Rotation 360°. Column dia. 240mm. Machine Height 2,520mm. Arm Horizontal Rapid Traverse 1,650mm/min. Arm Vertical Rapid Traverse 1,500mm/min. Column Travel On Bed 1,650mm/min. Spindle Motor 5.5kW. Arm Horizontal & Vertical Traverse Motor 2.2kW. Machine serial no. 117753. Year 1981. Machine rebuilt 2011. Machine dimensions L x W x H 2570mm x 780mm x 2520mm high. Approximate Weight 4,800kg.
Dealer: GM MACHINERY LTD
Price request
