Price request
  • BrandNovisa
  • Type/ModelTUG 40S
  • Stock Number30257
  • Year2011
  • WebsiteTUG 40S

Technical details

  • Drilling capacity32 mm
  • Radius0 mm
  • Spindle taper4
  • CNC BrandNo CNC
  • CNC Modelx

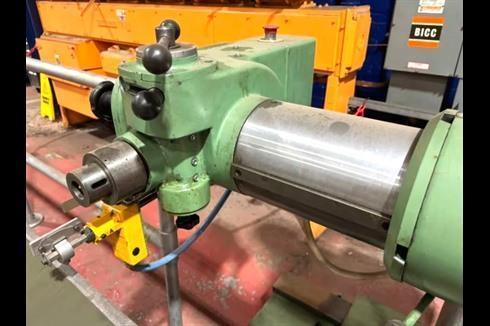

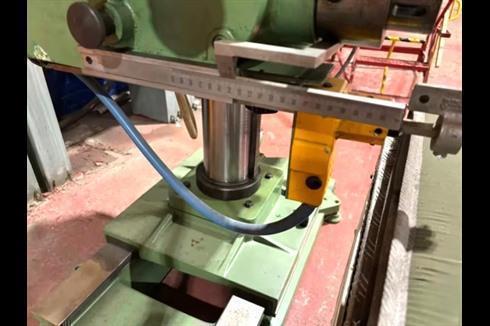

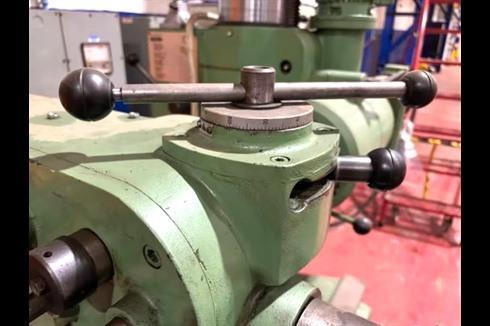

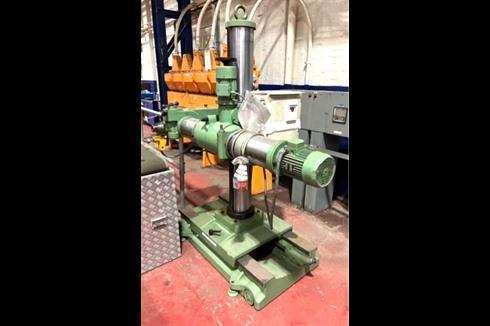

NOVISA (Italian) TUG 40S Portable Universal Radial Arm Drill. Year 2011

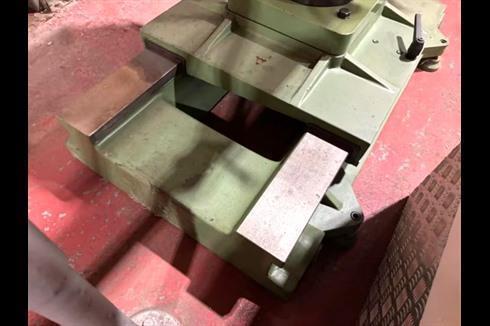

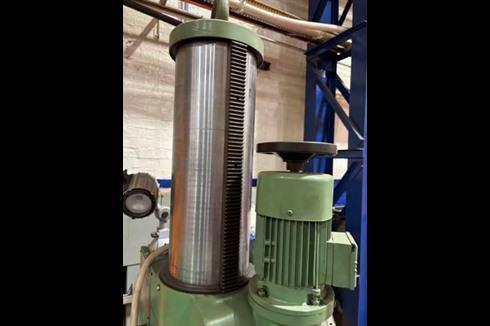

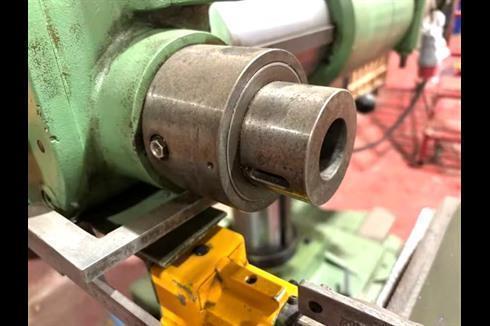

Drilling Capacity In Steel (TS 600 MPa) 32mm dia. Drilling Capacity In Iron Cast (TS 250 MPa) 40mm dia. Spindle Travel 190mm. Spindle dia. 60mm . Spindle Taper MT4. Spindle Speeds 24,48,75,150,380,760,1,200,2,400rpm. Feeds Range 0.09, 0.12, 0.25mm/rev. Min/Max Distance Between Spindle Axis & Column Axis 410mm/1030mm. Min/Max Distance Between Spindle Nose & Floor 100mm/1,300mm. Min/Max Distance From Spindle Axis To Floor (Horizontal Spindle) 560mm/1,570mm. Vertical Travel Of Arm 1,040mm. Column Travel On Bed 600mm. Bed Size 840 x 1,400mm. Head Tilting (90° Up & 90° Down) 180°. Head Rotation 360°. Column Rotation 360°. Column dia.190mm. Machine Height 2,000mm. Arm Vertical Rapid Traverse 1,650mm/min. Machine Serial No. 200711. Year of manufacture 2011.
Machine Dimensions L x W x H 2100mm x 1000mm x 1600mm. Approximate Weight 1200kg.

Dealer: GM MACHINERY LTD
