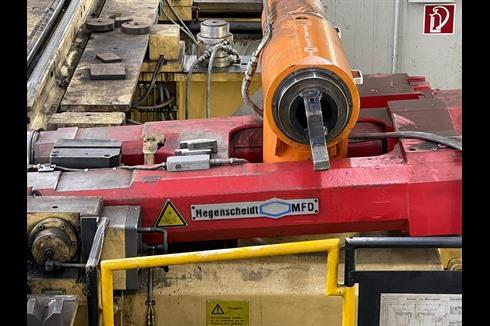

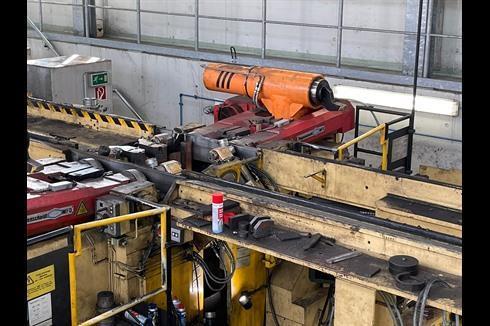

Hegenscheidt-MFD - 106 TD CNC

Technical details

  • Turning diameter1435 mm
  • Turning length0 mm
  • Spindle bore0 mm
  • Motor power0 HP/kW
  • CNC BrandNo CNC
  • CNC Modelx

Fields of application

machining of two wheel sets at the same time
turning of wheel tyre profiles on wheel sets in situ
machining of brake discs on wheel sets in situ
machining of single wheel sets
machining of coupled wheel sets
machining of wheel sets of different gauges on
all mainline railway, metro and tram vehicles



Rail track gauge:  1.435mm
Max. wheel tread Ø:1.400mm
Min. wheel tread Ø:500mm
Number of slides:  2 + 2
Power:             2 x 30 kW
Length:            7.000 mm
Width:             8.000 mm
Height:            2.600 mm
Weight:            32.000 kg

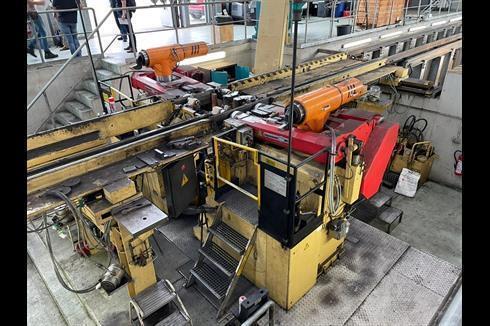

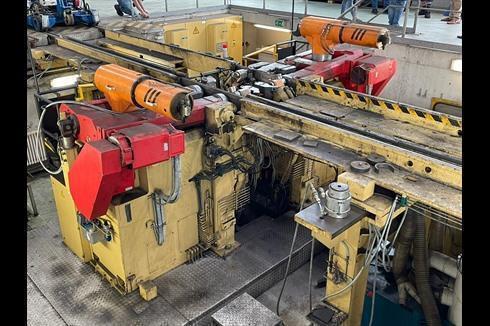

The tandem arrangement allows the machining of two vehicle
mounted wheel sets at the same time by arranging two
underfloor wheel lathes at one track.
this is recommendable if:

desired number of machining operations can not be effected with one machine
the number of wheel sets to be machined per vehicle can not be done within a certain time ( peak hours)
two wheel sets have to be machined to a very similar diameter
