Hyundai - VX 500

• Print
• Add to favorites

• BrandHyundai
• Type/ModelVX 500
• Stock Number9245
• Year2007
• WebsiteVX 500

Technical details

• Table length1200 mm
• Table width500 mm
• Longitudinal X1060 mm
• Cross Y510 mm
• Vertical Z635 mm
• Positions ATC24
• Positions APC1
• CNC BrandFanuc
• CNC Modelx

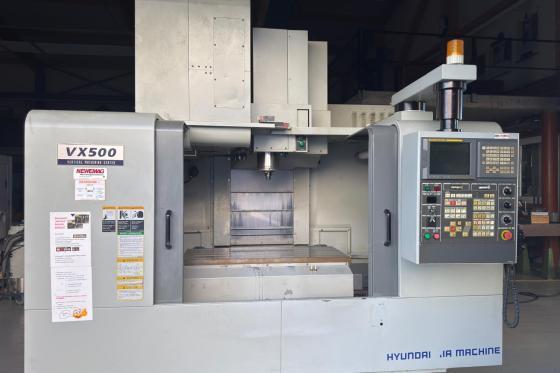

3-axis CNC machine (VMC)KIA Hyundai - VX 500
MACH-ID 9245
Make: KIA Hyundai
Type: VX 500

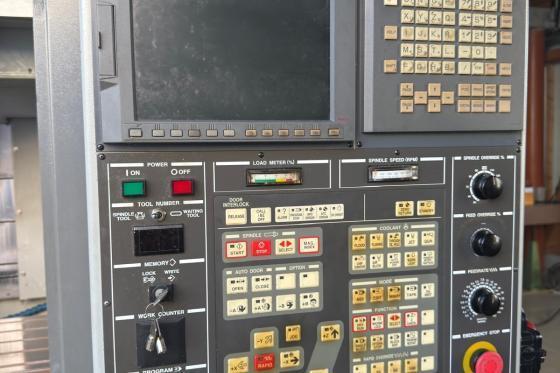

Control: FANUC 21i-MB
Year: 2007

Spindle speed 10.000 Rpm
Coolant tank with IKZ 20 bar
Chip conveyor

X - Travel:                  1060mm
Y - Travel:                  510mm
Z - Travel:                  635mm
Table Length:                1200mm
Table Width:                 500mm
Feed rate X-Axis:            20000mm/min.
Feed rate Y-Axis:            20000mm/min.
Feed rate Z-Axis:            20000mm/min.
Spindle Taper:               40ISO/Bt/Mk
Power on spindle:            15kW
Speeds / ranges:             10000Rpm
ATC / revolver:              24
Coolant through spindle / Bar:20
Number of controlled axis:   3
Chip conveyor:               Yes
Coolantsystem:               Yes
Length:                      2915mm
Width:                       2361mm
Height:                      2800mm
Weight:                      7000kg

Dealer: MACH4METAL BV

Price request
