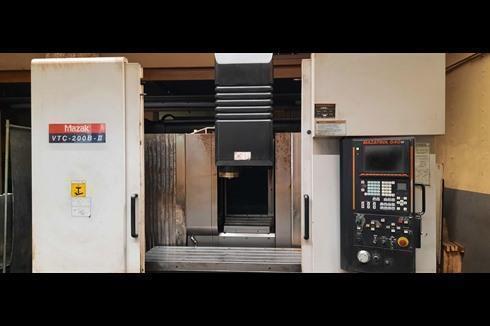

Mazak - VTC 200B-II

• Print
• Add to favorites

• BrandMazak
• Type/ModelVTC 200B-II
• Stock Number9198
• Year2009
• WebsiteVTC 200B-II

Technical details

• Table length1460 mm
• Table width510 mm
• Longitudinal X1120 mm
• Cross Y510 mm
• Vertical Z510 mm
• Positions ATC30
• Positions APC1
• CNC BrandMazatrol
• CNC Model640M

3-axis CNC machine (VMC)MAZAK - VTC 200B-II

Renishaw measuring probe MP-12
IKZ 15 Bar
Interface set
Performabnce software package
Monitoring B prepared not included

X - Travel:                  1120mm
Y - Travel:                  510mm
Z - Travel:                  510mm
Table Length:                1460mm
Table Width:                 510mm
Table load:                  800
Feed rate X-Axis:            36000mm/min.
Feed rate Y-Axis:            36000mm/min.
Feed rate Z-Axis:            36000mm/min.
Spindle Taper:               40ISO/Bt/Mk
Power on spindle:            18.5kW
Speeds / ranges:             12000Rpm
ATC / revolver:              30
Coolant through spindle / Bar:Yes
Number of controlled axis:   3
Chip conveyor:               Yes
Coolantsystem:               Yes
Length:                      3300mm
Width:                       2850mm
Height:                      2800mm
Weight:                      6100kg

Dealer: MACH4METAL BV

Price request
