Mazak - VCE 600

• Print
• Add to favorites

• BrandMazak
• Type/ModelVCE 600
• Stock Number9803
• Year2024
• WebsiteVCE 600

Technical details

• Table length1 mm
• Table width1 mm
• Longitudinal X1 mm
• Cross Y1 mm
• Vertical Z1 mm
• Positions ATC1
• Positions APC1
• CNC BrandMazatrol
• CNC Modelx

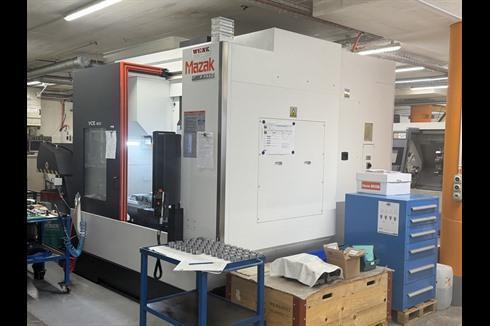

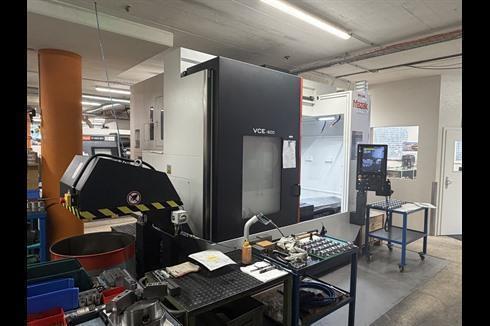

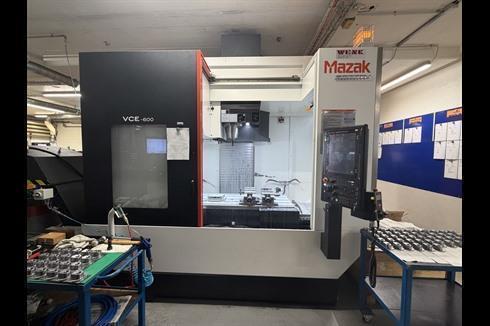

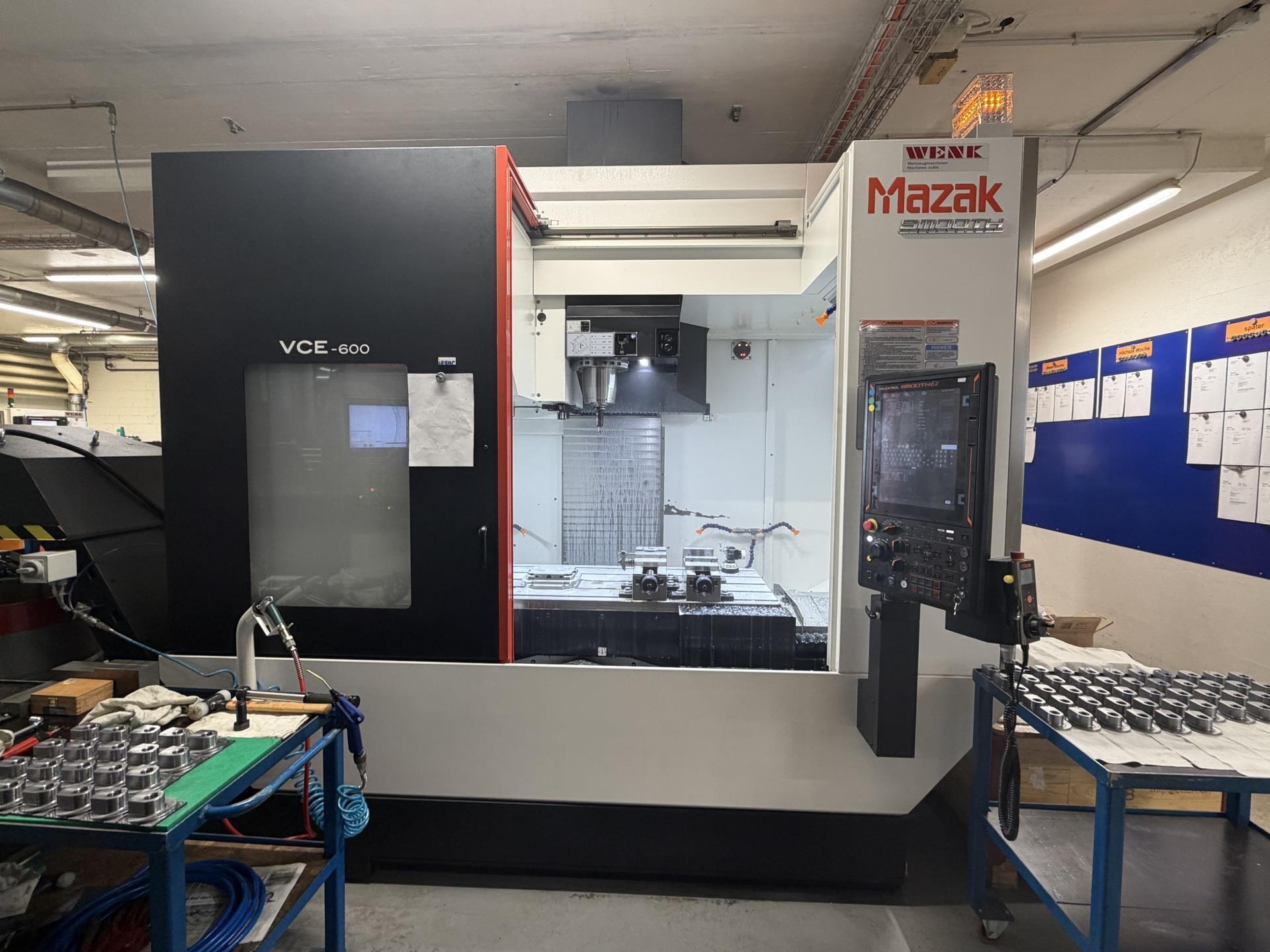

3-axis CNC machine (VMC)MAZAK - VCE-600
MACH-ID 9485
Make: MAZAK
Type: VCE-600

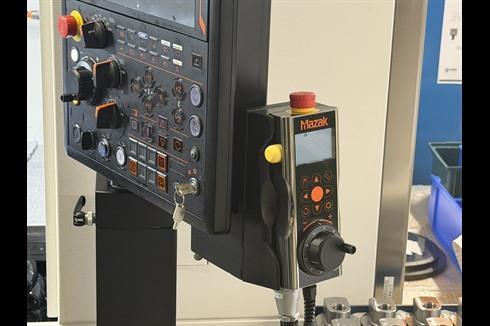

Control: Mazatrol SMOOTHEZ
Year: 2024

Only 250 Spindle Hours

ATC 48 Position

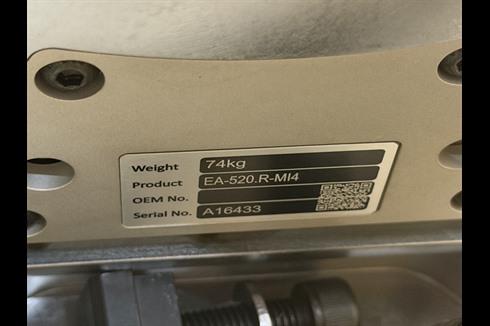

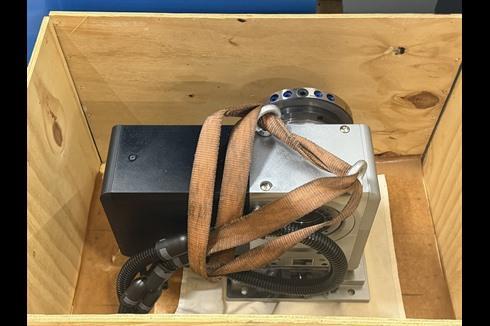

Optional Lehmann EA-520 R-Mi4 4e axis integrated
Optional Lehman Tailstock
Grundfos IKZ 20 Bar
Renishaw 3D Tool probe
Renishaw Length probe
Optional tooling package ca 30 units

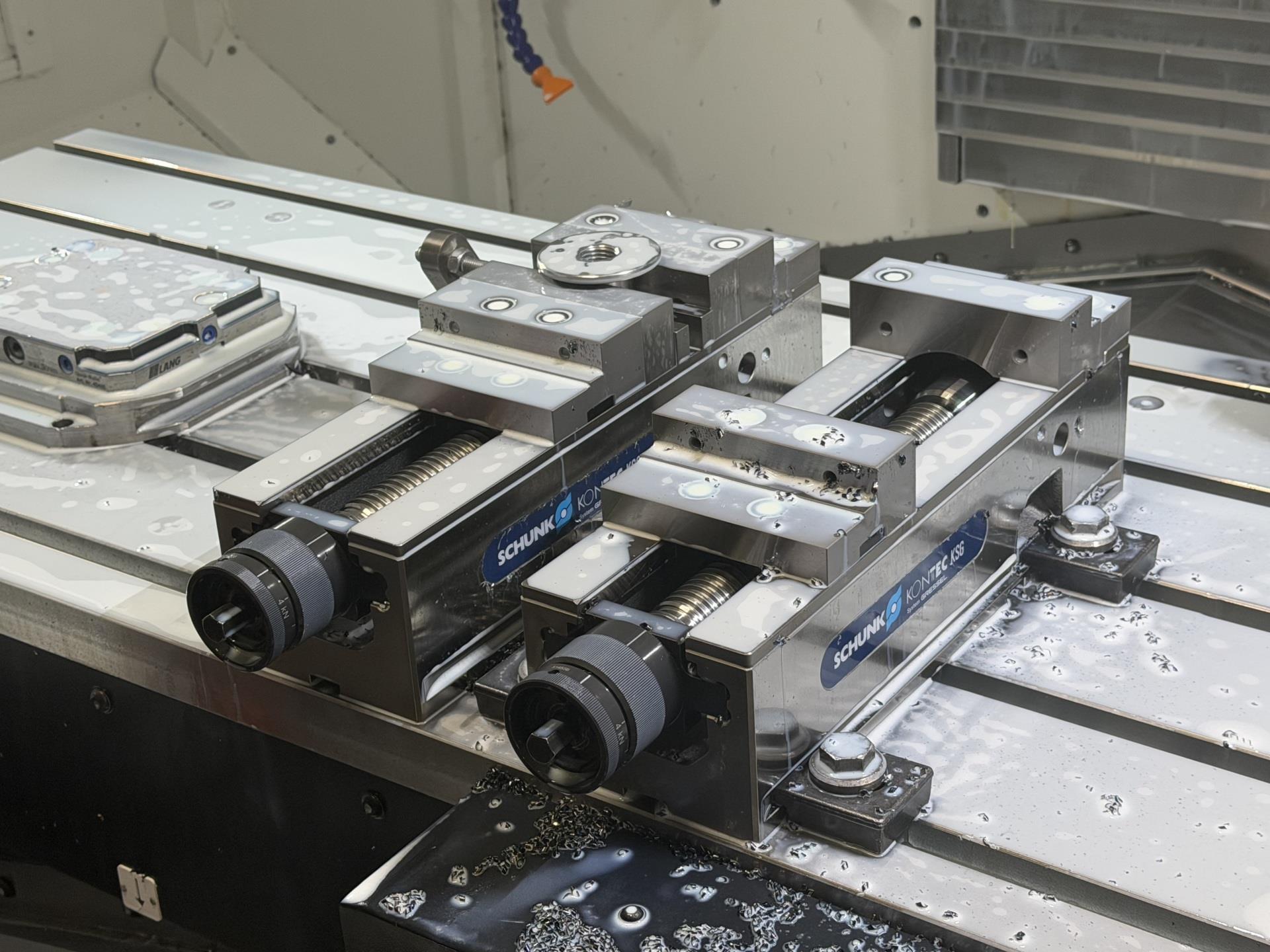

Optional SCHUNK KONTEC KSG Machine vice (4 units)
New EUR 200.000


X - Travel:                  1050mm
Y - Travel:                  600mm
Z - Travel:                  600mm
Table Length:                1300mm
Table Width:                 600mm
Table load:                  1200
Feed rate X-Axis:            36000mm/min.
Feed rate Y-Axis:            36000mm/min.
Feed rate Z-Axis:            36000mm/min.
Spindle Taper:               40ISO/Bt/Mk
Power on spindle:            18.5kW
Speeds / ranges:             12000Rpm
ATC / revolver:              48
Coolant through spindle / Bar:20
Number of controlled axis:   3+1
Chip conveyor:               Yes
Coolantsystem:               Yes
Length:                      3816mm
Width:                       2902mm
Height:                      2938mm
Weight:                      7000kg

Dealer: MACH4METAL BV

Price request
