Syntac - MBV-10

• Print
• Add to favorites

• BrandSyntac
• Type/ModelMBV-10
• Stock Number9113
• Year2013
• WebsiteMBV-10

Technical details

• Table length1200 mm
• Table width600 mm
• Longitudinal X1040 mm
• Cross Y600 mm
• Vertical Z620 mm
• Positions ATC21
• Positions APC1
• CNC BrandFanuc
• CNC Modelx

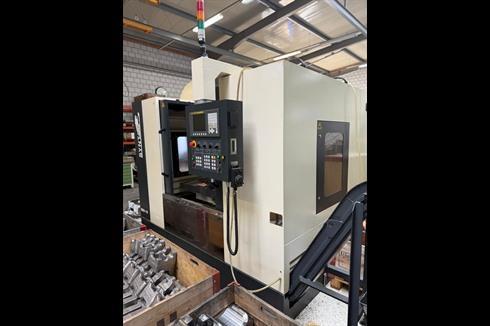

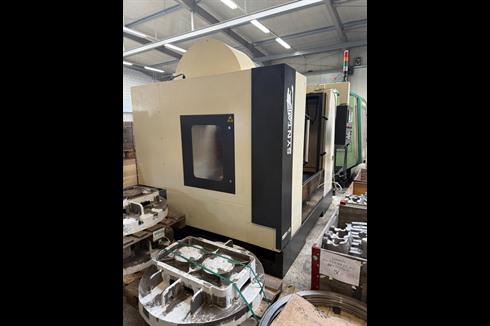

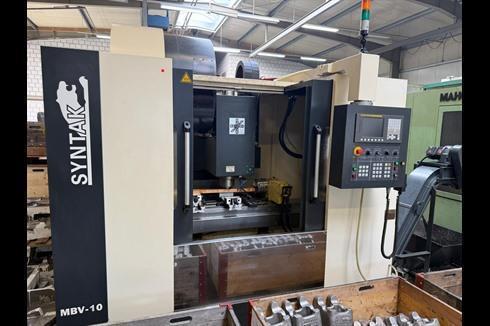

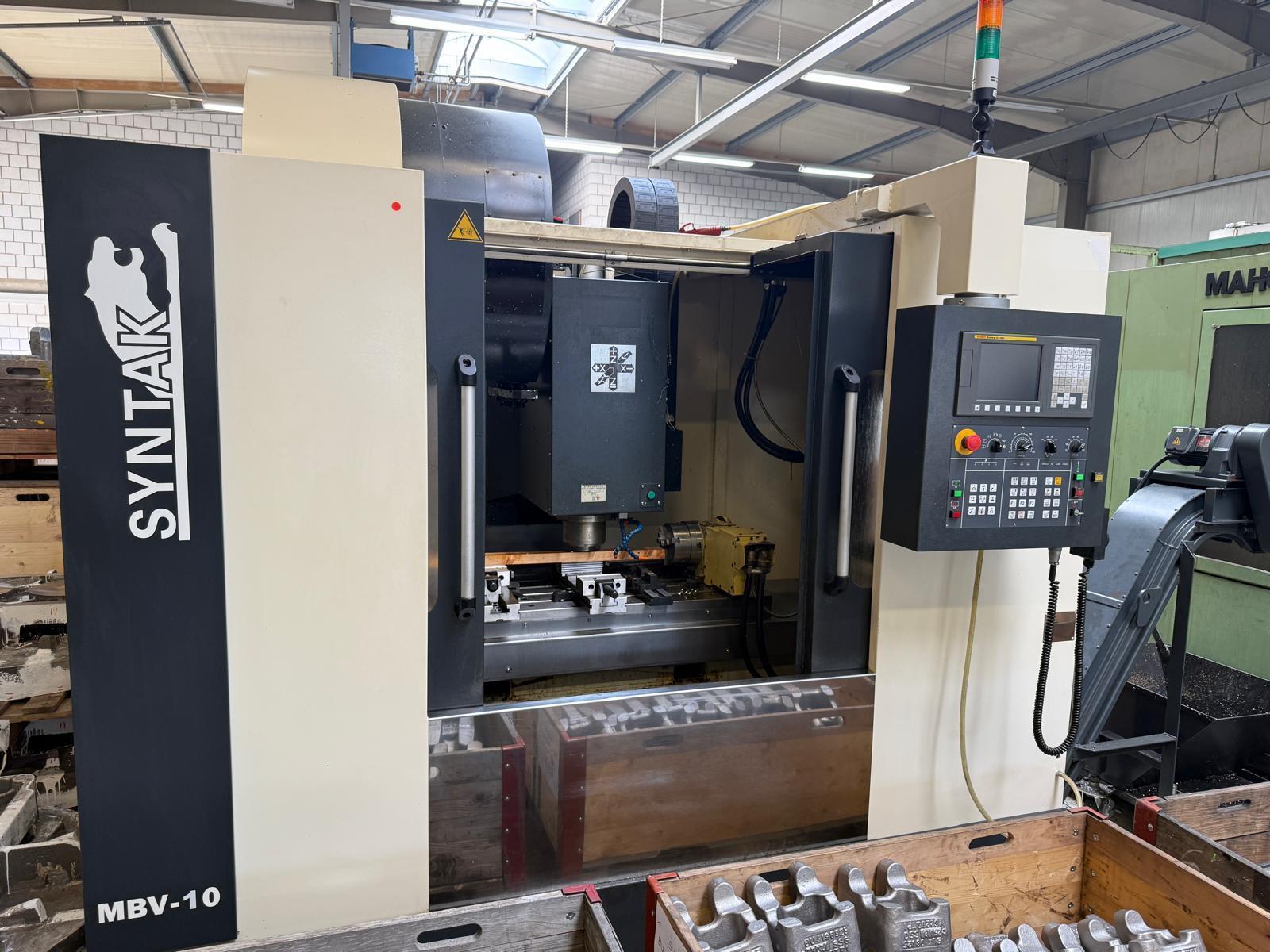

3-axis CNC machine (VMC)SYNTAK - MBV-10
MACH-ID 9113
Make: SYNTAK
Type: MBV-10

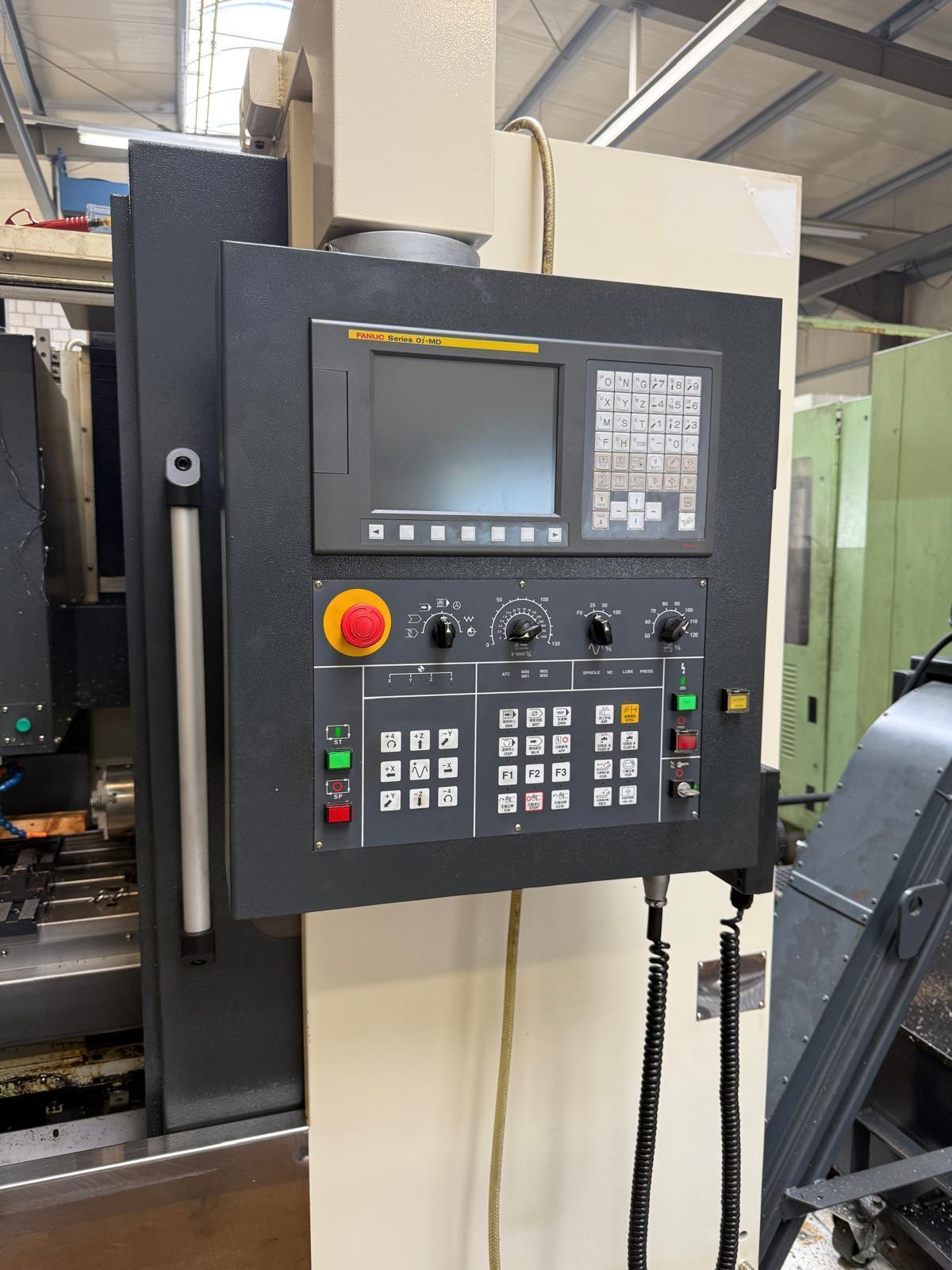

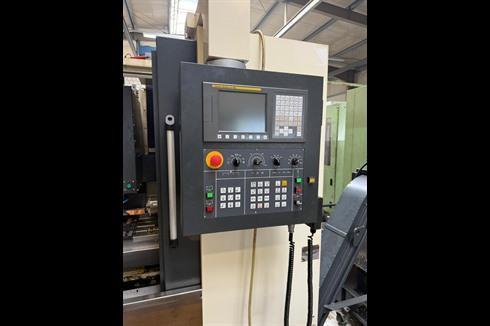

Control: Fanuc Oi-MD
Year: 2013

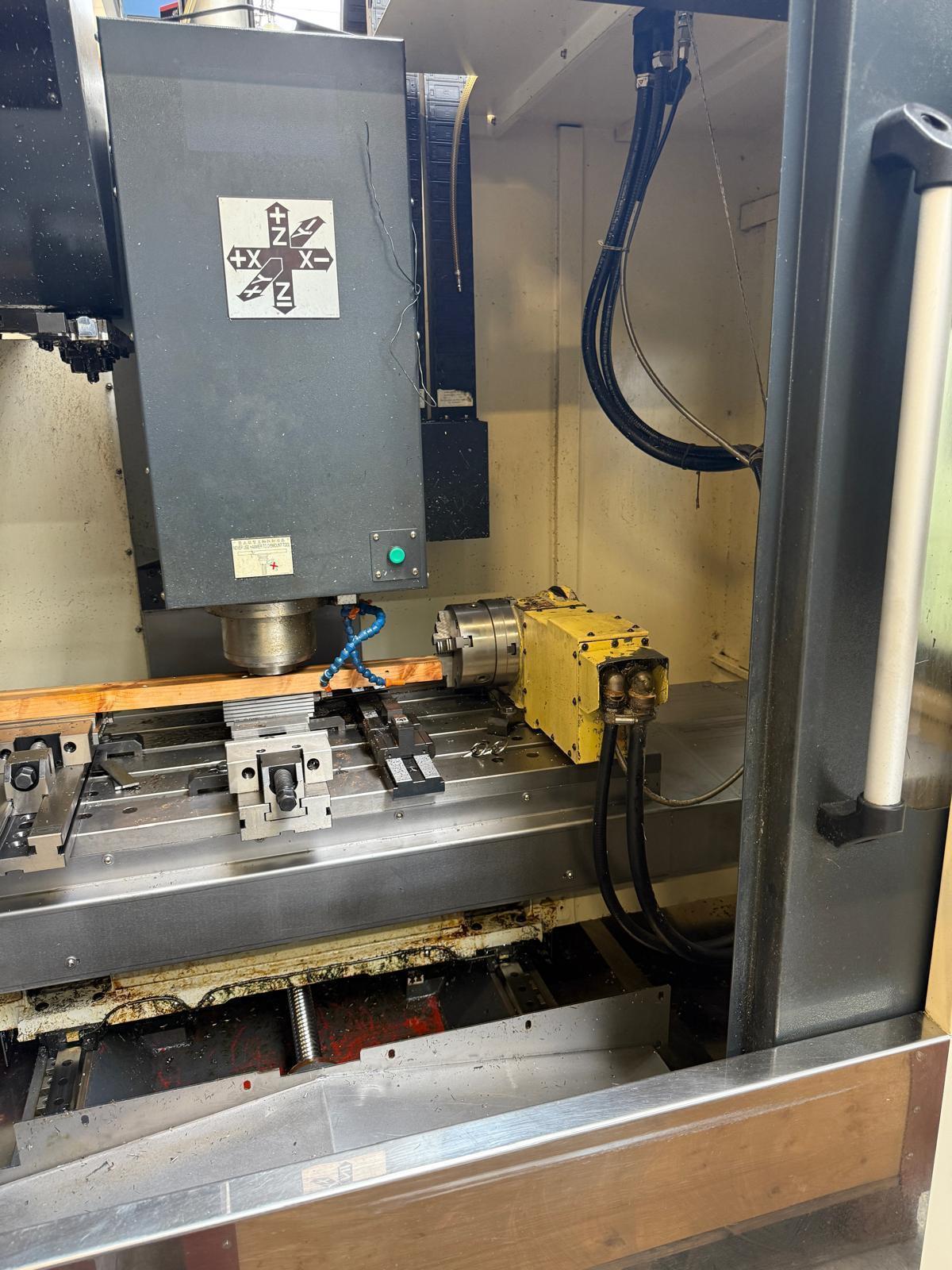

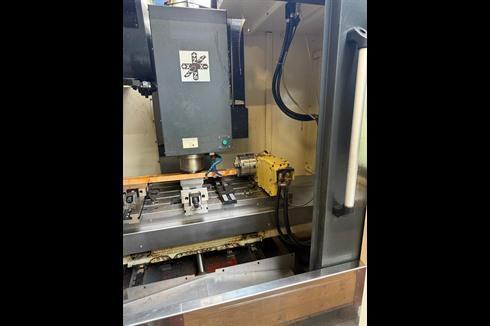

Nikken 4e Axis with tailstock
Very little used
High Pressure coolant 20 Bar
X - Travel:                  1040mm
Y - Travel:                  600mm
Z - Travel:                  620mm
Table Length:                1200mm
Table Width:                 600mm
Table load:                  500
Table  Ø:                    160mm
Feed rate X-Axis:            30000mm/min.
Feed rate Y-Axis:            30000mm/min.
Feed rate Z-Axis:            20000mm/min.
Spindle Taper:               40ISO/Bt/Mk
Power on spindle:            11kW
Speeds / ranges:             10000Rpm
ATC / revolver:              24
Coolant through spindle / Bar:20
Number of controlled axis:   3+1
Chip conveyor:               Yes
Coolantsystem:               Yes
Length:                      2650mm
Width:                       2200mm
Height:                      2600mm
Weight:                      5300kg

Dealer: MACH4METAL BV

Price request
