Price request

Technical details

  • Table length610 mm
  • Table width370 mm
  • Longitudinal X560 mm
  • Cross Y400 mm
  • Vertical Z500 mm
  • Positions ATC16
  • Positions APC0

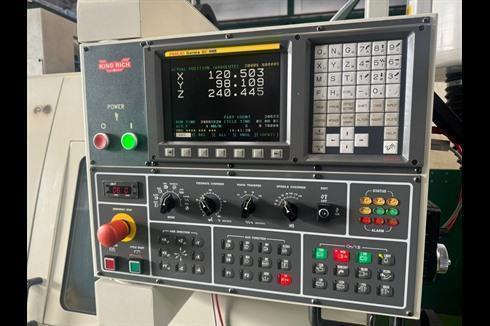

  • CNC BrandFanuc
  • CNC Model0i-MB

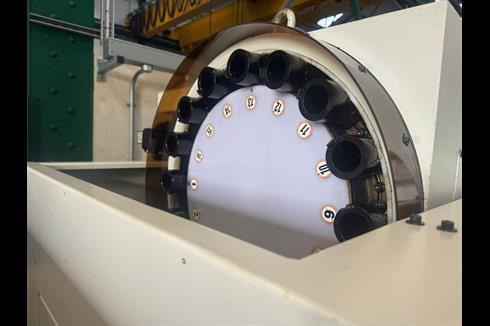

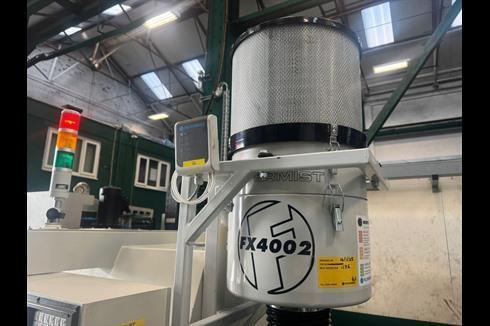

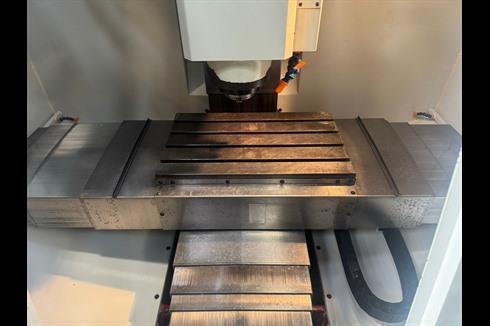

Table size 610 x 370mm. T slot size 16mm. Max loading capacity 320Kg. Travels X/Y/Z 560/400/500mm. Distance from spindle nose to working table surface 100 – 600mm. Distance from spindle centre to main column 440mm. Spindle taper BT40. Spindle Speed 60 – 8000RPM. Feed rate X/Y/Z 1 – 10000mm/min. Rapid traverse rate X/Y/Z 20000mm/min. Tool magazine capacity 16. Max tool weight 8Kg. Spindle drive motor 10HP. Coolant 1/2Hp. Complete with FX4002 Filtermist
Dimensions 2400 x 1900 x 2450mm. Approx weight 2700Kg.


Dealer: GM MACHINERY LTD
