Price request

Technical details

  • Table length2900 mm
  • Table width750 mm
  • Longitudinal X2340 mm
  • Cross Y800 mm
  • Vertical Z600 mm
  • Positions ATC40
  • Positions APC1
  • CNC BrandHeidenhain
  • CNC Modelx

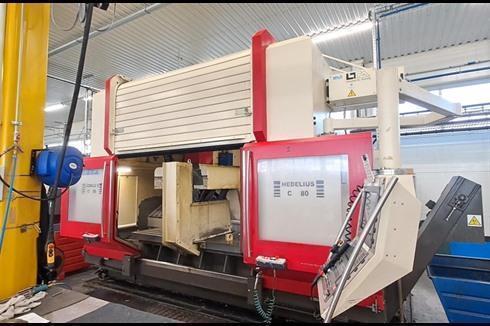

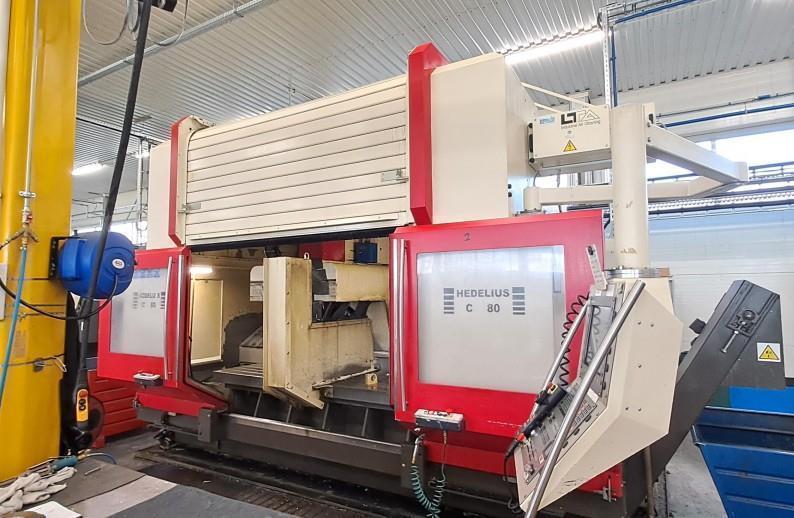

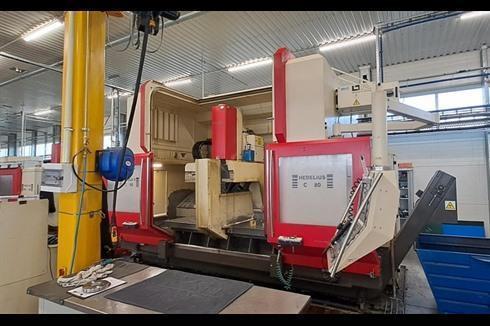

3-axis CNC machine (VMC)Hedelius - C80/2300/8
MACH-ID 9343

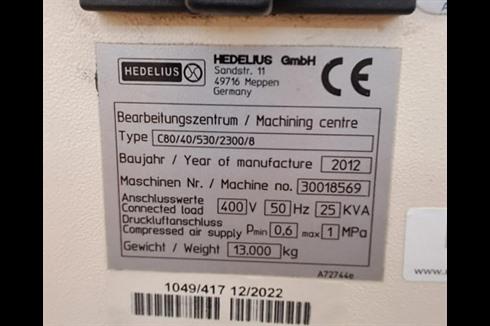

Make: Hedelius
Type: C80/2300/8

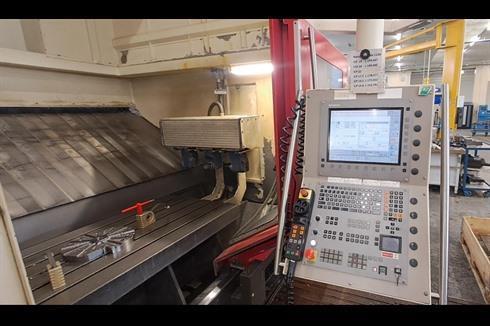

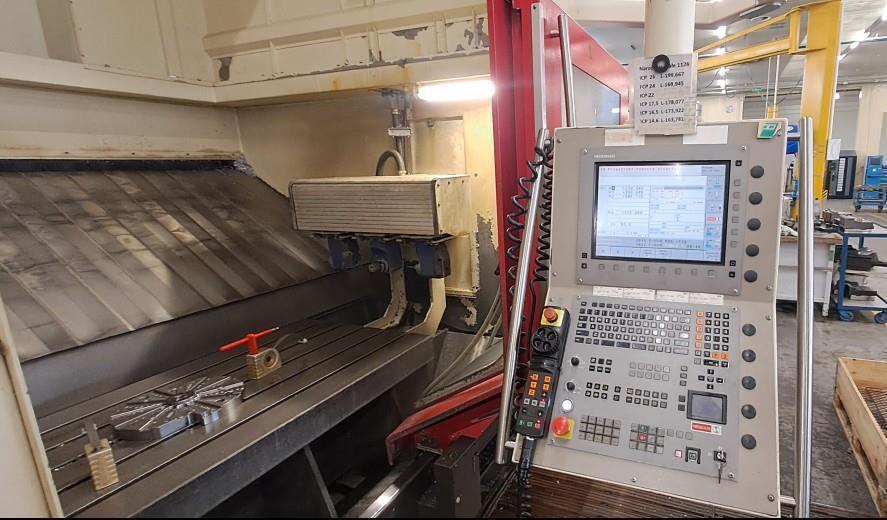

Control: HeidenHain iTNC530
Year: 2012

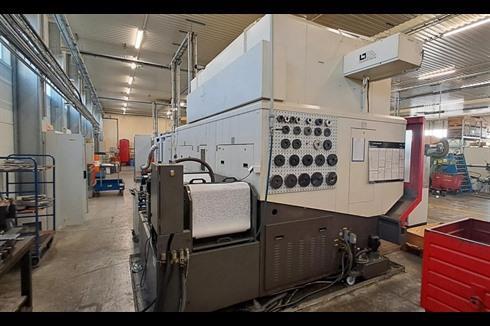

Full enclosure with vacuum extraction
Roller shutter door for crane loading

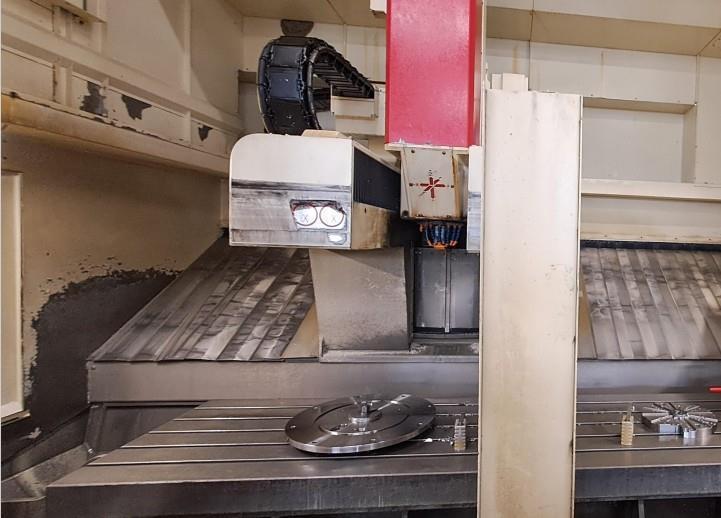

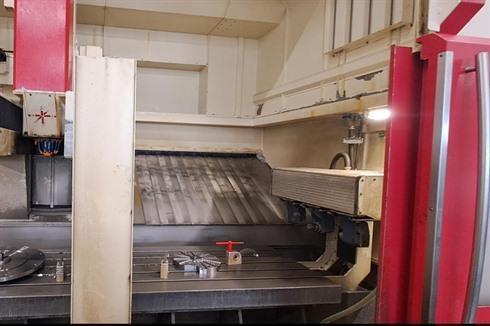

Pick-Up station for 3 angled milling head
Face machining possible to generously sized areas
Distance spil to table 140 - 740 mm
Pendel screen for splitted manufacturing
Coolant tank filtration 350 Liter
HR410 Handwheel HeidenHain
Double LTA Oil Mist
 Flexible, high-precision machining of large and complex parts, with reliable German build quality.


X - Travel:                  2340mm
Y - Travel:                  800mm
Z - Travel:                  600mm
Table Length:                2900mm
Table Width:                 750mm
Table load:                  2800
Feed rate X-Axis:            40000mm/min.
Feed rate Y-Axis:            40000mm/min.
Feed rate Z-Axis:            40000mm/min.
Spindle Taper:               40ISO/Bt/Mk
Power on spindle:            27kW
Speeds / ranges:             8000Rpm
ATC / revolver:              40
Coolant through spindle / Bar:20
Number of controlled axis:   3
Chip conveyor:               Yes
Coolantsystem:               Yes
Length:                      6200mm
Width:                       3500mm
Height:                      3600mm
Weight:                      13000kg

Dealer: MACH4METAL BV
