Price request
  • BrandMazak
  • Type/ModelAJV 35/60
  • Stock Number21614
  • Year1995
  • Price€ 000
  • WebsiteAJV 35/60

Technical details

  • Table length mm
  • Table width mm
  • Longitudinal X mm
  • Cross Y mm
  • Vertical Z mm
  • Positions ATC
  • Positions APC
  • CNC Brand
  • CNC Model

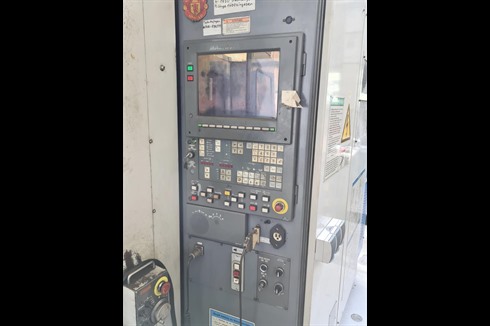

Control: MAZATROL M32
Technical data
Number of axis total: 3
Table length: 1740 mm
Table width: 750 mm
Table load max.: 2500 kg
Longitudinal travel (X-axis): 1500 mm
Transversal travel (y-axis): 800 mm
Vertical travel (z axis): 508 mm
Tool magazine number of tools: 30
Tool diameter max.: 125 mm
Diameter with free adjacent pockets: 190 mm
Tool lenght: 300 mm
Max. tool-weight: 15 kg
Spindle nose: ISO: 50
Distance spindle nose to table: 200 - 708 mm
Spindle speeds:
stepless
from: 22 rpm
up to: 3150 rpm
Rapid traverse: long.: 24 m/min
Rapid traverse: transversal: 24 m/min
Rapid traverse: vertical: 18 m/min
Voltage 50 Hz 3x: 380 Volt
Spindle motor: 26 / 22 kW
Total power required: 52.3 kVA
Machine's weight about: 11000 kg
Overall dimensions machine:
Length: 4652 mm
Width: 3000 mm
Height: 3470 mm

Dealer: MULLER MACHINES SA
