Price request
  • BrandSecmu
  • Type/ModelSISTEMA 8-4
  • Stock NumberSISTEMA-8-4
  • Year1987

Technical details

  • Pallet length800 mm
  • Pallet width800 mm
  • Longitudinal X1500 mm
  • Cross Y1300 mm
  • Vertical Z1100 mm

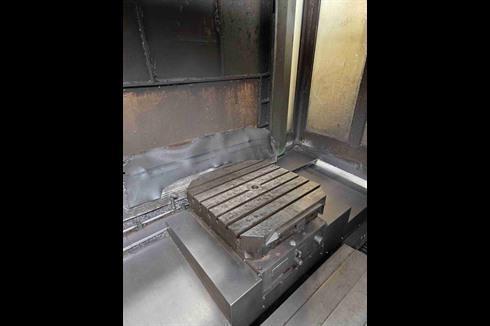

  • Number of pallets5
  • Positions ATC96
  • CNC BrandHeidenhain
  • CNC ModelTNC 530

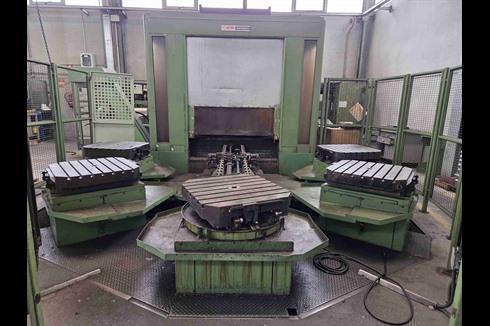

N. 5 PALLETS 800 x 800  MM.
MAX. WEIGHT ON PALLET 3.500  KG.
TRANSVERSAL TRAVEL (X) 1.500  MM.
LONGITUDINAL TRAVEL (W) 1.300  MM.
VERTICAL TRAVEL (Y) 1.100  MM.
INDEXED TABLE (B) 360.000

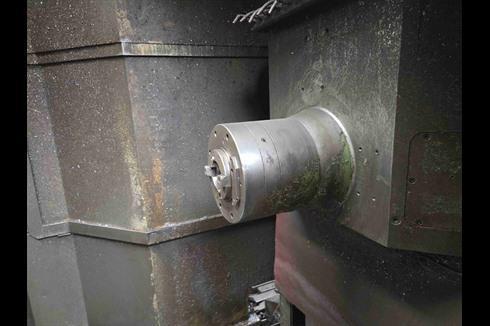

SPINDLE TAPER  ISO 50
SPINDLE SPEEDS 20 ÷ 4.000  RPM.
SPINDLE MOTOR POWER 30  KW.
WORKING FEEDS (X; W; Y) 10 ÷ 15.000  MM/MIN.

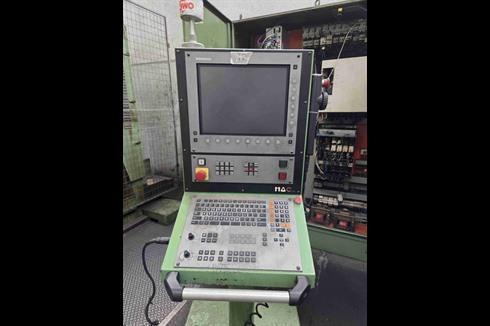

CNC HEIDENHAIN TNC 530
BUILT/RETROFITTED IN 1987/2007
COMPLETE WITH:
- 96 SEATS ATC
- CHIPCONVEYOR
- SAFETY PROTECTIONS

Dealer: NUOVA LOMBARMET SPA
