Technical details
Brand Matsuura
Machine no F721
Type FX-10
CNC Brand Heidenhain
CNC Type iTNC 530
Year of make 1994 / 2015
Table length 2.150 mm
Table width 1.100 mm
Number of pallets 2
X 2.040 mm
Y 1.020 mm
Z 400 mm
Clamping option 4th axis 100 - 1.000 mm

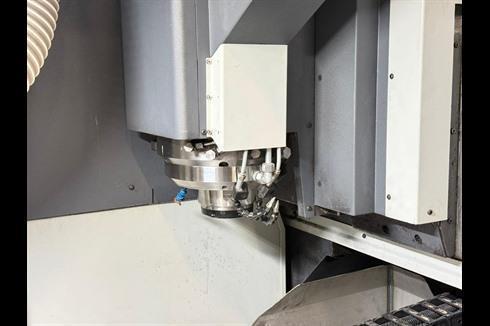

Spindle taper HSK A 63
rapid 40 mm/min
Speed minimum 10 RPM
Speed maximum 24.000 RPM
Maximum table load 3.000 kg
Positions in tool magazine 30
Power on the spindle 16 / 24 kW
Portal
Machine weight 30.000 kg

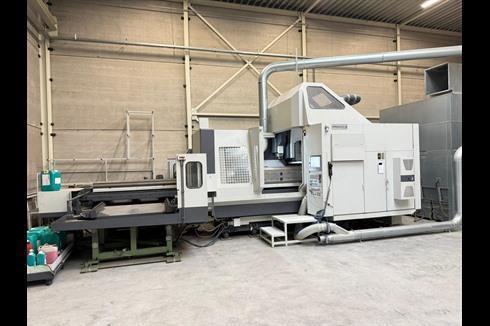

The Matsuura FX-10 was completely overhauled in 2015.

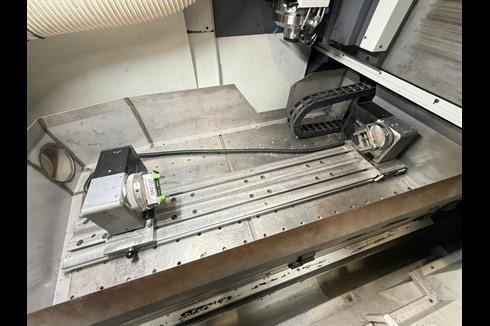

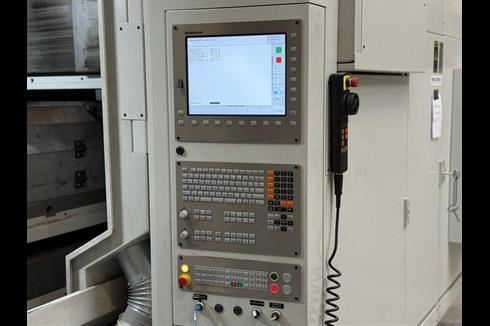

The machine is equipped with a Heidenhain iTNC 530 control, including a handwheel and a 4th axis with 360° rotation.

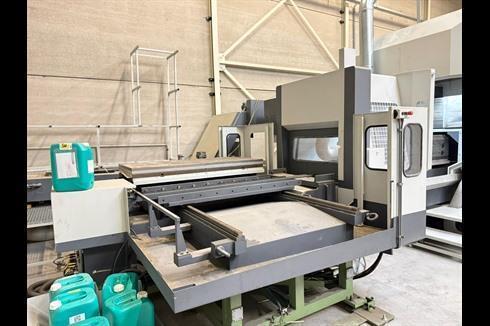

It also features a pallet changer system, a 40-position tool magazine, and an extraction unit.
The machine has been used for wood machining, but is also suitable for machining plastics, aluminium, and steel.
All original documentation is included.
Operating Hours
• Control on: 3,837 hours
• Machine on: 3,205 hours
• Program active: 1,230 hours
• Spindle hours: 969 hours
Dealer: A JANSEN MACHINEHANDEL BV
Price request
