Technical details

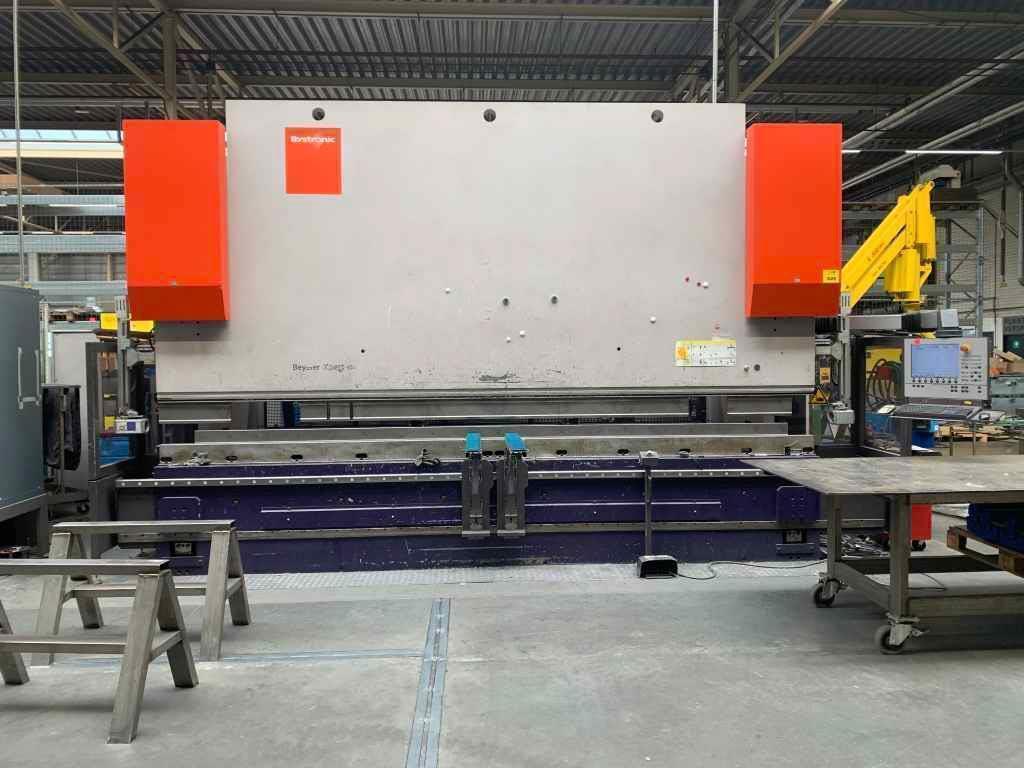

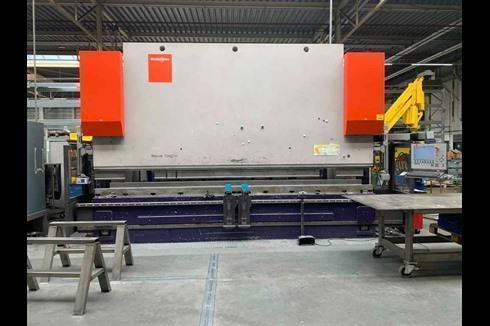

Press brakeBYSTRONIC - Xpert 400
MACH-ID 9798
Make: BYSTRONIC
Type: Xpert 400
Control: MMC-Bend
Year: 2010

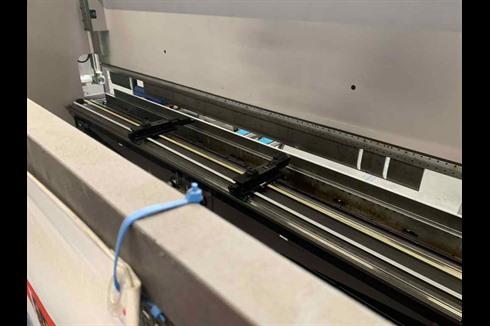

HA4 backgauge X, R, Z1 and Z2

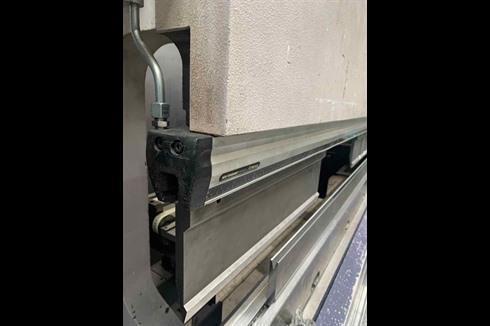

WILA NewStandard Top Tool clamping

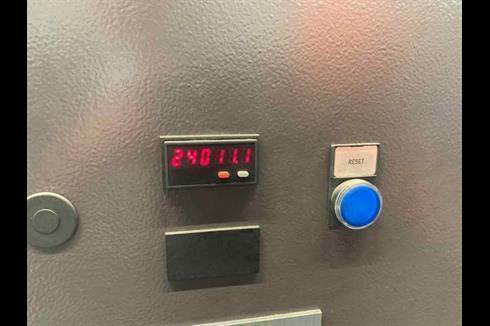

Power on Hours 26.000 H

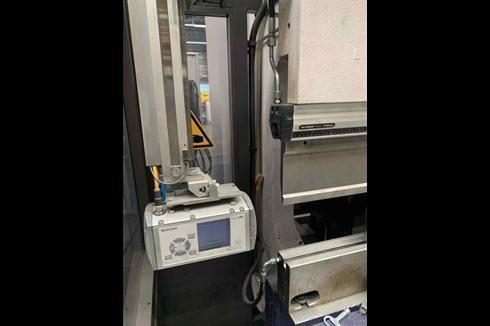

PILZ Laser safe
2 x Arm on front 1000 mm
Max. bending length: 5100mm
Distance between column: 4600mm
Max. pressing force: 400T
Dis. Beam - Table: 650mm
Beam stroke: 365mm

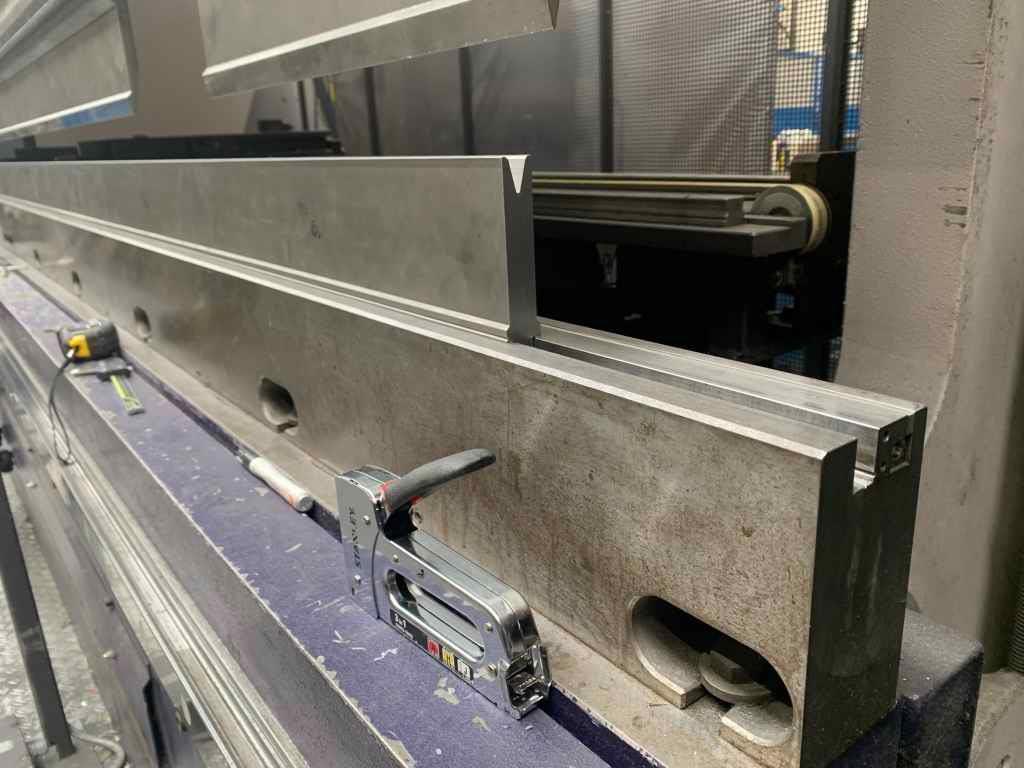

Table Width: 280mm
Troth beam: 410mm
Approch speed: 120mm/min.
Working speed: 9mm/min.
Return speed: 90mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis: Y1, Y2, X, R, Z1, Z2

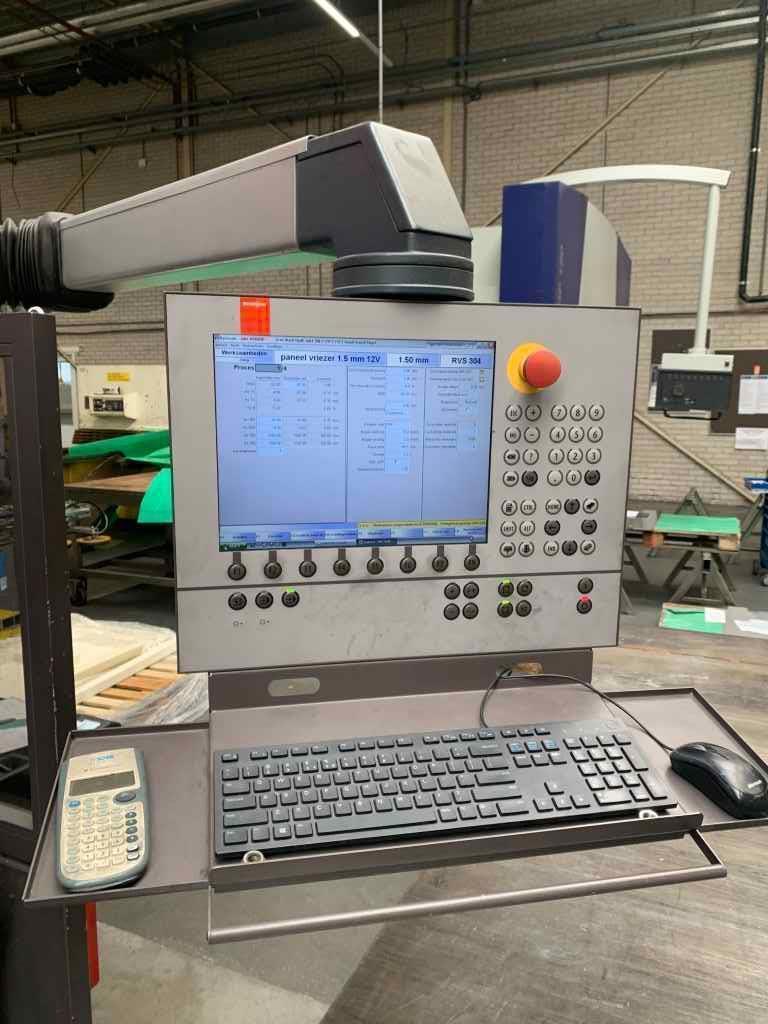

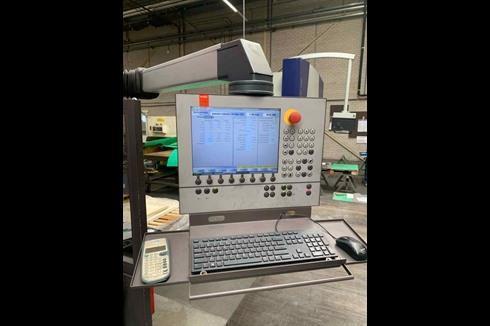

Control: MMC BYBEND 7.7.0.0
Crowning: Yes
Hydraulic toolclamping: Wila New Standard
Power: 34kW
Length: 6130mm
Width: 2295mm
Height: 3680mm
Weight: 36700kg
Dealer: MACH4METAL BV
Price request
