Trumpf - V230

• Print
• Add to favorites

• BrandTrumpf
• Type/ModelV230
• Stock Number9873
• Year1999
• WebsiteV230

Technical details

• Capacity230 t
• Folding length3060 mm
• CNC BrandDelem
• CNC Modelx

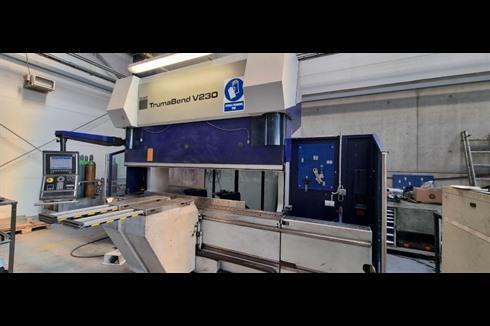

Press brakeTRUMPF - V230
MACH-ID 9873
Make: TRUMPF
Type: V230
Control: Delem DA65
YOP: 1999

CNC Crowning
Hydraulic MODUFIX Tool clamping
Hydraulic lower tool clamping
CNC Finger Backgauge Z1 and Z2
6 Axis backgauge X1/X2, R1/R2 and Z1/Z2
Network card BNC-with RJ-45 Connector
ToPs 600 Software
Set Tooling

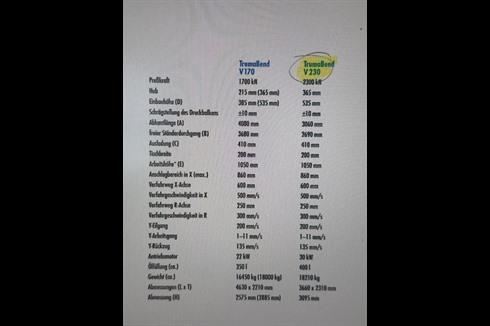

Max. bending length:        3060mm
Distance between column:    2690mm
Max. pressing force:        230T
Dis. Beam - Table:          535mm
Beam stroke:                365mm
Table Width:                200mm
Troth beam:                 410mm
Approch speed:              200mm/min.
Working speed:              11mm/min.
Return speed:               135mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis:  9
Crowning:                   yes
Hydraulic toolclamping:     yes
Power:                      30kW

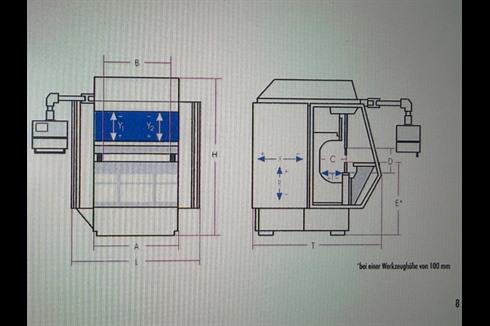

Length:                     2310mm
Width:                      3660mm
Height:                     3095mm
Weight:                     18209kg

Dealer: MACH4METAL BV

Price request
