Technical details

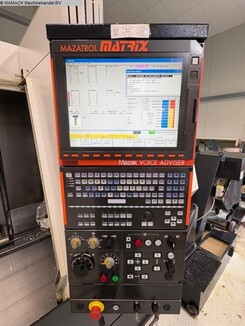

Control: Mazatrol Matrix
Turning diameter: 660 mm
Turning length: 995 mm
Spindle bore diameter: 65 mm
Spindle nose: A2-6
Spindle nose sub spindle: A2-6
Turning speed: 35 - 5000 1/min
Turning speed sub spindle: 35 - 5000 1/min
Milling head speed: 15 - 12000 1/min
Movement X-axis: 580 mm
Movement Y-axis: 160 mm
Movement Z-axis: 1045 mm
B-Axis travel: 225 °
C-Axis indexing: 00001 °
Tool Taper: Capto C6
Tools in tool magazine: 40
Length: 3820 mm
Width: 2348 mm
Height: 2597 mm
Weight: 9570 kg
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Dealer: MAMACH MACHINEHANDEL BV
Price request
