Gurutzpe - GLX 16

Technical details

  • Turning diameter1600 mm
  • Center distance7000 mm
  • Spindle bore110 mm
  • Numbers of bed guide ways2
  • Weight between centres maximum15000 kg
  • CNC BrandSPC
  • CNC Modelx

CNC latheGurutzpe - GLX 16
MACH-ID 8505
Make: Gurutzpe
Type: GLX 16
Control: Siemens 840D Powerline
Year: 2016

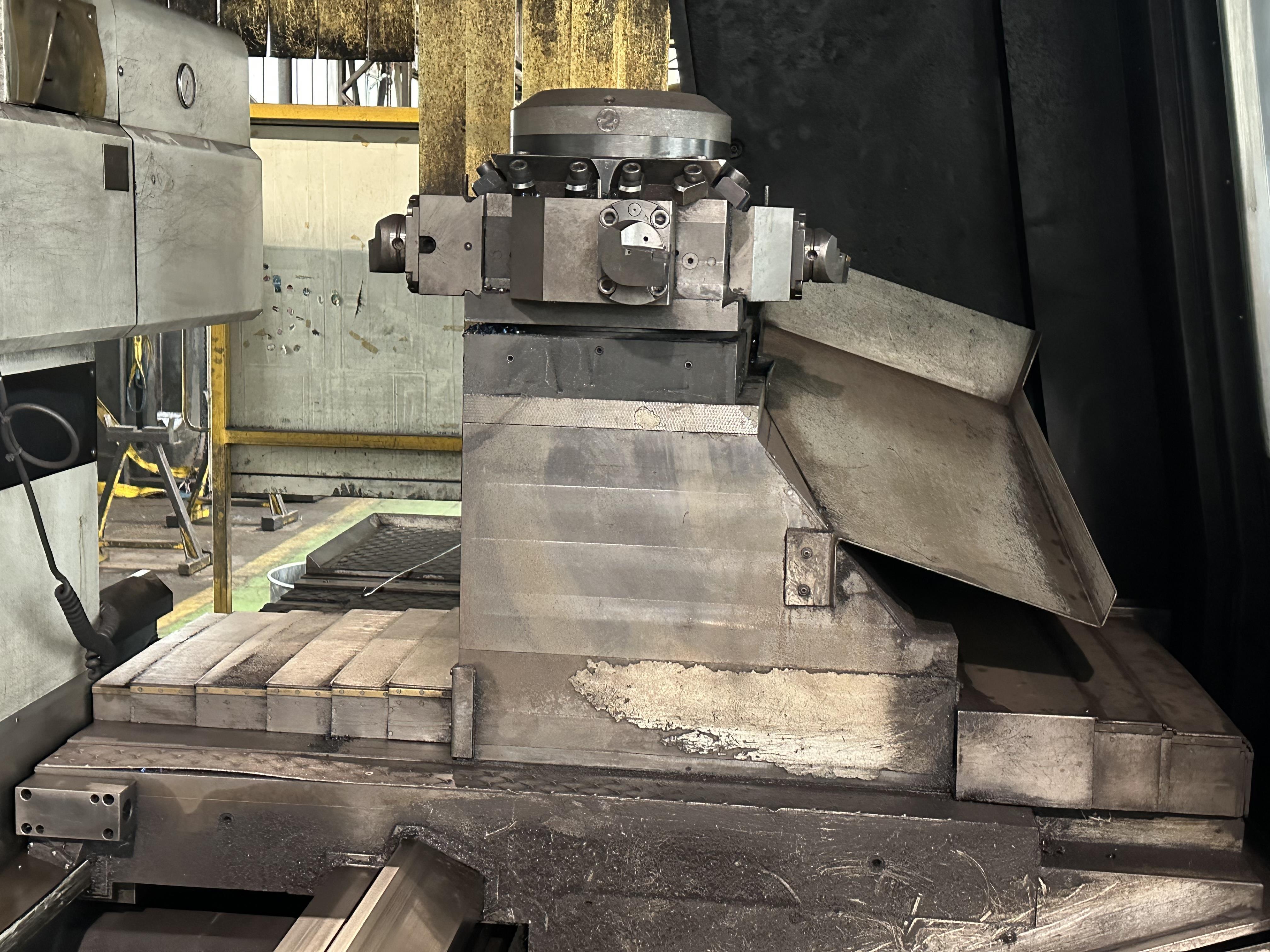

Sauter 4 positions revolver
Motorized tailstock
2 C-Type steady rest
Work load not supported 15 Ton
High pressure coolant with filter
Spindle nose A-20
Torq 24000 Nm
Chip conveyor

DBC Turning Length:      7000mm
Swing over bed Ø:        1600mm
Swing over cross slide Ø:1300mm
Spindle bore:            110mm
Spindle power:           88kW
Bed width:               1100mm
Tailstock spindle Ø:     220Ø
Speeds / ranges:         500Rpm
Length:                  13500mm
Width:                   3500mm
Height:                  3100mm
Weight:                  35000kg


Price request
