Edwards Pearson - V13/3000

Technical details

  • Sheet thickness13,00 mm
  • Sheet width3080 mm
  • Depth rear gauge1000 mm

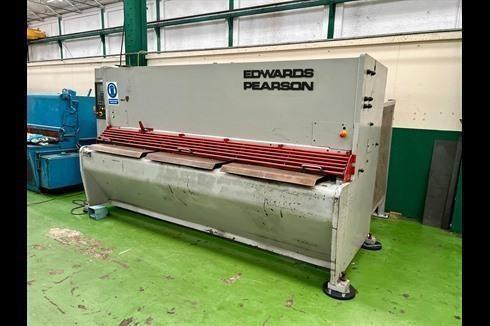

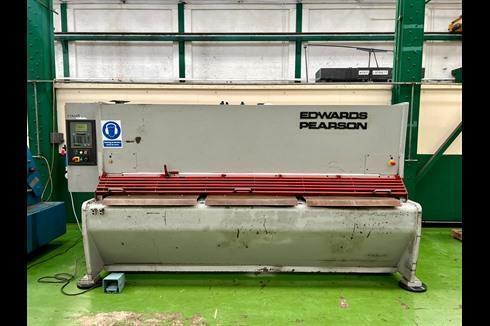

EDWARDS PEARSON Model V13/3000 Hydraulic Guillotine with Cybelec DNC60 NC Backgauge

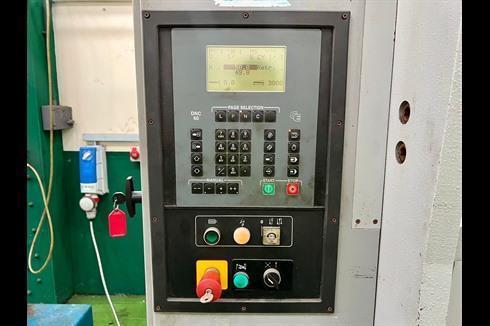

Capacity in Mild Steel 13mm. Capacity in Stainless Steel 10mm. Capacity in Aluminum 16mm. Maximum cutting length 3080mm. Top blade rake angle 0°30’/2°55’. Backgauge Length 5/1000. No.of clamping jacks 14. Backgauge speed 200mm/sec. Hydraulic oil capacity 220 litres. Main motor 18 kW. Squaring arm length 1500mm Support arms/lengths 2 x 1500mm. Cybelec DNC60 NC Backgauge.
Machine dimensions L x W x H 3720mm x 3531mm x 1880mm. Approximate weight 10,250 kg

Dealer: GM MACHINERY LTD

GM MACHINERY LTD
Price request
