Technical details
grinding diameter: 250350450 mm
grinding length: 1500 mm
centre height: 125175225 mm
grinding wheel diameter: 400 mm
grinding wheel width: 50 mm
bore: 127 mm
: MK5
work piece spindle speed: 20-400 U/min
workpiece spindle - bore: mm
grinding head swivelling: 360 °
grinding spindle head - swivable: 180 + - °
grinding spindle speed: 150017002200 U/min
: 0001-0030 mm/Ø
: 0-095 mm/Ø
: 6 °
longitudinal feed of the table: 1750 mm
table speeds: 002-6 m/min
: 130 kg
: 130 inkl Spannugkg kg
: mm
grinding depth: mm
: 80 mm
total power requirement: 65 kW
weight of the machine ca: 29 t
dimensions of the machine ca: 56 x 20 m
Overhauled with geometric KELLENBERGER protocoll.

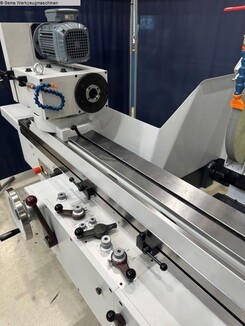

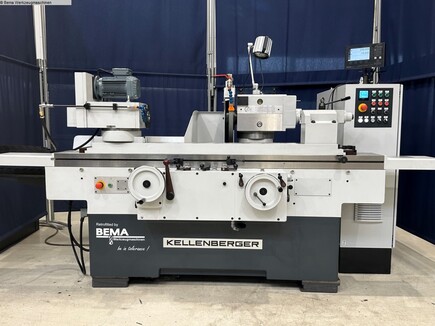

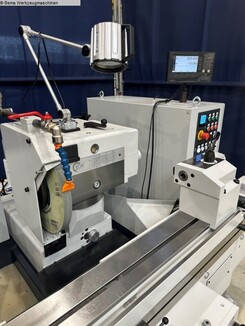

Pictures of a similar 1000mm machine.

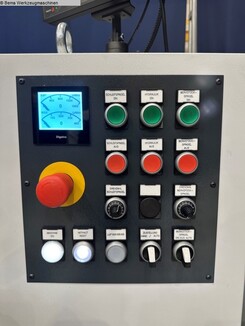

-New electrical cabinet
-Modern workhead
-Modern tailstock
-Modern hydraulic power unit
-air lift for grindingwheeel head
-modern internal grinding device
Extension of the upper table swivel to 10°
Optional:

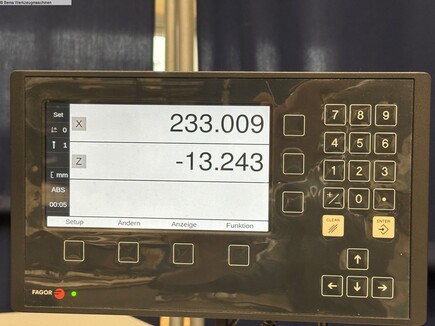

-Swivel angle digital read out upper table
-Swivel angle digital read out workhead
-Swivel angle digital read out grindingwhell head
-Splash protection door z-axis
-Splash protection housing x-axis
etc.
ADDITIONAL:
-we can offer service for the machines
-we can offer technical advice
-we can offer training
-we have spare parts
-we have accessories
