Technical details
Control: Fanuc 18i-TB
Turning diameter: 381 mm
Turning length: mm
Spindle bore diameter: 75 mm
Spindle Speed: 3500 1/min
Spindle motor: 22/15 kW
Movement X-axis: 190 695 mm
Movement Y-axis: 55 / -55 mm
Movement Z-axis: 850 mm
W-axis movement subspindle to mainspindle: 830 mm
Minimum indexing C-Axis main Spindle: 0001 °
Minimum Indexing C Axis Sub Spindle: °
Number of tools on turret: 12 x
Spindle speed driven tools: 1/min
Number of driven tools: 12 x
Tool Taper: VDI 40
Spindle motor driven tools: 4000 kW

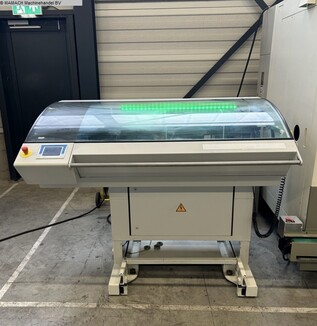

Bar feeder: Irco-Breuning ILS MUK
Required floor space: mm
Length: 4820 mm
Width: 2100 mm
Height: 2325 mm
Weight: 8000 kg
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Dealer: MAMACH MACHINEHANDEL BV
Price request
