Technical details

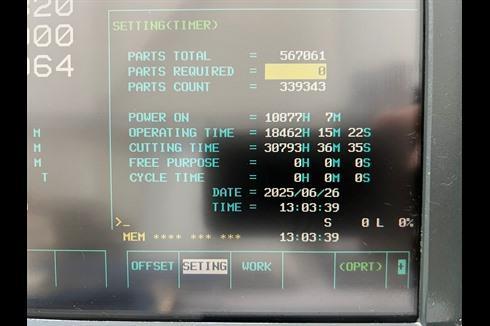

MORI SEIKI SL150Y CNC Lathe with Driven Tooling. MSC-501 (Fanuc) Control. Year 2000

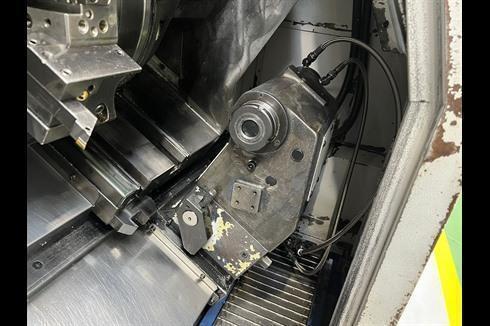

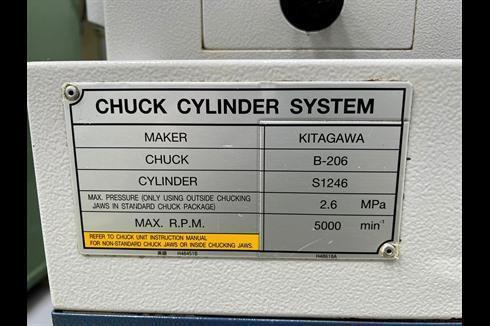

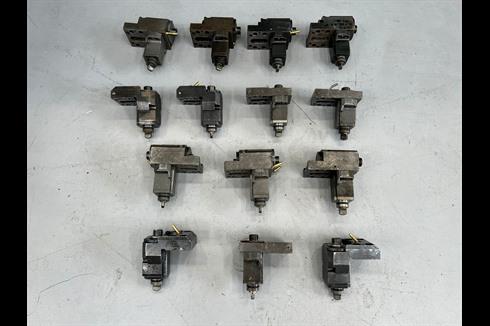

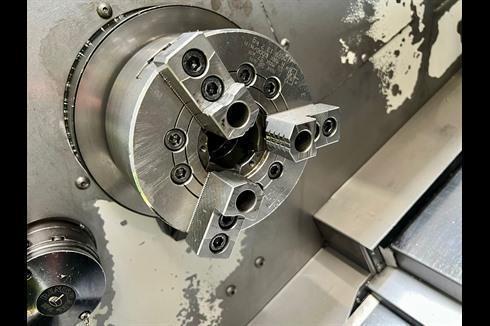

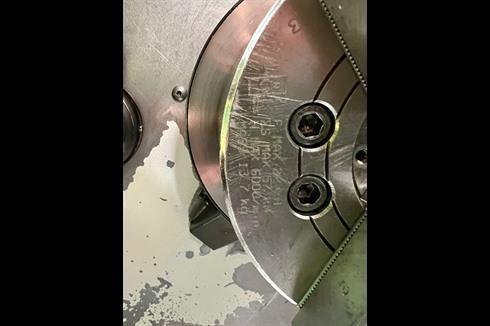

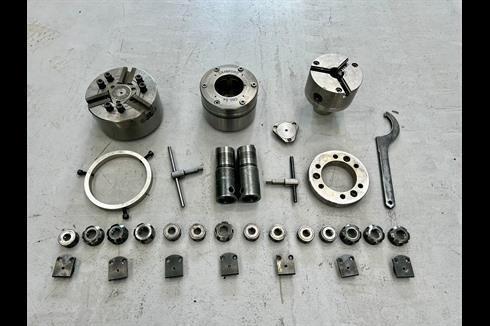

Swing over bed 680mm. Swing over cross slide 510mm. Maximum turning dia. 300mm. Standard turning dia. 170mm. Maximum turning length 490mm. Bar capacity 45mm. X/Y/Z travels 215mm/70mm (+40mm – 30mm)/490mm. Spindle speed range 50-5000 rpm. Spindle nose A2-5. Hole through spindle 56mm. Turret stations 12 fixed/12 live. Speeds of live tools 3000 rpm. Feedrates X/Y/Z 18000mm/6000mm/24000mm/min. Tailstock travel 485mm. Tailstock quill dia. 85mm. Tailstock taper 4MT. Tailstock quill travel 120mm. Spindle motor power (30 min/ continuous rating) 7.5kW/5.5kW. Coolant tank capacity 205 litres. Machine complete with Fixed & Driven Toolholders. Kitagawa B-206 3 jaw powered chuck. Swarf conveyor. Manuals.
Machine Dimensions L x W x H 2250 x 1750mm x 2015mm. Approximate weight 4200 kg
Dealer: GM MACHINERY LTD
Price request
