Mazak - Quick Turn NEXUS 450 MY

Technical details

  • Turning diameter840 mm
  • Turning length3175 mm
  • Turret positions12
  • Positions ATC12
  • Number controlled axis4

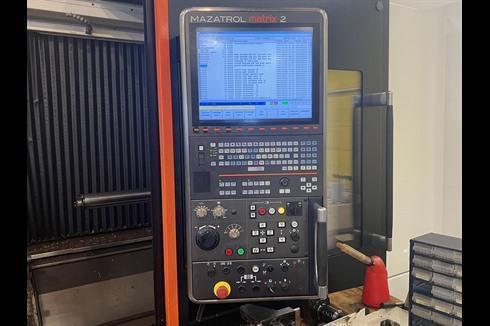

  • CNC BrandMazatrol
  • CNC ModelMazatrol Matrix Nexus

Ideal for the energy, heavy vehicle, and other large component industries, the Quick Turn Nexus 450-II MY and optional tailstock-mounted Long Vertical Mill, which features a 1,150mm boring bar with a special bolt-on angle head, can deliver deep-hole boring to depths of 1,039mm and perform inside diameter milling operations, such as internal keyways and internal drilling. The machine’s rigid construction also provides high-precision machining over long periods of time.The Quick Turn Nexus 450-II MY’s headstock features a 457mm chuck, mounted on a 40 kW with 2,000rpm integrated spindle motor for heavy-duty metal removal. The spindle also serves as a C-axis, capable of being indexed at 0.0001° increments to accurately position parts for square facing and slotting cuts and precisely drilled holes. Additionally, the C-axis spindle is a full-function CNC controlled axis for milling.  The machine also uses a 12-position drum turret, and 7 kW with 4,000rpm rotary tool spindle for milling, drilling, and tapping operations, allowing many processes to be completed in a single machine cycle.

Package with 12 driven tools
Filtration & Coolant system
Tailstock mounted deep-hole drilling & milling
Boring bar with angle head
Steady rest





Max. turning Ø: 840mm
X-Axis:         340mm
Y-Axis:         200mm
Z-Axis:         3175mm
Spindle bore:   187mm
Speedrange:     2000Rpm
Spindle power:  37kW
ATC / revolver: 12
Speed live tools:4000Rpm
Power live tools:7.5kW
Pinole taper:   5Mk
Stroke pinole:  2075mm
Length:         8500mm
Width:          3400mm
Height:         3400mm
Weight:         21800kg
