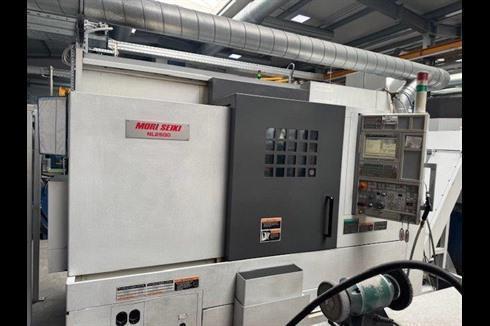

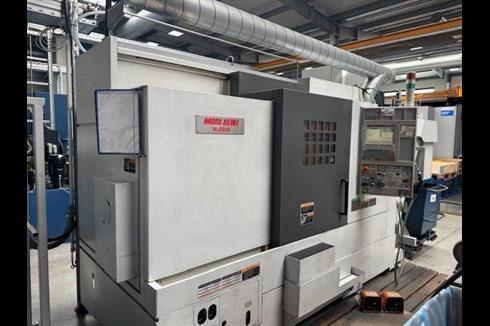

Mori Seiki - NL 2500 SY/700

• Print
• Add to favorites

• BrandMori Seiki
• Type/ModelNL 2500 SY/700
• Stock Number1144
• Year2011

Technical details

• Turning diameter366 mm
• Turning length700 mm
• Turret positions12
• Positions ATC0
• Number controlled axis7
• CNC BrandFanuc
• CNC ModelMXS 850 IV

Make                                                                       Mori-Seiki
Moderl                                                                     NL 2500SY/700
Year of manufacture                                            2011
Control system                                                      MXS 850 IV
Data: Max Swing over bed                                 755 mm
Max swing over support                                     740 mm
Max Turning diam.                                               366 mm
Turning length                                                       785 mm
Movements      X                                                   260 mm
                            Y                                                   100 +-50 mm
                           Z                                                    795 mm
Rapid transport X/Y/Z                                          30/20/50 m/min
Spindle power                                                       26/22 kW
Spindle speed                                                        4,000 rpm
Bar Capacity                                                          80 mm
Chuck diameter                                                    250 mm
Spindle nose                                                          JIS A2-8
Spindle indexing                                                    0.001°
Sub Spindle power                                               11/7,5 kW
Sub Spindle speed                                                6,000 rpm
Sub Bar cap.                                                           80 mm
Sub spindle Chuck diameter                              150 mm
Sub Spindle nose                                                  JIS A2-5
Sub Spindle indexing                                            0.001°

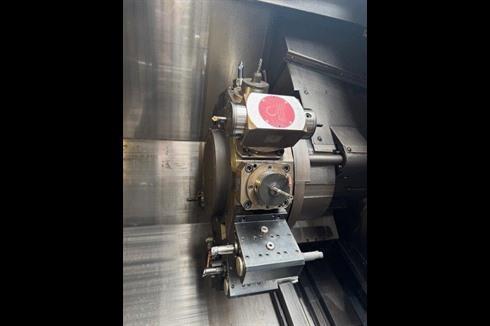

Number of tools in turret/driven                     12/12 pcs.
Power driven tools                                               5.5 kW
Spindle speed driven tools                                 6,000 rpm
Machine weight                                                    6,200 kg
Machine dimensions LxWxH 4.34 x 2.00 x 2.120 m

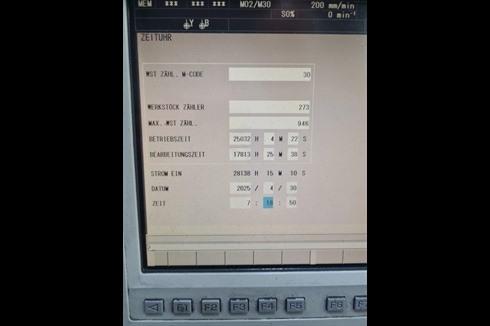

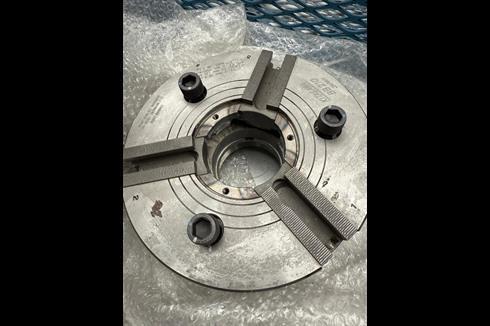

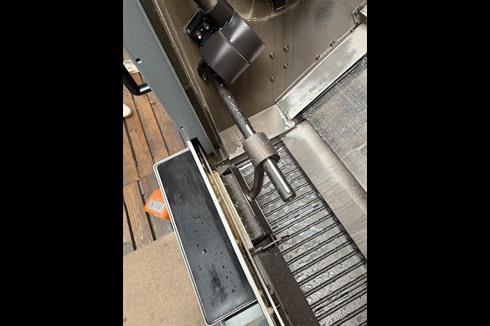

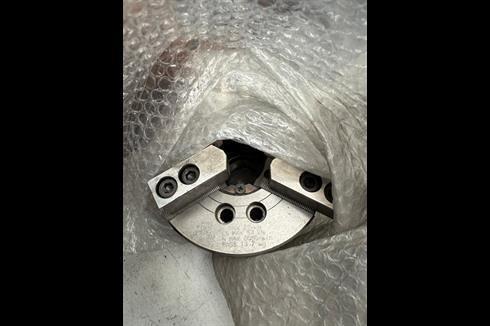

Equipment: Chip conveyor, 3-jaw chuck Kitagawa BB-210 in main Spindle and a Kitagawa B 206 in Sub Spindle, Part catcher, Various tool holders, Parts catcher, Interface for Bar-Feed, Synchronised threading, The machine has 17800 work hours.

Dealer: SCANTOOL AB

Price request
