Technical details
turning diameter: 175 mm
travel -z axis: 435 mm
control: Fanuc 18i-TB
turning length: mm
total power requirement: kW
weight of the machine ca: t
dimensions of the machine ca: m

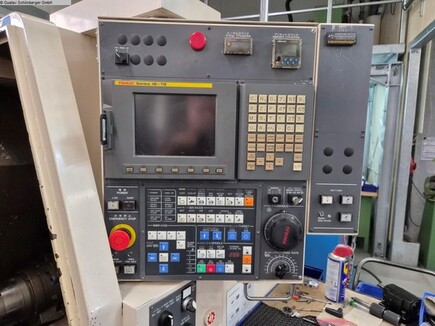

Fanuc 18i-TB control
Collet chuck device main spindle
Collet chuck device sub spindle
C-axis
Y-axis

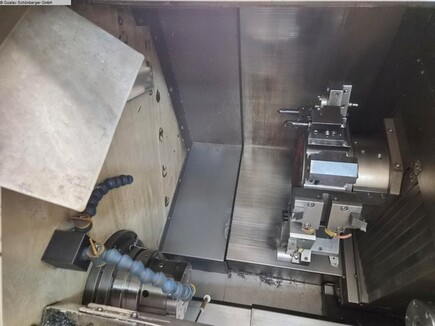

12-fold turret with driven tools
chip conveyor

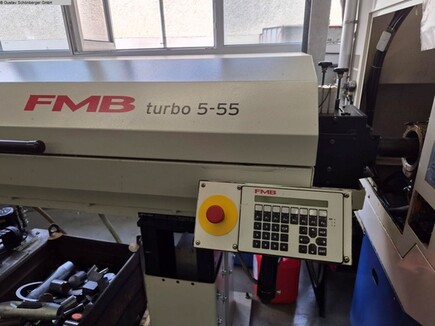

bar loading device

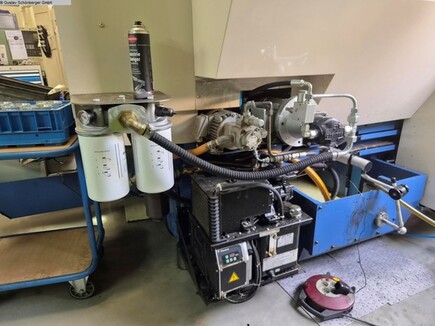

coolant device
Technische Daten: / technical details
max. Stangendurchlass / max. bar diameter 51 mm
max. Drehdurchmesser / max. turning diameter 175 mm
Verfahrweg X / travel X 175 mm
Verfahrweg Z / travel Z 435 mm
Verfahrweg Y / travel Y +-40 mm
max. Drehzahl / max. spindle speed 5000 UpM/rpm
Anzahl der Revolverplätze / number of tool places 12
Eilgang X,Z,Y / rapid feed X,Z,Y 18,20,12 m/min
Gewicht/weight 4550 kg
Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -
Technical data, accessories and description of the machine are not binding.
