Technical details

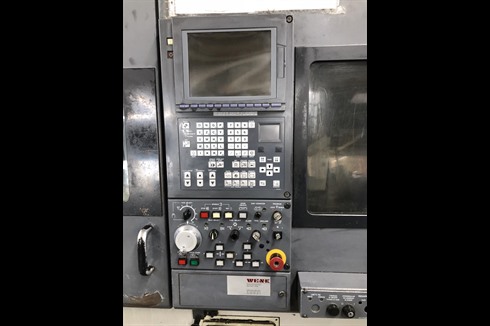

Control: MAZATROL PC Fusion 640M
Operating hours: 77200
Technical data
Number of axis total: 9
Number of spindles: 2
Spindle hole: 88 mm
Turning diameter: 610 mm
Turning length: 1105 mm
Carriage:
Longitudinal travel (X-axis): 1137 mm
Transversal strocke (X axis): 580 mm
Transversal travel (y-axis): 210 mm

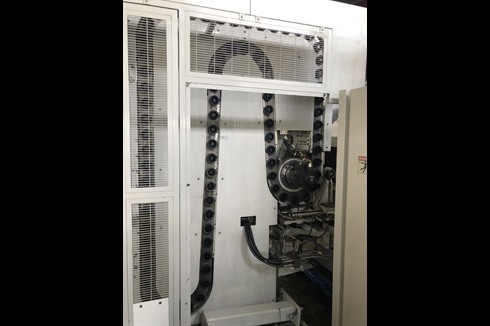

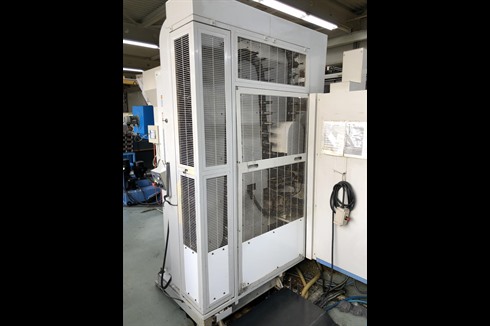

Tool magazine stationary, number of tools: 80 KM 63
C axis (spindle,resolution): 0 - 360 ° / 0.001 °
Spindle speeds:
stepless
from: 35 rpm
up to: 3500 rpm
Milling cutter speeds: 10000 rpm
Rapid traverse X: 30 m/min
Rapid traverse Z: 20 m/min
Rapid traverse Y: 15 m/min
Total power required: 26 kW
Machine's weight about: 12000 kg
Overall dimensions machine:
Length: 5300 mm
Width: 3000 mm
Height: 2800 mm
Various accessories:
3-jaw chuck diameter: 250 mm
Set of jaws: 200
Set of jaws hard: 50
Internal coolant supply (cts): 15 bar
Part separating device
Chip conveyor

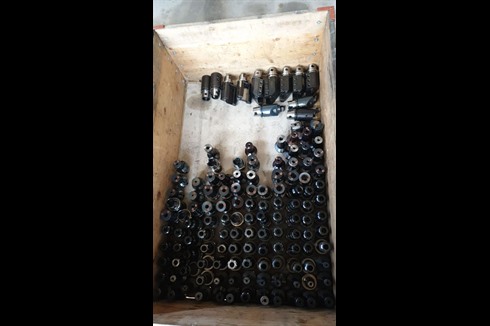

Set of toolholders
Tool changer: (number of tools): 80
