Technical details
turning diameter: 660 mm
turning length: 1016 mm
control: Mazatrol PC Fusion 640MT
total power requirement: kW
weight of the machine ca: t
dimensions of the machine ca: m
Mazatrol PC Fusion 640 MT

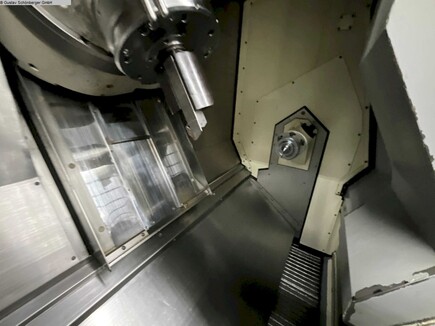

milling Spindle above for turning and milling tools (B-axis)
C-axis
Y-axis
20-fold magazine
collet chuck device

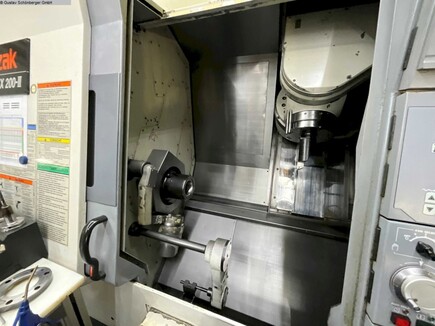

tail stock

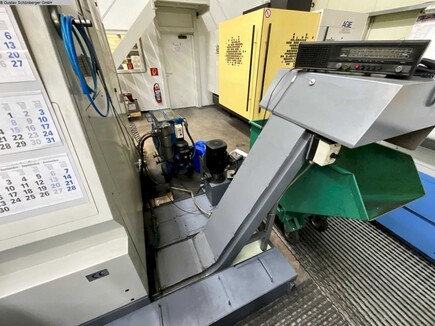

chip conveyor
coolant device
Technische Daten / technical details:
Umlaufdurchmesser über Bett / rotary diameter over bed 660 mm
Umlaufdurchmesser über Schlitten / rotary diameter over sledge 660 mm
max. Drehdurchmesser / max. turning diameter 660 mm
max. Bearbeitungslänge / max. turning length 1016 mm
Verfahrweg X-Achse / travel x-axis 580 mm
Verfahrweg Z-Achse / travel z-axis 1045 mm
Verfahrweg Y-Achse / travel y-axis +-80 mm
Verfahrweg W-Achse / travel W-axis 1010 mm
Schwenkbereich B-Achse / swivel range B-axis -30 / +195 °
Drehzahlbereich / spindle speed range 35-5000 UpM / rpm
Drehzahlbereich Frässpindel /speed of milling spindle 15-12000 UpM / rpm
Anzahl der Magazinplätze / number of places in magazine 20 fach /fold
Eilgang X,Y,Z / rapid feed x,y,z 38/26/38 m/min
Antriebsleistung Hauptspindel 30%ED / drive capacity main spindle 30%ED 22
kW
Gewicht der Maschine ca. / weight ca. 9500 kg
Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich -
Technical data, accessories and description of the machine are not binding.
