Technical details
Control: OSP P300L-R
Turning diameter: 340 mm
Turning length: 1020 mm
Spindle bore diameter: 65 mm
Spindle Speed: 25 - 3000 1/min
Spindle motor: 15/11 kW
Movement X-axis: 235 mm
Movement Y-axis: 50 / -50 mm
Movement Z-axis: 1074 mm
W-axis movement subspindle to mainspindle: mm
Minimum indexing C-Axis main Spindle: 0001 °
Minimum Indexing C Axis Sub Spindle: °
Number of tools on turret: 12 x
Spindle speed driven tools: 45 - 4500 1/min
Number of driven tools: 12 x
Tool Taper: VDI
Spindle motor driven tools: 7/33 kW

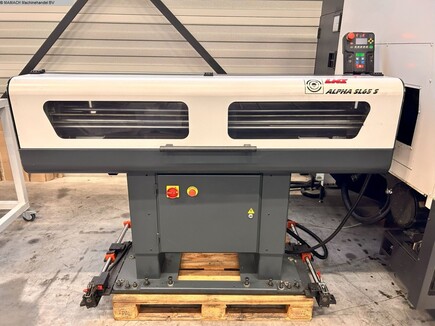

Bar feeder: LNS Alpha SL 65S
Required floor space: mm
Length: 4371 mm
Width: 2536 mm
Height: 2487 mm
Weight: 7500 kg
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Dealer: MAMACH MACHINEHANDEL BV
Price request
