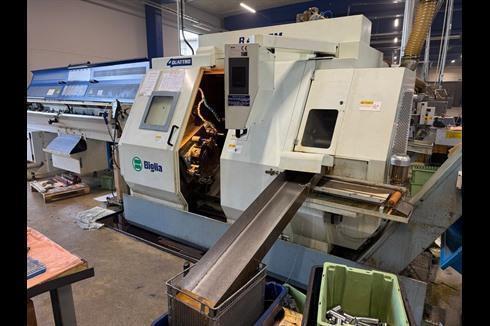

Biglia - B.470/SM

• Print
• Add to favorites

• BrandBiglia
• Type/ModelB.470/SM
• Stock Number1142
• Year2004

Technical details

• Turning diameter520 mm
• Turning length250 mm
• Turret positions24
• Positions ATC24
• Number controlled axis6
• CNC BrandFanuc
• CNC Model18i-TB

Make                                                                       Biglia
Model                                                                      B.470/SM
Year of manufacture                                            2004

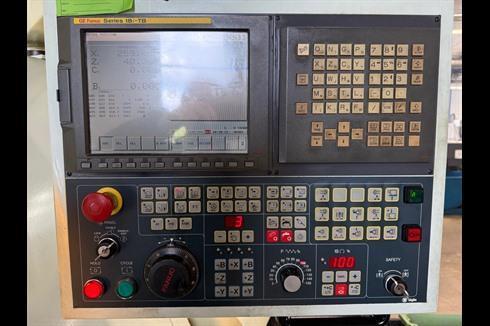

Control system                                                      Fanuc 18i-TB
Data:
Swing over bed                                                     220 mm
Turning diameter                                                  520 mm
Turning length                                                       250 mm
Traverses          X1/X2                                          160/160 mm
Z1/Z2                                            390/240 mm
Rapid feed       X1,2/Z1,2                                     20,20/24,20 m/min
Main spindle
Spindle nose                                                          ASA 6”
Spindle bore                                                          80 mm
Spindle bearing diameter                                   110 mm
Bar capacity                                                           68 mm
Spindle speed                                                        4,000 rpm
Spindle power                                                       26 kW
C-Axis                                                                      0.001°
Sub spindle
Spindle nose                                                          ASA 5”
Spindle speed                                                        4,000 rpm
Spindle bore                                                          55 mm
Bar capacity                                                           45 mm
Spindle bearing diameter                                   80 mm
Spindle power                                                       11 kW
C-Axis                                                                      0.001°
Rapid feed B                                                          30 m/min

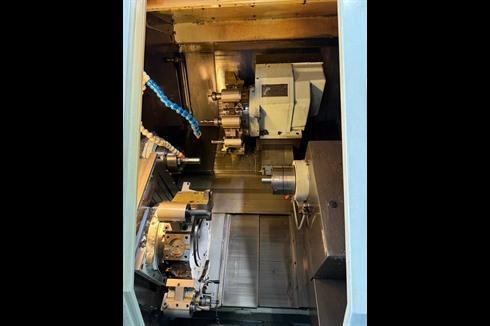

Revolver 1
Tool turret                                                              12 positions
Rotation time                                                        0.15 sec.
Driven tools spindle speed                                 4,000 rpm
Power driven tools                                               3.7 kW
Revolver 2
Tool turret                                                              12 positions
Rotation time                                                        0.15 sec.
Driven tools spindle speed                                 4,000 rpm
Power driven tools                                               3.7 kW
Chucks                                                                     Heinbuch collet chucks 65 mm
Machine dimensions L/W/H                              4150/2100/2200 mm
Machine weight                                                    6.900 kg

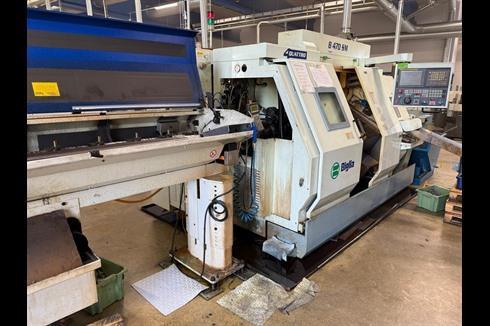

Equipment:      Chip conveyor Lamell, Bar magazine Iemca Master 880/MP, Tool-Holders fixed and rotating included.

Dealer: SCANTOOL AB

Price request
