Technical details

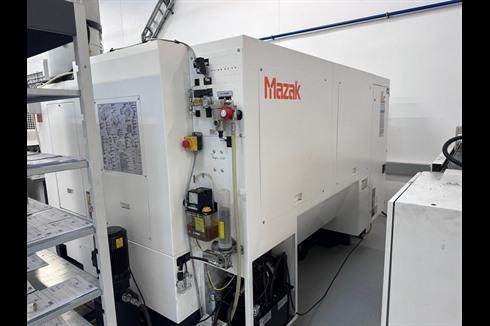

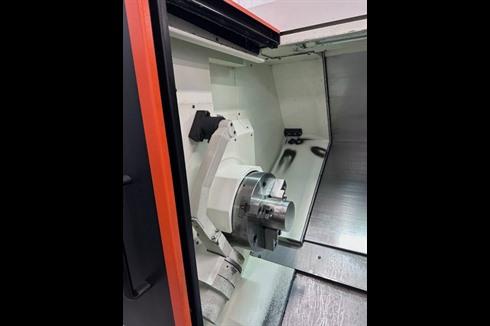

MAZAK Quick Turn 350 CNC Lathe with Mazatrol Smart Control. Year 2015

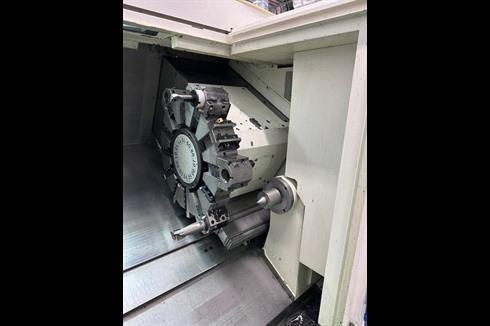

Swing over bed 720mm. Swing over cross slide 423mm. Maximum machining diameter 420mm. Maximum machining length 613 mm. Tailstock travel 645mm. X/Z travel 240mm/710mm. X/Z rapids 30m/33m per minute. Maximum spindle speed 3300rpm. Spindle power 22kW (cont). 12 Station Turret. Bar capacity 102mm. Tailstock taper 5MT. Spindle nose A2-11. Tool size 25mm x 25mm section. Boring bar holder 50mm dia. Mazatrol Smart Control. Machine fitted with 3 Jaw Powered Chuck. Selection of turret tooling. Filtermist. Ex University in exceptional condition.
Machine Dimensions L x W x H 3050mm x 1910mm x 1900mm. Approximate weight 5990kg
Dealer: GM MACHINERY LTD
Price request
