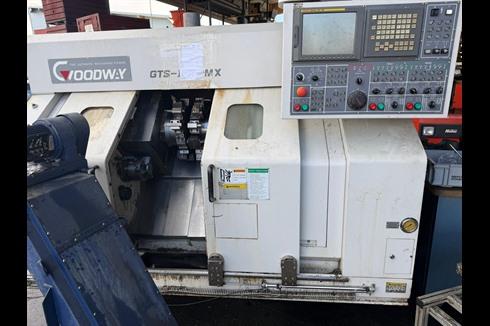

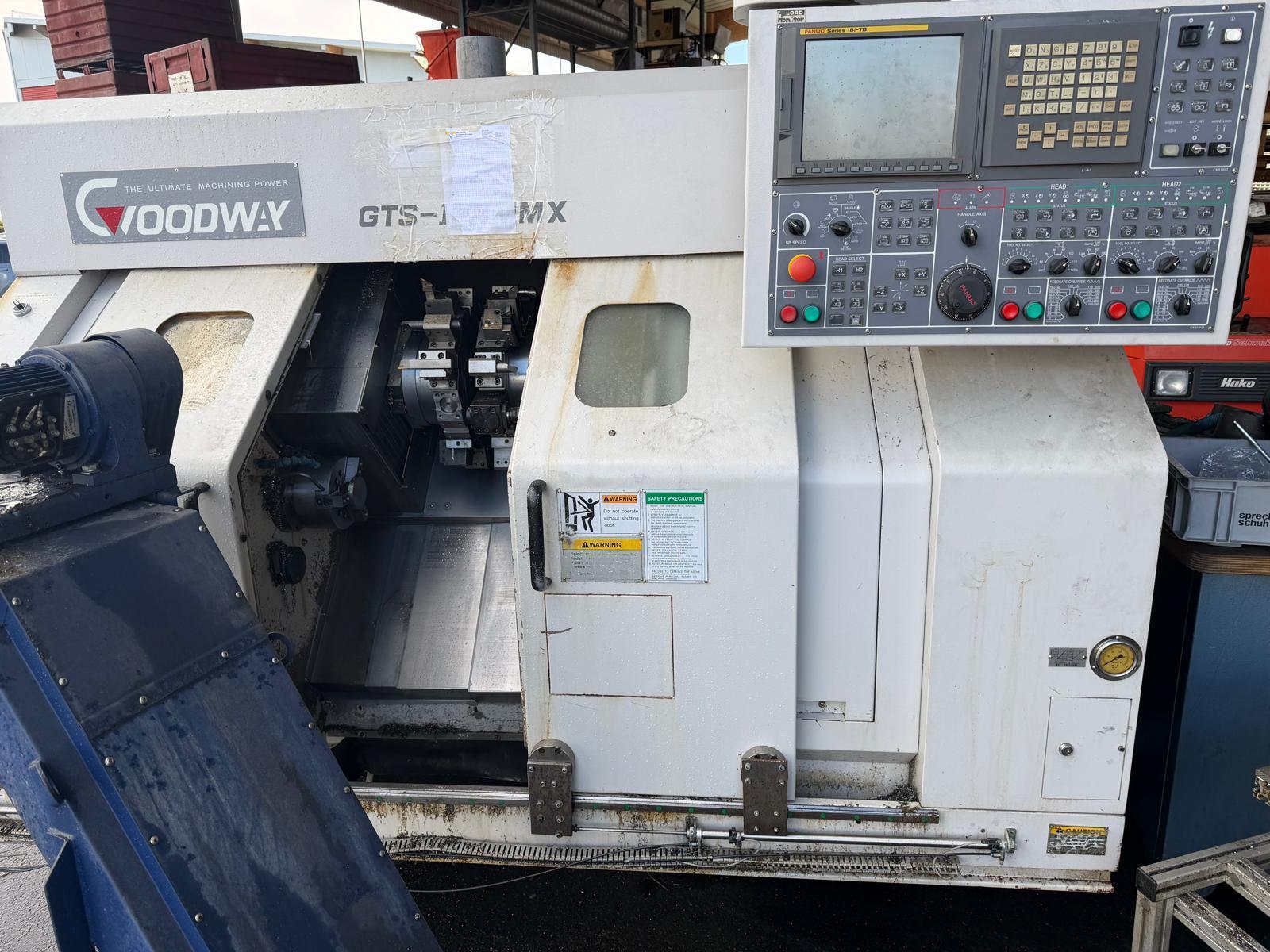

Goodway - GTS 150-MMX

• Print
• Add to favorites

• BrandGoodway
• Type/ModelGTS 150-MMX
• Stock Number9277
• Year2007
• WebsiteGTS 150-MMX

Technical details

• Turning diameter180 mm
• Turning length600 mm
• Turret positions12
• CNC BrandFanuc
• CNC Modelx

CNC latheGoodway - GTS 150-MMX
MACH-ID 9277
Make: Goodway
Type: GTS 150-MMX

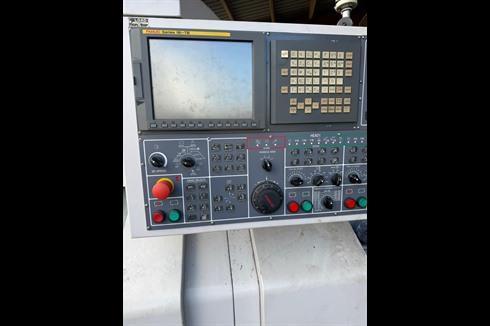

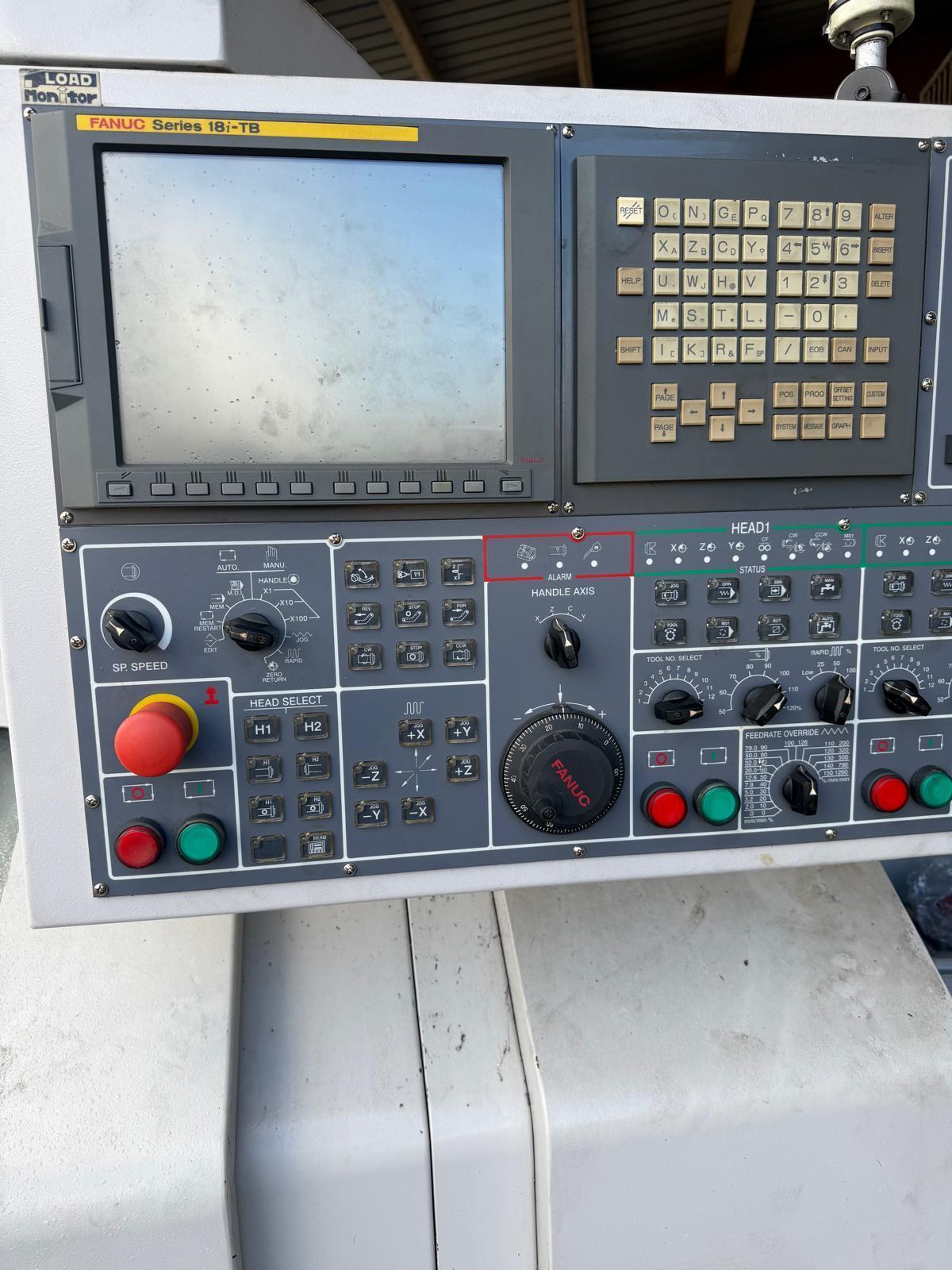

Control: FANUC 18i-TB
Year: 2007

Distance between main spil and left turret 404 mm
Distance between spil and sub spil nose minimum 260 mm
Distance between spil and sub spil nose maximum 760 mm
Double Chuck 168 mm ?


Max. turning Ø:  180mm
X-Axis:          160mm
Z-Axis:          210/600mm
Spindle bore:    33mm
Speedrange:      4000Rpm
Spindle power:   7.5kW
Subspindle speeds:4000Rpm
Subspindle bore: 7.5mm
Length:          3100mm
Width:           1700mm
Height:          1800mm

Dealer: MACH4METAL BV

Price request
