Technical details

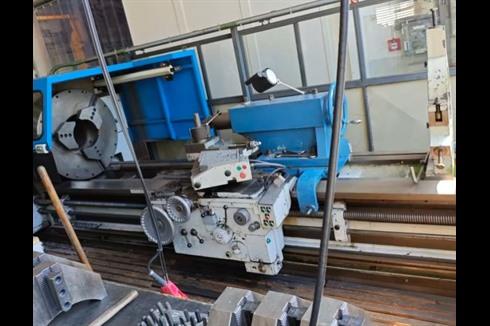

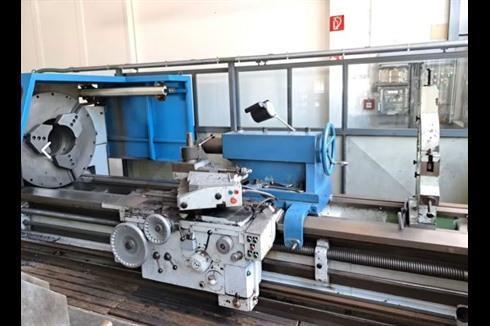

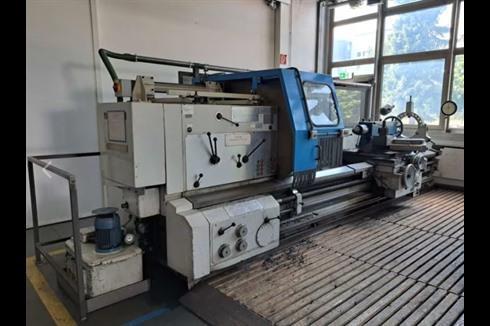

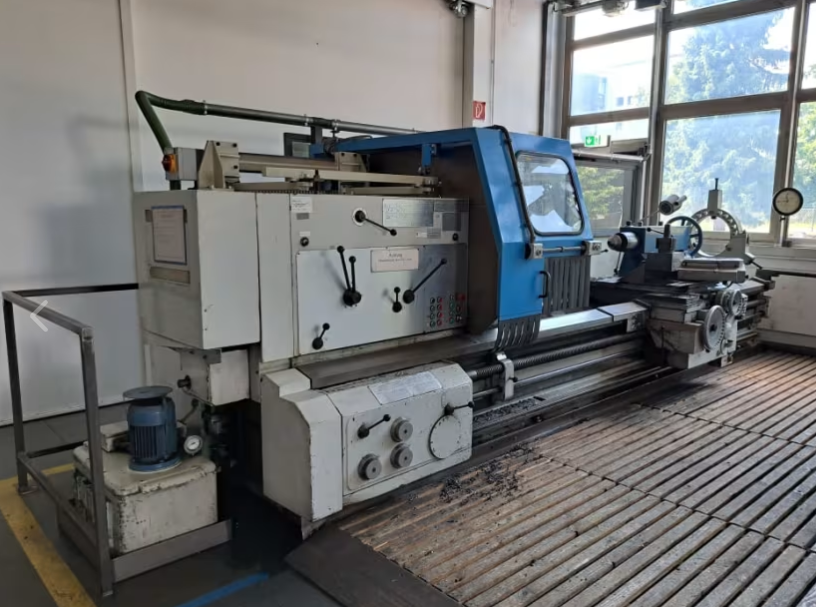

Hollow spindle latheDEMOOR - 825-S360
Oil Country Lathe Ø 970 x 2000 mm
Double Hydraulic chuck
Double chuck front and rear with 360 bore
API Threading Cutter attachment
Safety cover dfor front and rear chuck

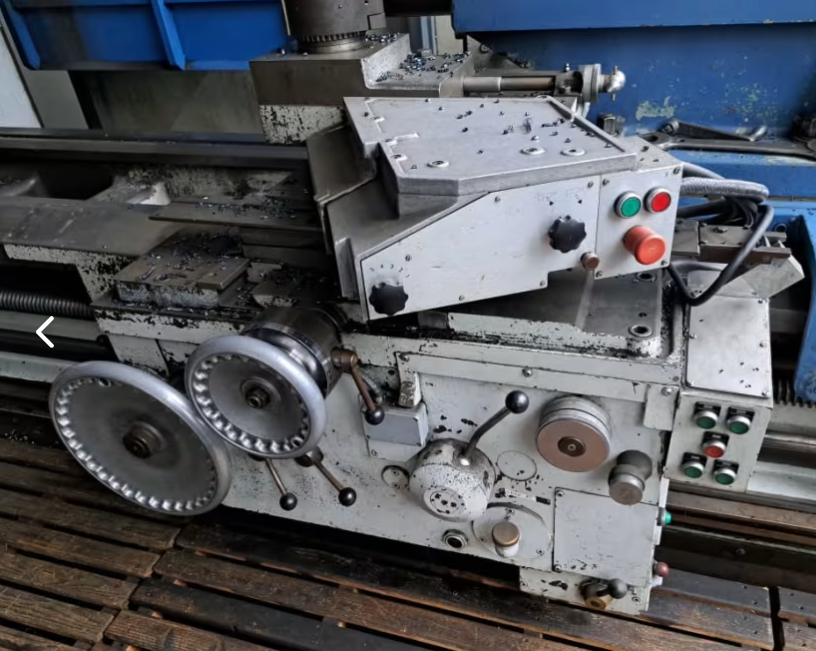

Conical turning carriage
Multi fix tool system
DBC Turning Length: 2000mm
Swing over bed Ø: 970mm
Swing over cross slide Ø:500mm

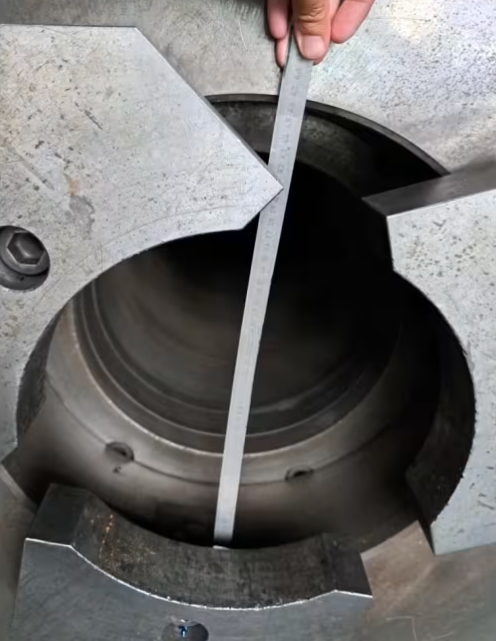

Spindle bore: 360mm
Spindle power: 22kW
Stroke pinole: 360mm
Spindle taper: 6Mk
Speeds / ranges: 28-500Rpm
Feed rate X-Axis: 4000mm/min.
Feed rate Z-Axis: 2000mm/min.
Length: 5500mm
Width: 1900mm
Height: 1900mm
Weight: 10600kg
Dealer: MACH4METAL BV
Price request
