Price request

Technical details

  • Center height1 mm
  • Center distance1 mm
  • Spindle bore1 mm

Centre latheSKODA - SUT 200 TD
MACH-ID 9446

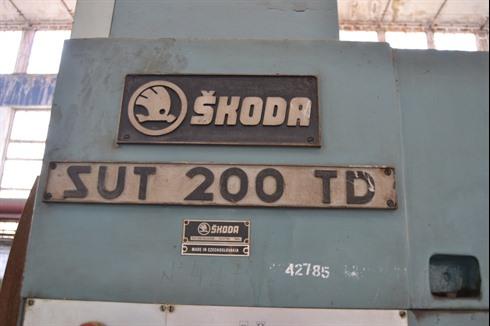

Make: SKODA
Type: SUT 200 TD
Year: 1984

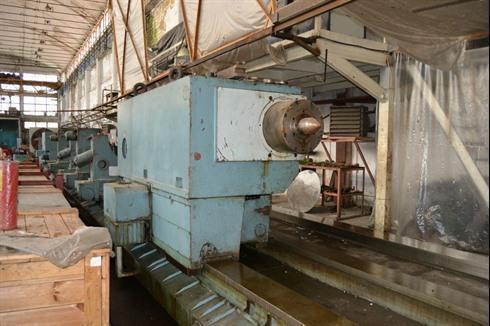

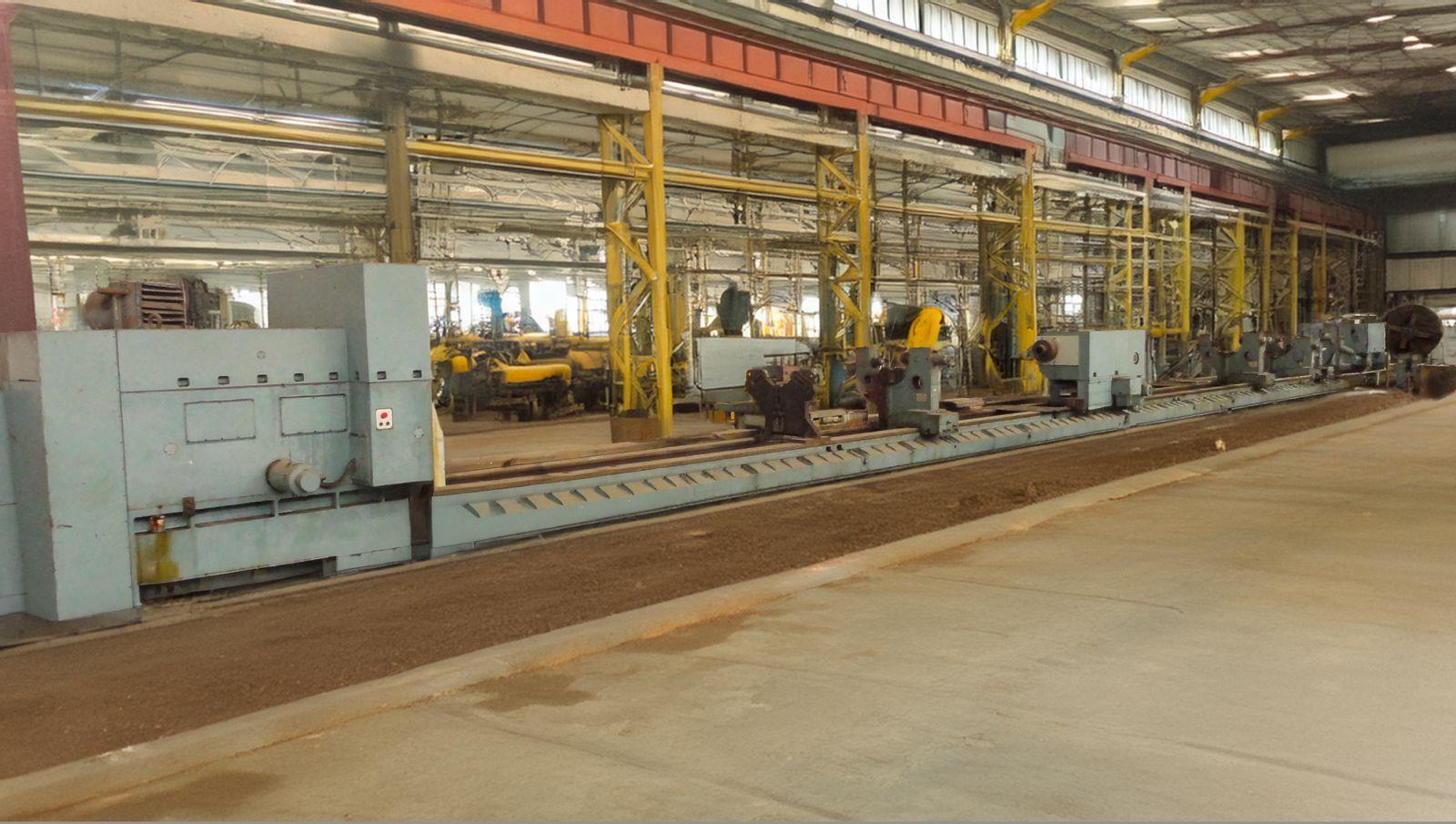

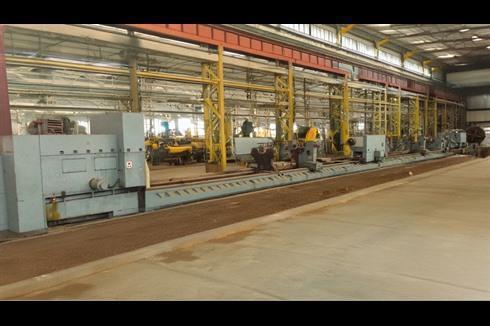

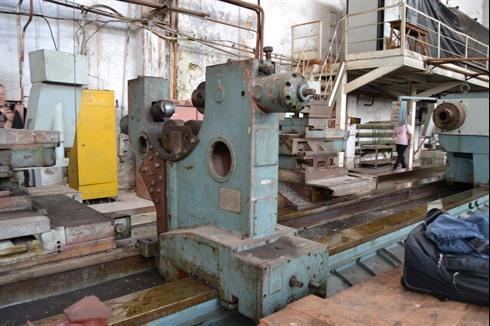

Tandem construction on 1 bed left headstock + right headstock

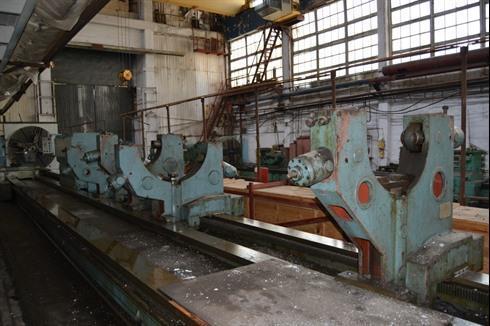

Mirror double tailstock left and right

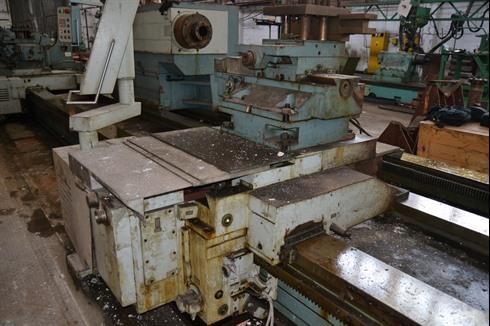

Double carriage
Steady rest included
Roller rest included

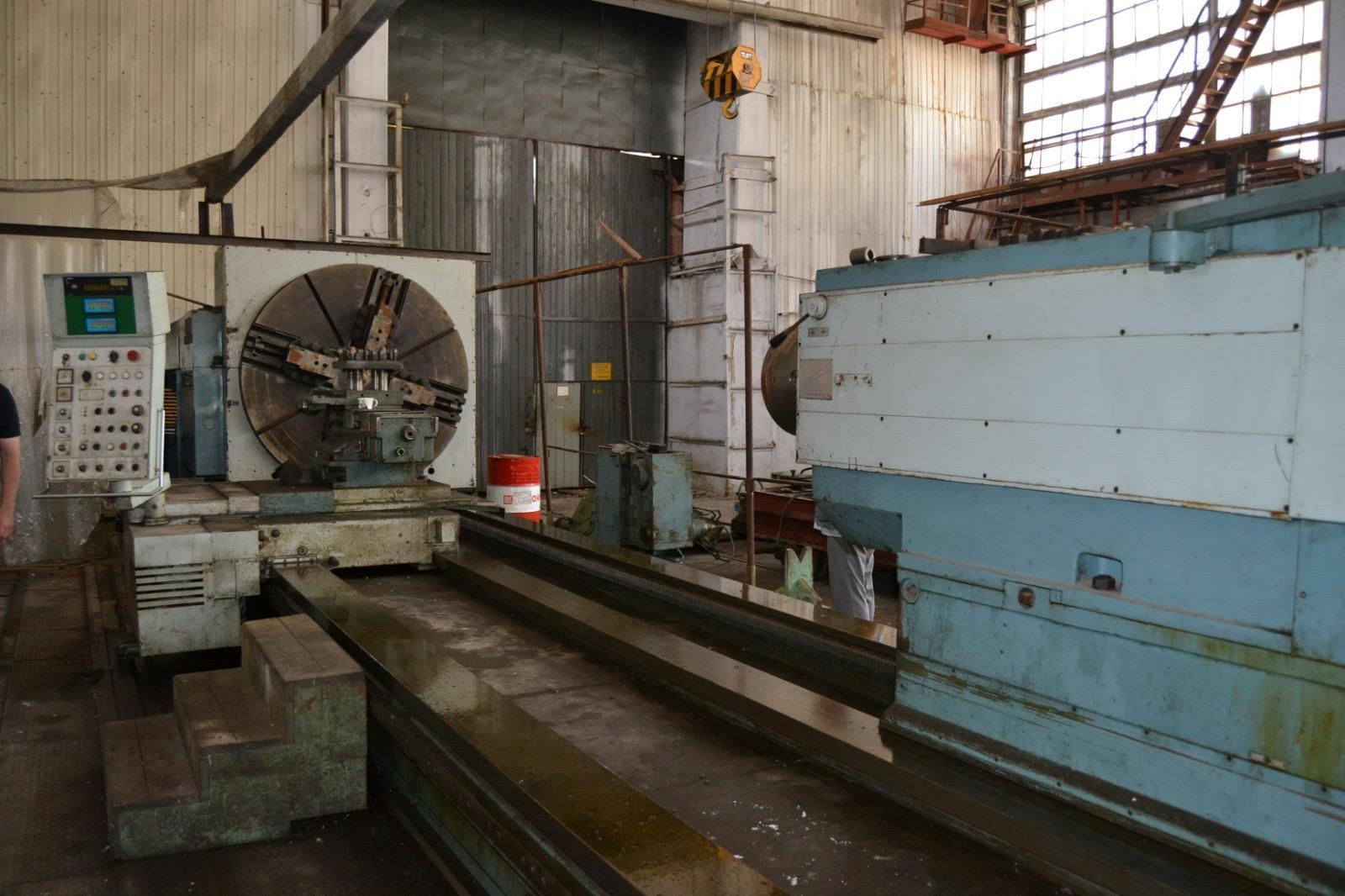

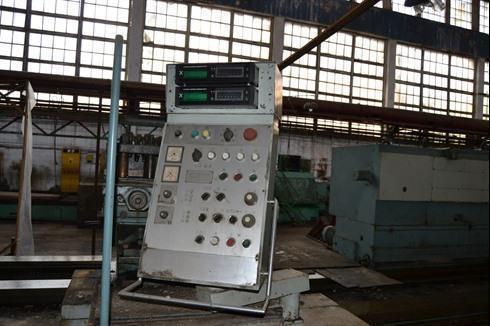

Opperator panel with scales needs attension and replacement
Motorized tailstock for each side left and right
3 bed way construction

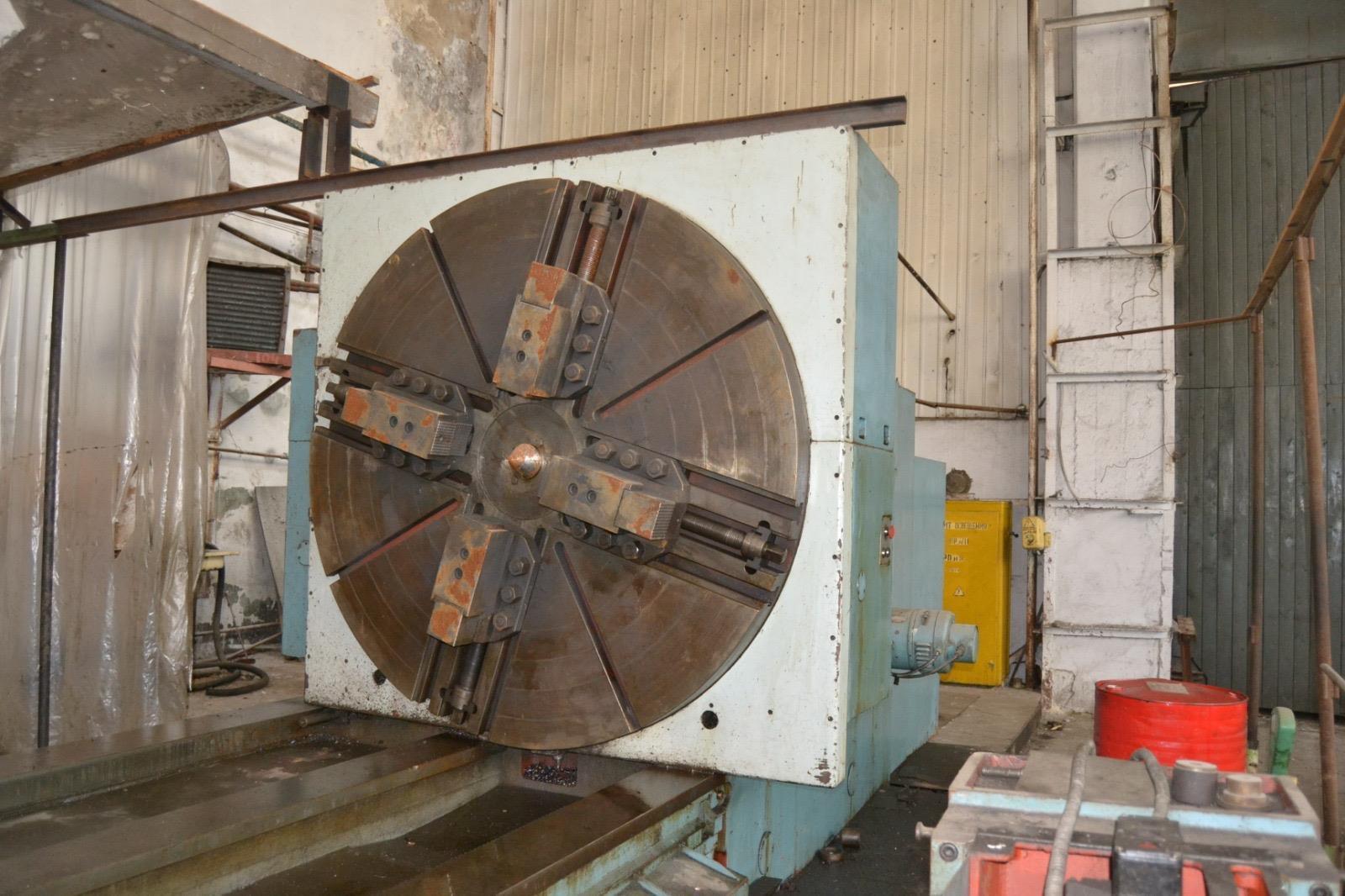

Torq on chuck 160.000 Nm
Minimum turning diameter Ø 315 mm
Field off indurstrie:
Ship yard
Propeller shaft
Hydraulic cylinder shaft
Camshaft
Defence ; Aeronautica
Rolls and Shaft for steelmills
Crankshaft

DBC Turning Length:      35000mm
Swing over bed Ø:        2000mm
Swing over cross slide Ø:1600mm
Spindle power:           75kW
Bed width:               1600mm
Tailstock spindle Ø:     400Ø
Stroke pinole:           250mm
Speeds / ranges:         180Rpm
Feed rate X-Axis:        5000mm/min.
Feed rate Z-Axis:        5000mm/min.
Workpiece load:          63000
Length:                  42000mm
Width:                   3250mm
Height:                  3250mm
Weight:                  158000kg

Dealer: MACH4METAL BV
