Technical details

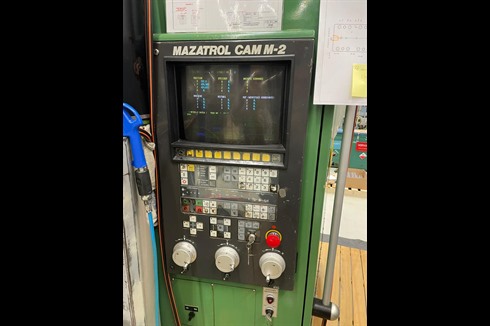

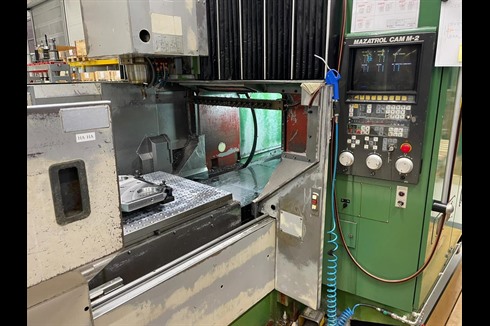

Control: MAZATROL CAM M-2
Technical data
Number of axis total: 3
Table length: 1240 mm
Table width: 550 mm

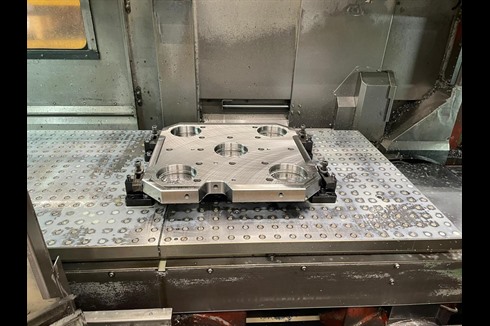

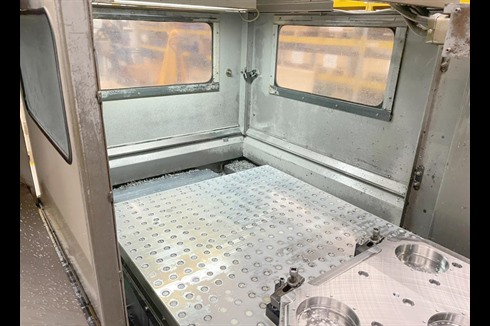

Working table:
Longitudinal travel (X-axis): 1500 mm
Transversal travel (y axis): 800 mm
Vertical travel (z axis): 500 mm
Table load max.: 800 kg

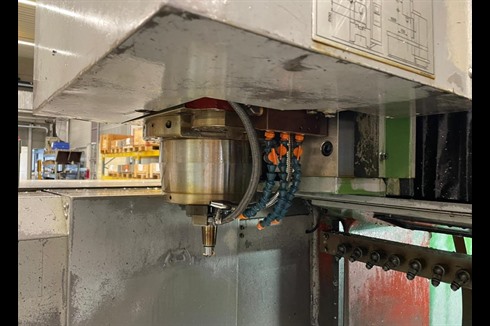

Taper in spindle:: 50 SK
Spindle speeds:
stepless
vertical from: 28 rpm
up to: 4000 rpm
Tool changer:
number of tools: 30
Tool diameter: 100 mm
Diameter with free adjacent pockets: 130 mm
Max. tool-weight: 7 kg
Voltage 50 Hz 3x: 380 Volt
Milling spindle motor: 5.5 kW
Machine's weight about: 6500 kg
Overall dimensions machine:
Length: 3000 mm
Width: 2920 mm
Height: 3200 mm
Various accessories:
Chip conveyor
Set of toolholders
Coolant system
Lamp
Dealer: MULLER MACHINES SA
Price request
