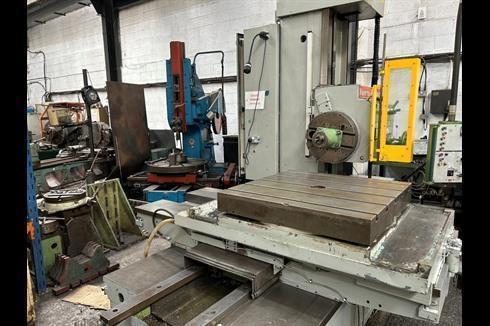

Kearns Richards - SH75

• Print
• Add to favorites

• BrandKearns Richards
• Type/ModelSH75
• Stock NumberF4024

Technical details

• Spindle diameter75 mm
• Cross X1240 mm
• Vertical Y1000 mm
• Table length1000 mm
• Table width1000 mm
• Positions ATC0
• Number of pallets0
• CNC BrandNo CNC
• CNC Modelx

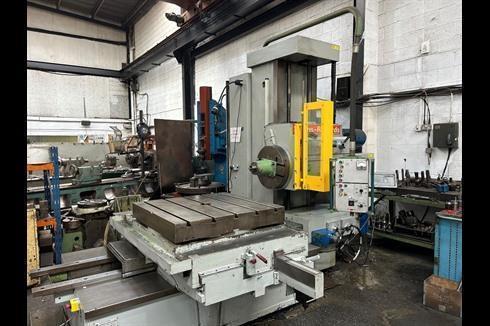

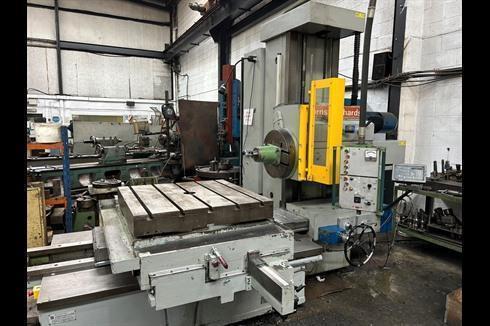

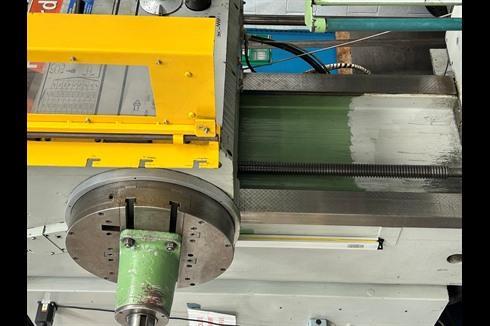

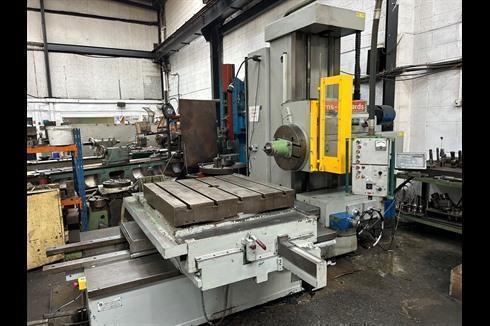

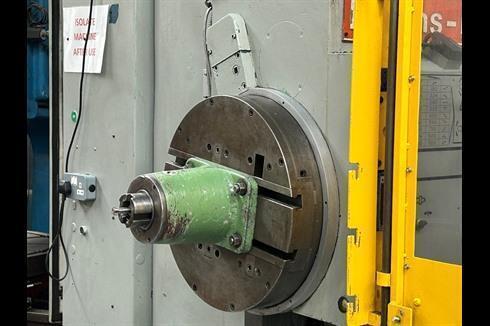

KEARNS RICHARDS SH75 TABLE TYPE HORIZONTAL BORER, model    SH75, Serial No 7076, Rotary Table Size 1000 x 1000mm, Maximum Table Load  2000kg, Vertical Traverse 1000mm, Cross Traverse 1245mm, Longitudinal Traverse 1000mm, Spindle Diameter 75mm, Spindle Traverse 508mm, Spindle Speeds 5.6- 1120 rpm, Spindle Taper 40 int, Facing Head Diameter 508mm, Facing Slide Traverse 180mm, Facing Head Speeds 5.6 – 280rpm, Feeds, X, Y & Z 0.75 – 2500mm/min, Feeds, Spindle & Face  0.25 – 830mm, Screw Cutting to Table 2 – 10mm Pitch, 4 – 16 TPI, Motor 7.5kw, Electrics 415v, 3ph, 50 Cycles, Complete with 3 Axis DRO, Steel Telescopic Guards, Operator Safety Guard, Pendent Control, Power Draw Bar, Safety Brake, Facing Head Lock, Spindle Support Bearing, Facing Slide Tool Holder, Selection of Spindle Tool Holders, Lovo Light,
Approximate Dimensions 4200 x 2940 x 2950mm, Approximate Weight 10,500kg

Dealer: NORTHERN MACHINE TOOLS (ENGINEERING) LTD

Price request
