Price request

Technical details

  • Spindle diameter125 mm
  • Cross X2400 mm
  • Vertical Y1520 mm
  • Table length1200 mm
  • Table width1200 mm
  • Positions ATC0
  • Number of pallets0
  • CNC BrandNo CNC
  • CNC Modelx

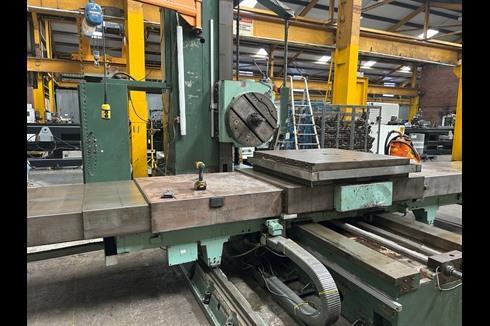

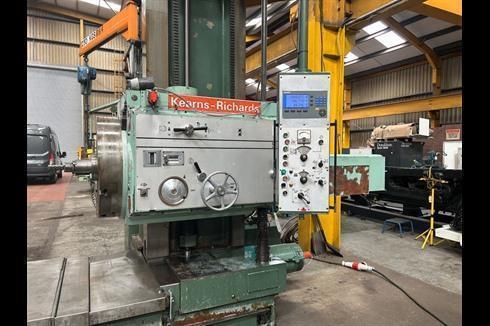

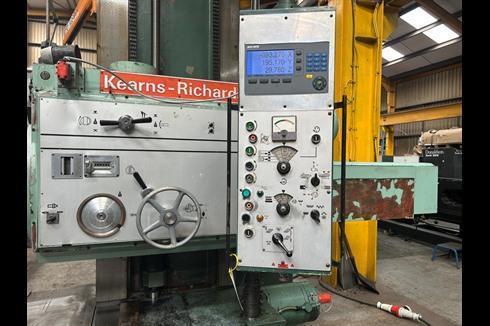

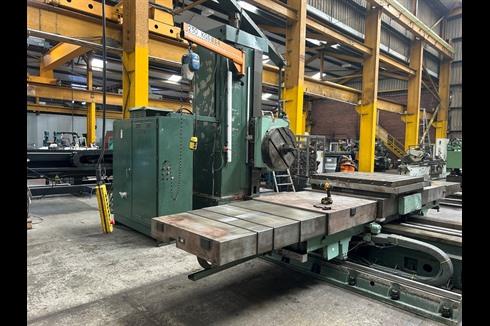

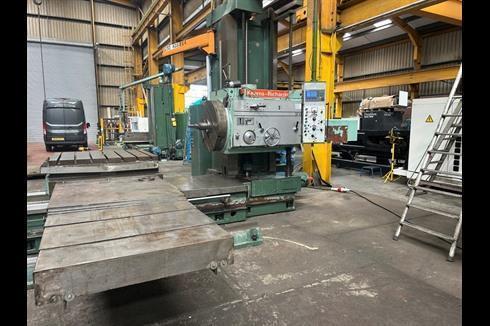

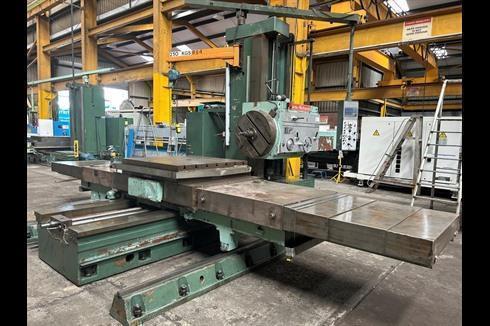

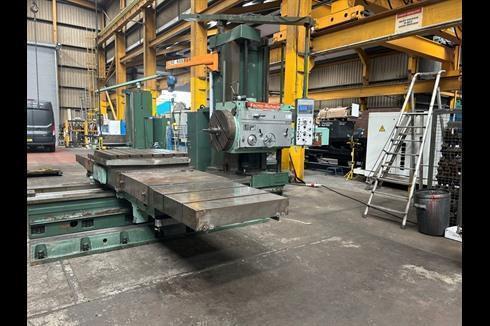

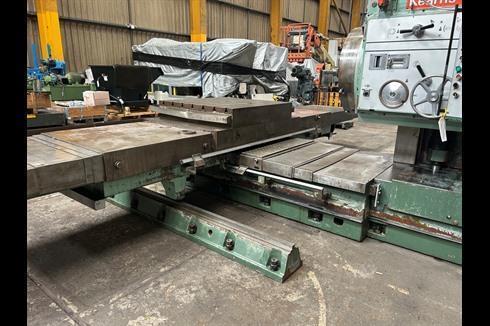

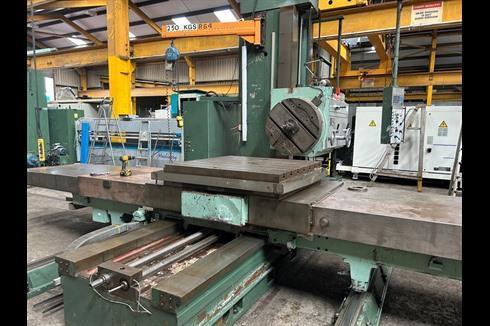

F4017 KEARNS RICHARDS SF100 TABLE TYPE HORIZONTAL BORER, SERIAL No , Spindle Dia 125mm, Spindle Speeds 22 – 1120rpm, Spindle Taper 50 Int,  Spindle Traverse 750mm, Heavy Duty Milling Quill Dia 225mm, Facing Head Diameter  810mm, Facing Slide Traverse 190mm, Facing Head Speeds 2.2 – 224rpm, Rotary Table Size 1200 x 1200mm, Long Traverse 1720mm, Cross Traverse 2400mm, Vertical Traverse    1520mm, Feed Rates  (3 Ranges) 1.3 - 3820mm/min, Spindle Motor 18.5kw, Electrics  415v, 3ph, 50 Cycles, Complete with 3 Axis DRO, Steel Telescopic Guards to Long & Cross Traverse, Facing Slide Tool Holder, Manual Rotary Table, Safety Brake, Power Draw Bar, 250kg Column Mounted Jib Crane, Approximate Dimensions 8130 x 6475 x 3950mm, Approximate Weight 25000kg

Dealer: NORTHERN MACHINE TOOLS (ENGINEERING) LTD
