Technical details
Brand Sacem
Machine no KOT193X

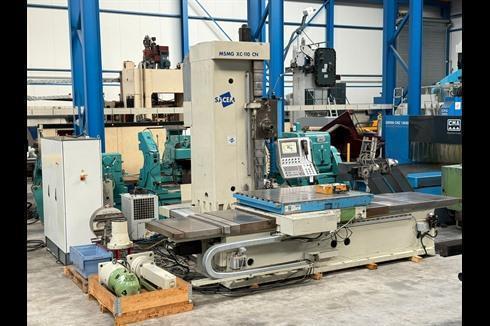

Type MSMG XC-110 CNC
CNC Brand Heidenhain
CNC Type iTNC 530
Year of make 1994 / 2013

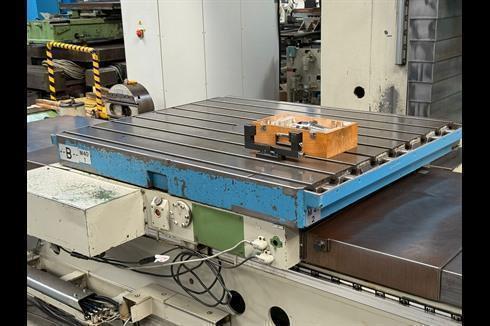

Table length 1.620 mm
Table width 1.400 mm
Table load 10.000 kg
X 2.500 mm
Y 1.500 mm
Z 700 mm
W 1.500 mm
Intake ISO 50
Rapid 10.000 mm/min
Nutrition 3.0 ~ 5000 mm/min

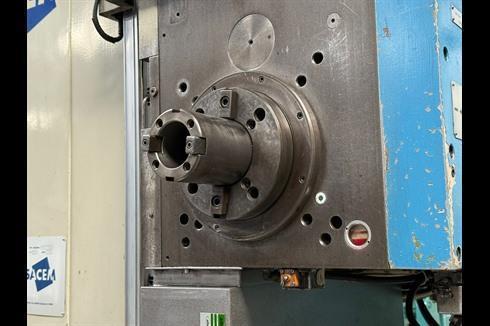

Spindle diameter 110 mm ø
Speed 50 ~ 3.000 RPM
Manual pivoting milling head
Flat turning support
Including manuals
Machine dimensions (L×W×H) 6.500 x 5.500 x 4.100 mm
Machine weight 18.000 kg

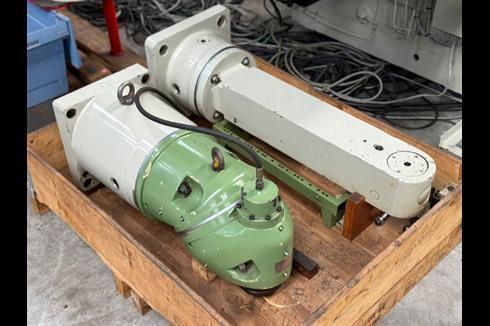

The machine is equipped with both a Huron milling head and a fixed milling head. In addition, the machine features a face-turning support with a diameter of 520 mm.
In 2013, the milling machine was upgraded with a new Heidenhain control, type iTNC 530.

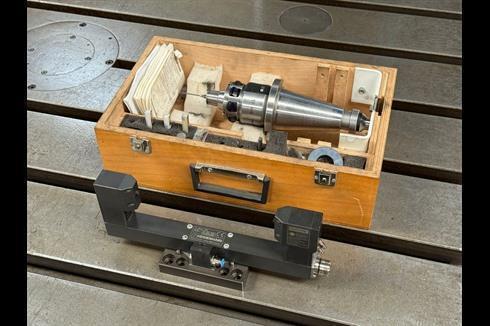

A Heidenhain probing system and a Heidenhain TL Micro 300 measuring system are installed.
The original manuals for both the machine and the control system are available.
Dealer: A JANSEN MACHINEHANDEL BV
Price request
