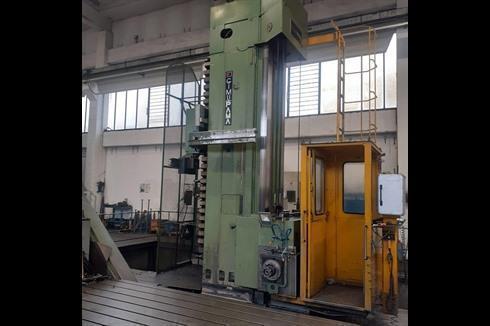

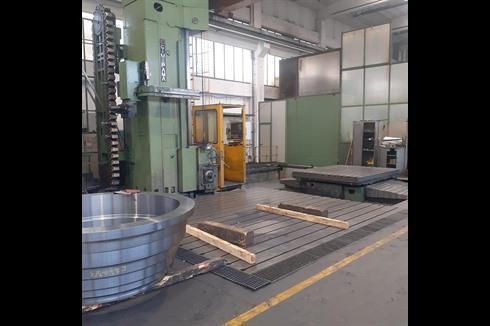

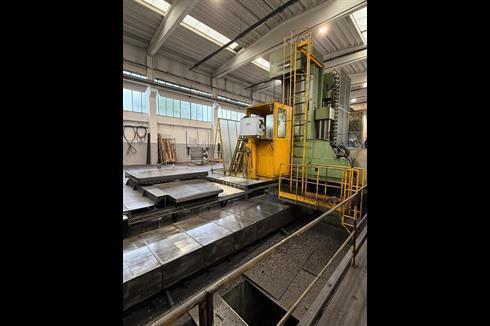

Pama - SPEEDRAM 1 CNC

• Print
• Add to favorites

• BrandPama
• Type/ModelSPEEDRAM 1 CNC
• Stock Numberspeedram1

Technical details

• Spindle diameter140 mm
• Longitudinal X8000 mm
• Vertical Y2600 mm
• Cross Z700 mm
• Positions ATC60
• Table length2500 mm
• Table width2000 mm
• Number of tables1
• CNC BrandSiemens
• CNC Model840 D

COLUMN TRAVEL (X) 8.000  MM.
HEAD VERTICAL TRAVEL (Y) 2.600  MM.
RAM TRAVEL (W) 600  MM.
SPINDLE TRAVEL (Z) - ISO 50; 700  MM.
RAM + SPINDLE TRAVEL (W+Z) 1.300  MM.

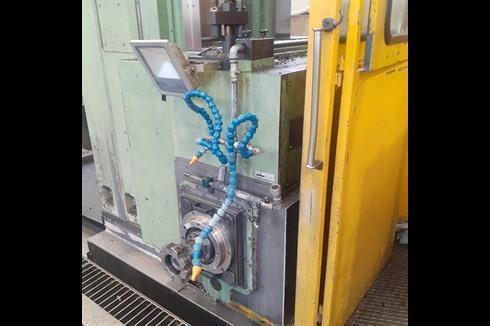

RAM SIZE 360 x 320  MM.
SPINDLE Ø 140  MM.
SPINDLE MOTOR POWER 50  KW.
SPINDLE SPEEDS 6 ÷ 1.600  RPM.
WORKING FEEDS 1 ÷ 6.000  MM/MIN.
RAPID FEEDS 10.000  MM/MIN.

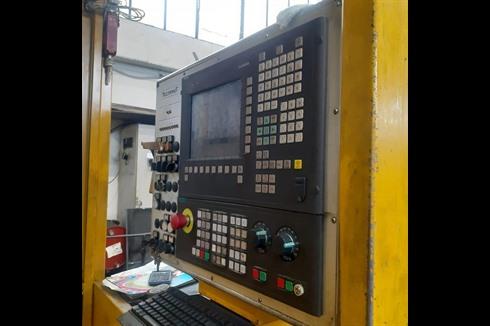

CNC SIEMENS 840 D
TOTAL WEIGHT 65  TONS.
COMPLETE WITH:

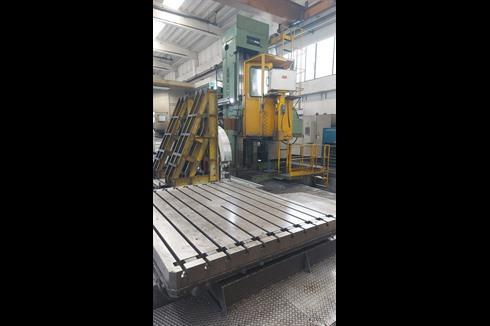

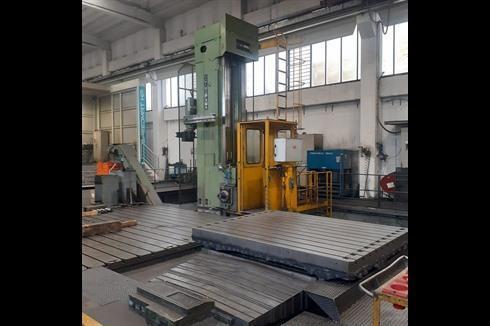

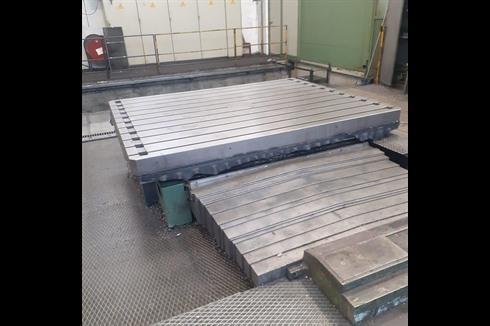

- N. 1 PAMA CNC ROTARY TABLE - 2 AXIS (B; V):
SIZES 2.500 X 2.000  MM.
MAX. CARRYING CAPACITY 30  TONS.
LONGITUDINAL TRAVEL 1.250  MM.
WEIGHT 15  TONS.

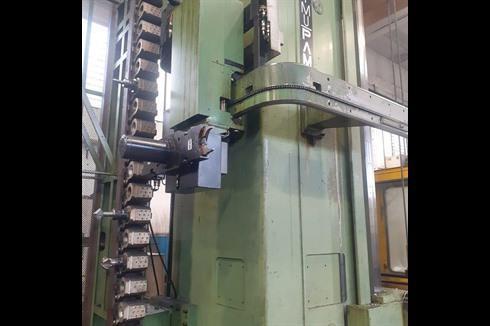

- 60 SEATS ATC
- N. 1 VERTICAL MILLING HEAD - ISO 50
- N. 1 VERTICAL MILLING HEAD - ISO 40
- N. 1 EXTENSION HEAD
- CHIPCONVEYOR

Dealer: NUOVA LOMBARMET SPA
