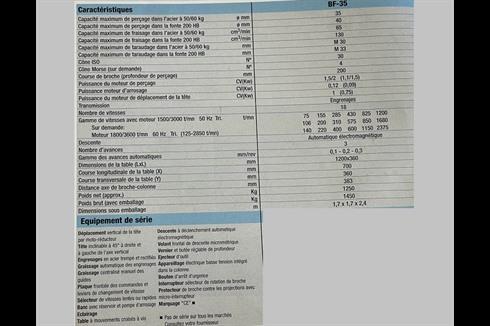

Technical details

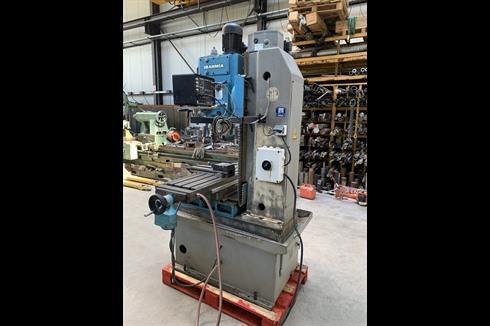

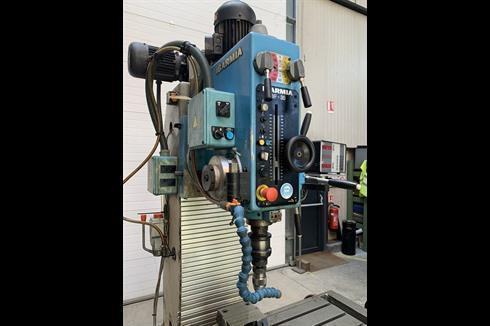

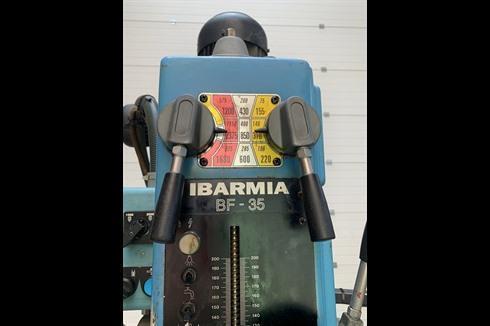

Drilling / Milling Machine IBARMIA BF-35
Year of construction: 2000
Travel X: 675 mm
Travel Y: 350 mm
Travel Z: 500 mm
Cone SA 30
Spindle exit: 200 mm
Spindle speed: from 75 to 2375 RPM

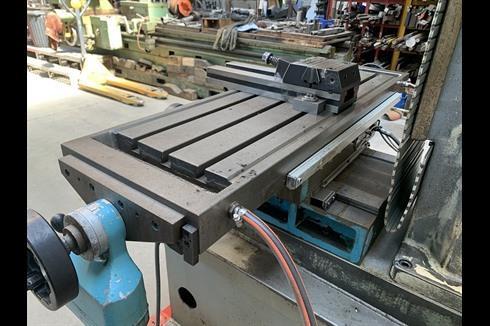

Table size: 1200 x 360 mm
Maxi distance spindle nose/table: 500 mm
Throat depth: 380 mm
Swivel Head at +/- 45°
Table: Manual Y movement - X equipped with auto feed (not functional)
2-speed motor

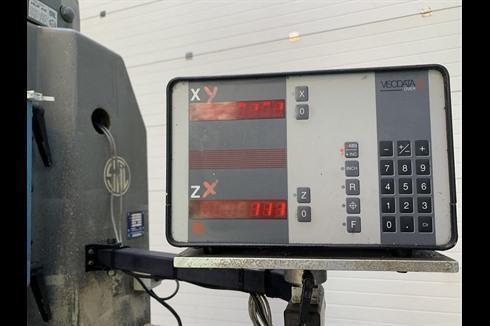

Scale: 2 axes VISODATA
Auto descent
Drilling / Tapping function
Supplied with a vice
Lubricant pump
Voltage: 380 V
Width: 1600 mm
Depth: 1600 mm
Total height: 2400 mm
Weight: appprox 2 T
Dealer: RETEC MACHINES SA
Price request
