Aciera - 22 VA

  • BrandAciera
  • Type/Model22 VA
  • Stock Number18942
  • Price€ 000
  • Website22 VA

Technical details

  • Drilling capacity mm
  • Throat mm
  • Spindle taper
  • CNC Brand
  • CNC Model


Technical data
Table length: 700 mm
Table width: 370 mm
Clamping surface:
Length: 580 mm
Width: 280 mm
Drill capacity in steel: 22 mm
Drill capacity in cast-iron: 24 mm
Taper in spindle: MT: 3
Depth of throat: 300 mm
Drill depth (spindle stroke): 120 mm
Spindle head adjustment: 300 mm
Table travels:
Longitudinal travel (X-axis): 330 mm
Transversal travel (y-axis): 210 mm
Vertical travel (z axis): 350 mm
Spindle speeds:
stepless
from: 40 rpm
up to: 3600 rpm
Feeds:
stepless
from: 0.02 mm/r
up to: 0.25 mm/r
Voltage 50 Hz 3x: 380 Volt
Spindle motor: 1.0 / 1.5 HP
Machine's weight about: 990 kg
Overall dimensions machine:
Length: 900 mm
Width: 1000 mm
Height: 1800 mm
Various accessories:
Threading device
Preparation for coolant device
Lamp
Quick change device
Adjustable depth stop

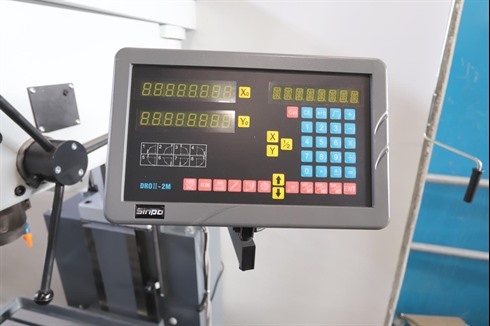

Digital readout number of axis:: 2
Motorized table adjustment

Dealer: MULLER MACHINES SA

MULLER MACHINES SA
Price request
