Anayak - HVM 3800

Anayak - HVM 3800
  • Anayak - HVM 3800
  • Anayak - HVM 3800
  • Anayak - HVM 3800
  • Anayak - HVM 3800
  • Anayak - HVM 3800

Price request

Technical details

  • Table length3800 mm
  • Table width1460 mm
  • Longitudinal X3800 mm
  • Cross Y1460 mm
  • Vertical Z1200 mm
  • Positions ATC30
  • CNC BrandHeidenhain
  • CNC ModelTNC 415/430 M

Stock No.: 4006

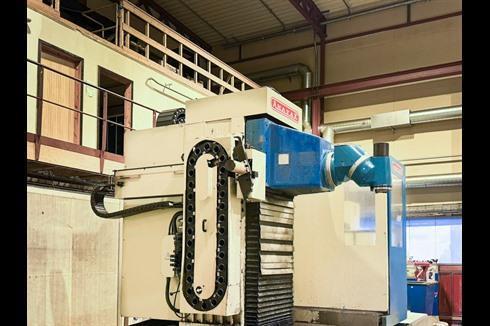

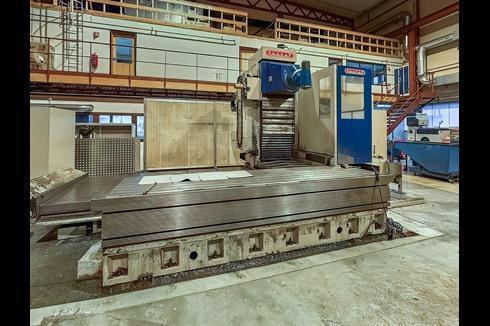

CNC BED MILLING MACHINE
Manuf.: ANYAK, Type: HVM 3800
Serial No.: M-20011006, Build: 2001

Specifications:

Longitudinal travel (X) 3200 mm
Cross travel (Z)        1200 mm
Vertical travel (Y)      1460 mm
Spindle taper            Din 69871-B  - 50  ISO
Spindle speeds          60-3000 - 2 gear rpm
Spindle Motor Power      30/41 Kw
Voltage                  400 V 50 KVA Volt
Tool changer            30 stations

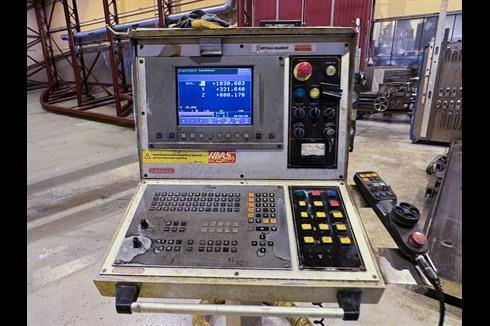

Control system          Heidenhain TNC 415/430 M manuf.
Controlled vertical Head 0.001 Degree
Spindle run time        10659 pr/min
Accessories:
Cooling throug spindle  8 bar

Length: 8820 mm, Height: 3910 mm, Width: 5190 mm, Weight: 33000 kg

Dealer: DENTOOL LTD
