Ibarmia - ZVH 58LL

• Print
• Add to favorites

• BrandIbarmia
• Type/ModelZVH 58LL
• Stock Number4022
• Year2005
• WebsiteZVH 58LL

Technical details

• Longitudinal X3000 mm
• Cross Y1000 mm
• Vertical Z860 mm
• Positions ATC30
• CNC BrandHeidenhain
• CNC Model530

Stock No.: 4022

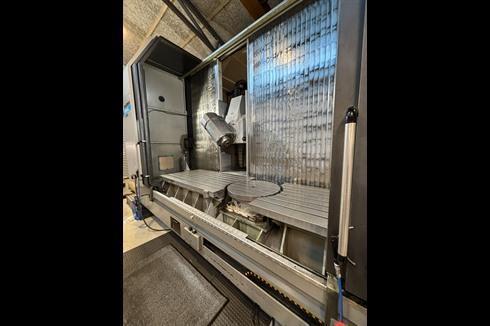

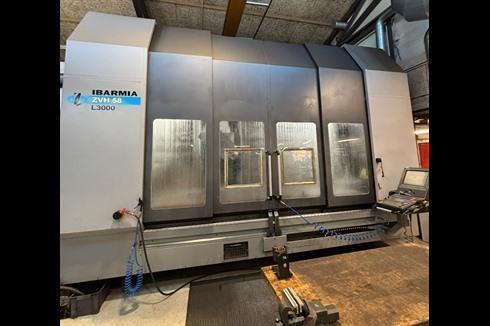

CNC BED MILLING MACHINE
Manuf.: Ibarmia, Type: ZVH 58LL
Serial No.: 05525, Build: 2005

Specifications:

Table size                  3600x1050 mm
Longitudinal travel (X)      3000 mm
Cross travel (Z)            860 mm
Vertical travel (Y)          1000 mm

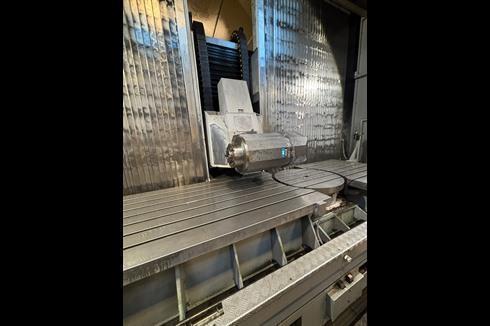

Spindle taper                SK50 ISO
Spindle speeds              9000 rpm
Spindle Motor Power          25 Kw
Tool changer                30 stations

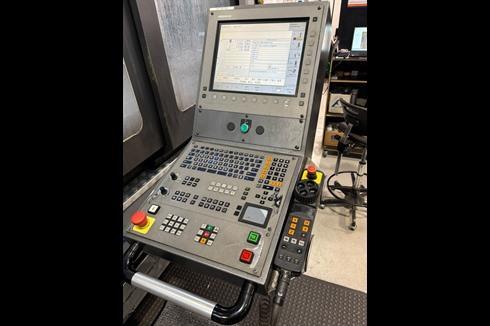

Control system              Heidenhain TNC 530 manuf.
Controlled in                5 Axis
Spindle run time            12060 pr/min
Accessories:
Cooling throug spindle      24 bar

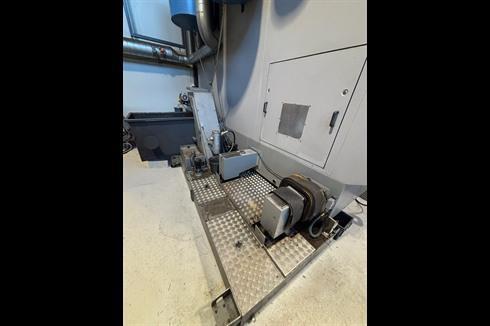

Chip conveyor.
Coolant.
Electric Handwheel
Tuch Probe System
Rotary table.                800mm
Rotary Table (B)            0,001 Degree
Very good working condition.

Length: 8100mm, Height: 3800mm, Width: 5500mm, Weight: 25400 kg

Dealer: DENTOOL LTD

Price request
