EMCO - FB 450 MC

• Drucken
• Zu Favoriten hinzufügen

• FabrikatEMCO
• TypFB 450 MC
• Lagernummer9402
• Baujahr2019

Technische Details

• Tischlänge800 mm
• Tischbreite400 mm
• Längsachse X450 mm
• Quer Y400 mm
• Vertikal Z350 mm
• CNC MarkeSiemens
• CNC Modellx

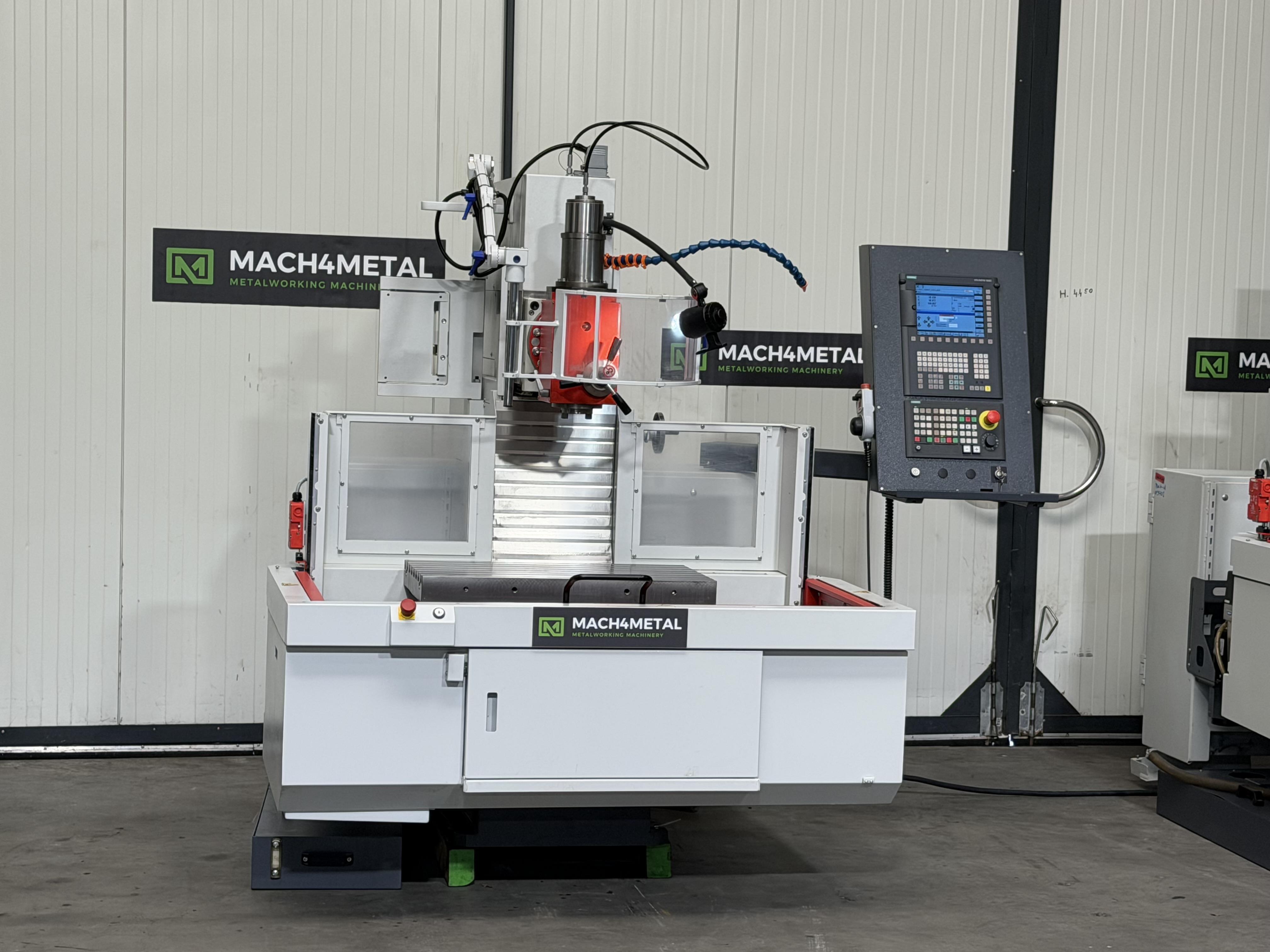

CNC milling machineEMCO - FB 450 MC
MACH-ID 9402
Make: EMCO
Type: FB 450 MC

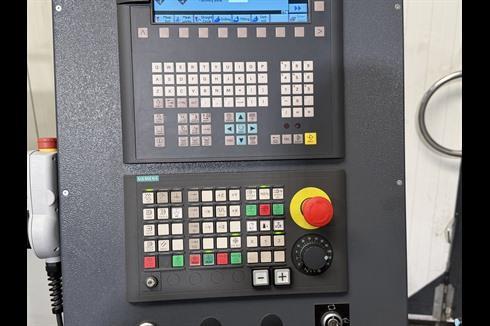

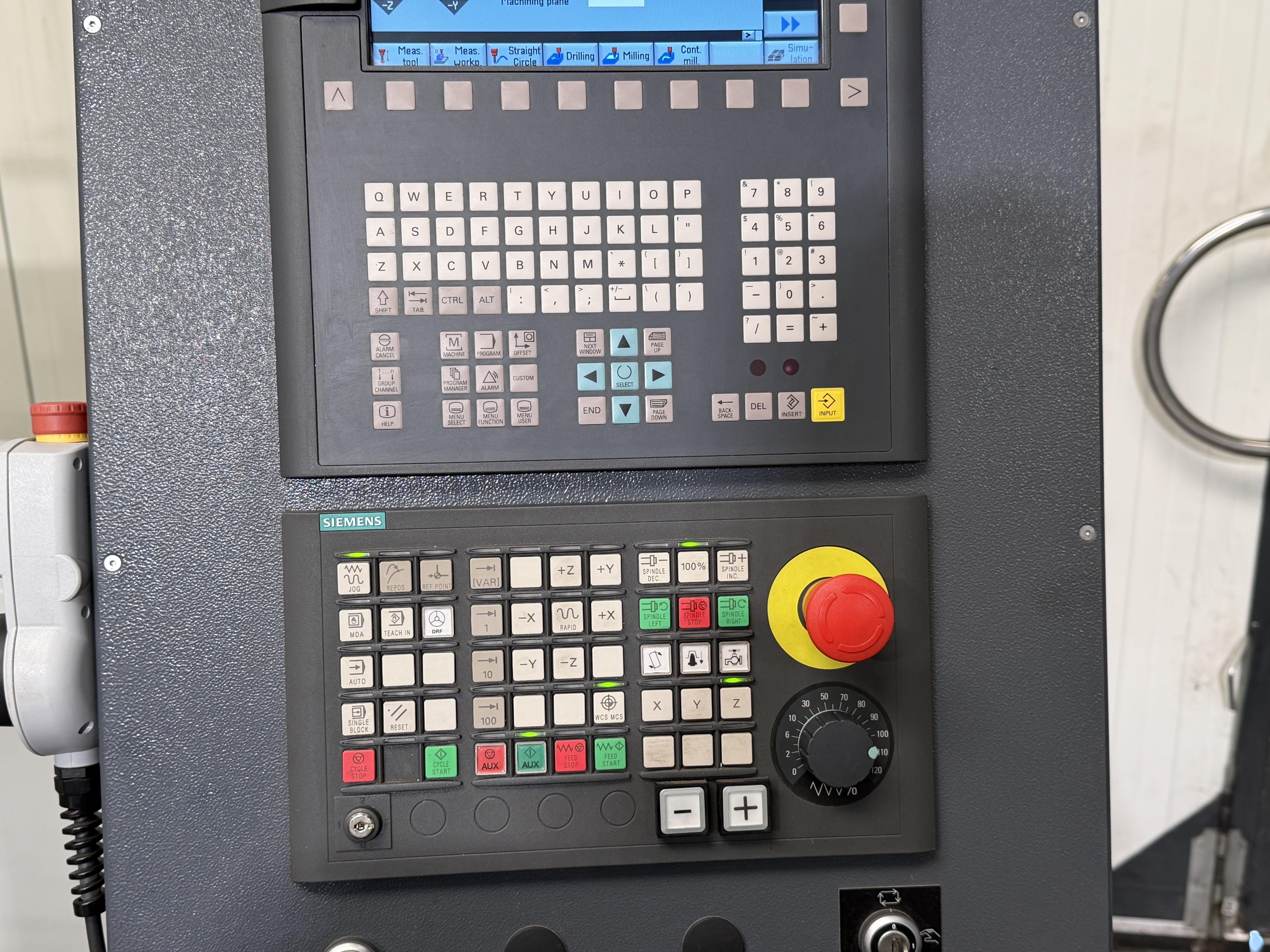

Control: Siemens 828D ShopTurn
Year: 2019

Universal;milling machine with toolmaker precision
Small-batch production to complex workpieces

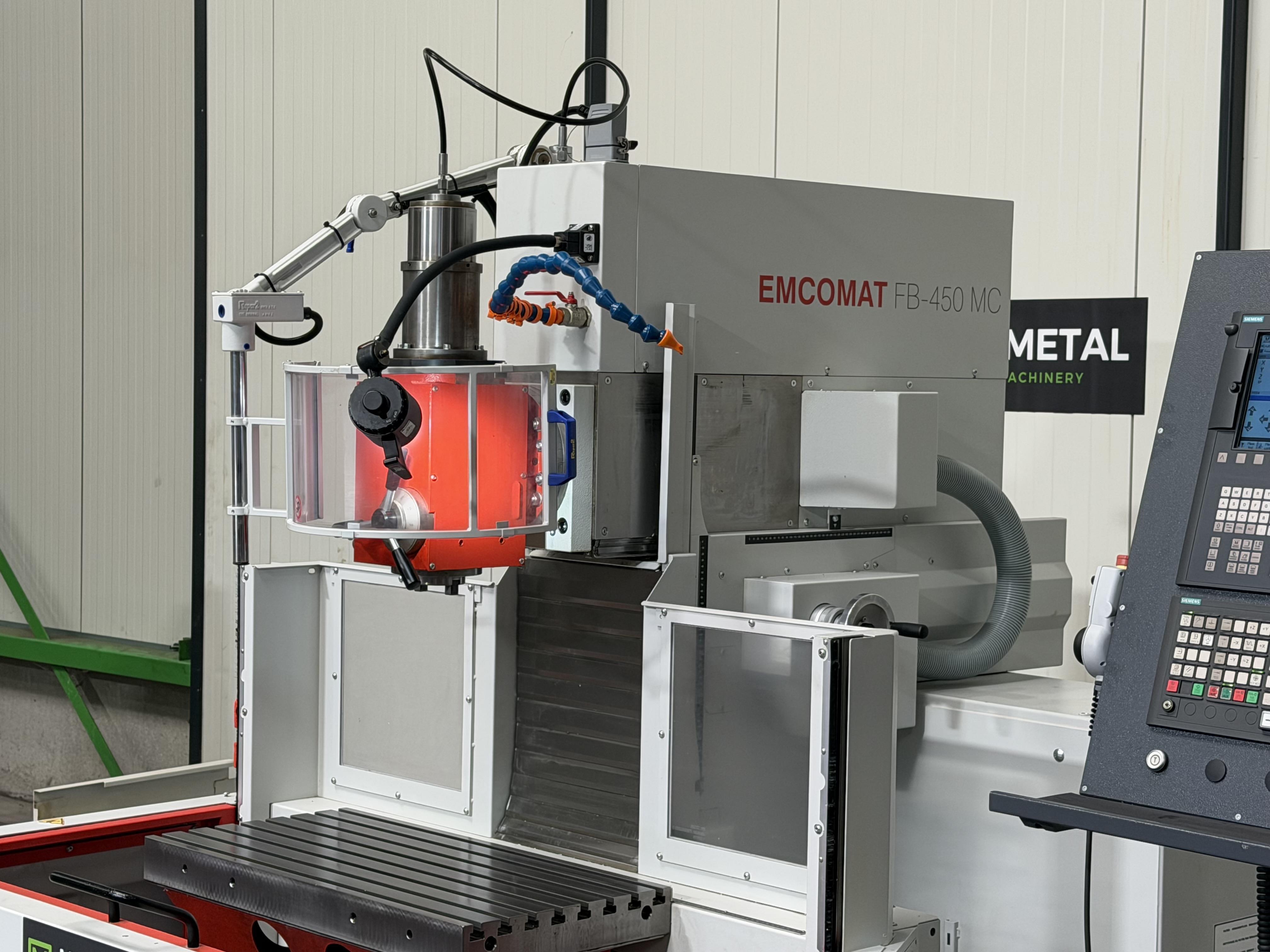

Vertical milling head with hydraulic tool clamping Y and Z Milling
Handwheel in all three axes
Linear guideways in all three axes
Workspace guard retractable with large chip shield
Main motor with spindle brake

X - Travel:     450mm
Y - Travel:     400mm
Z - Travel:     350mm

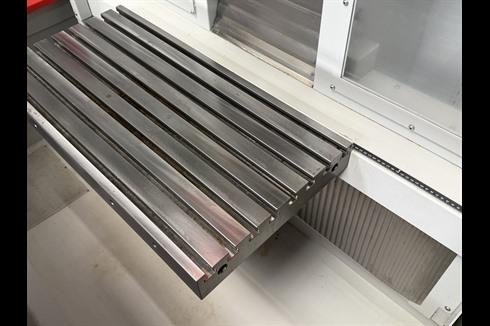

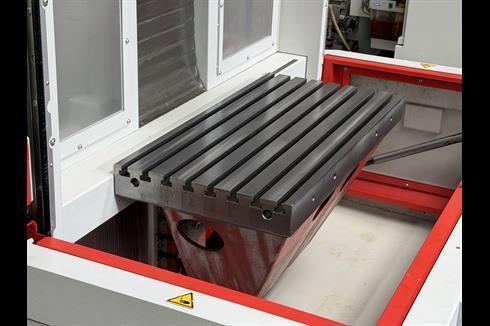

Table Length:   800mm
Table Width:    400mm
Table load:     300
Feed rate X-Axis:5000mm/min.
Feed rate Y-Axis:5000mm/min.
Feed rate Z-Axis:5000mm/min.
Spindle Taper:  40ISO/Bt/Mk
Power on spindle:10kW
Speeds / ranges:5000Rpm
Length:         1990mm
Width:          2300mm
Height:         2220mm
Weight:         2200kg

Händler: MACH4METAL BV

Preisanfrage
