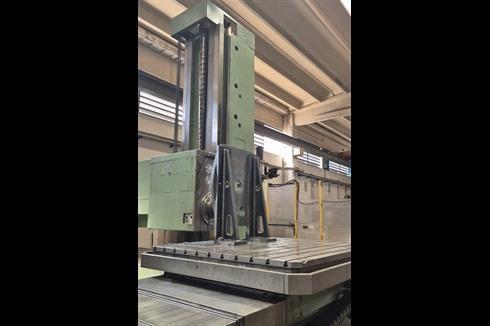

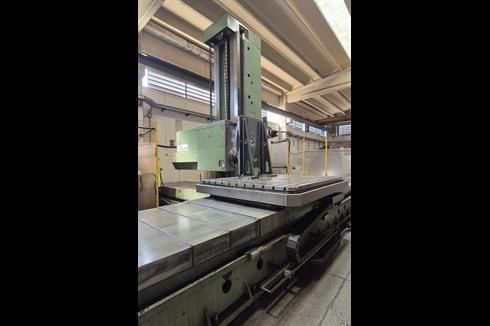

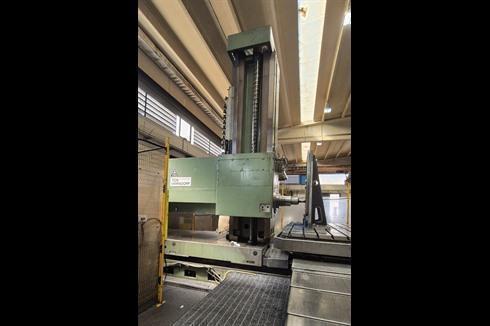

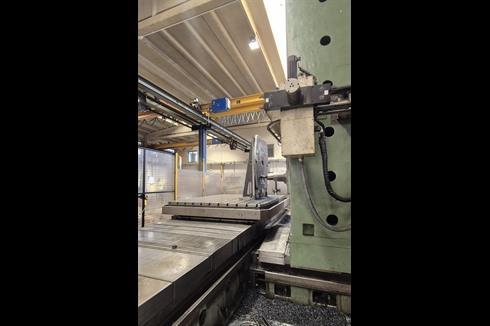

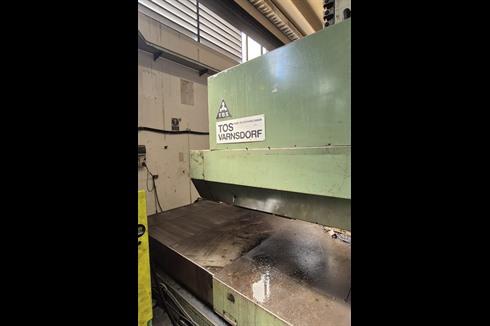

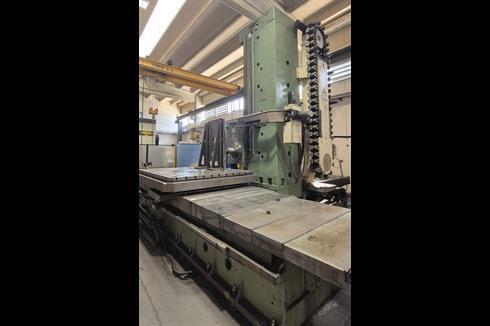

Tos - WHN 13 C CNC

• Drucken
• Zu Favoriten hinzufügen

• FabrikatTos
• TypWHN 13 C CNC
• LagernummerWHN-13-C-CNC
• Baujahr1990

Technische Details

• Spindeldurchmesser130 mm
• Quer X3500 mm
• Vertikal Y2000 mm
• Tischlänge1800 mm
• Tischbreite1600 mm
• Anzahl Werkzeugposition50
• Anzahl Paletten1
• CNC MarkeECS
• CNC Modell4801

TRANSVERSAL TABLE TRAVEL (X) 3.500  MM.
LONGITUDINAL COLUMN TRAVEL (W) 1.250  MM.
VERTICAL HEAD TRAVEL (Y) 2.000  MM.
TABLE 1.800 x 1.600  MM.
MAX. WEIGHT ON TABLE 12  TONS.
SPINDLE STROKE (Z) 800  MM.
SPINDLE Ø 130  MM.
SPINDLE TAPER ISO  50
SPINDLE SPEEDS 5 ÷ 1.500  RPM.
SPINDLE MOTOR POWER 37  KW.
WORKING FEEDS (X; Y; W; Z) 4 ÷ 3.000  MM/MIN.
RAPID FEEDS (X; Y; W; Z) 8.000  MM/MIN.
TOTAL WEIGHT 36  TONS.

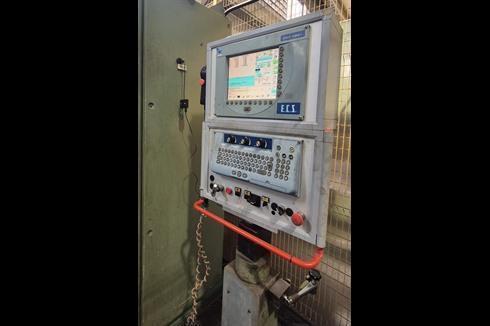

CNC ECS 4801
BUILT IN 1990
COMPLETE WITH:

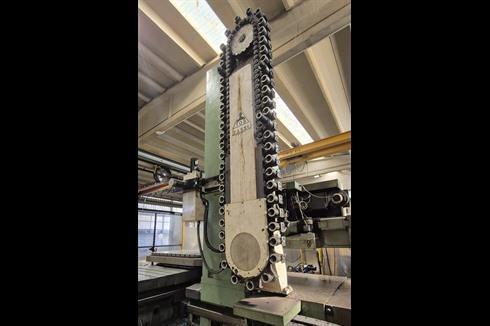

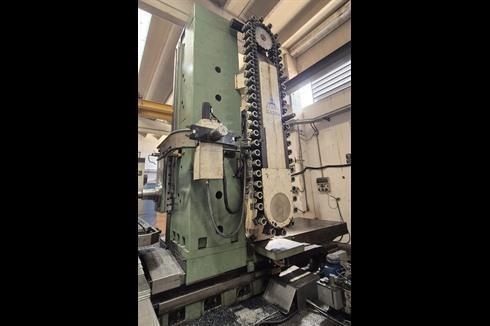

- 50 SEAT ATC
- N. 1 BORING SUPPORT

Händler: NUOVA LOMBARMET SPA
