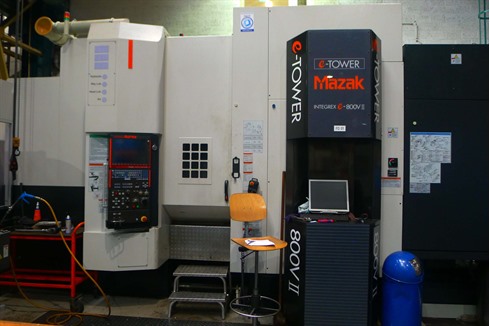

Mazak - Integrex 800 E - V 5 / II

Technische Details

  • Drehdurchmesser730 mm
  • Drehhöhe1000 mm
  • Spannfutterdurchmesser610 mm
  • Anzahl Spannfutters1
  • CNC MarkeMazatrol
  • CNC ModellE Tower Matrix

MACH-id   3536

MAKE   Mazak

TYPE   INTEGREX 800 E - V 5 / II

YEAR  2007 / 5000 Hours

SPECIFICATIONS

Controll   E Tower Mazatrol Matrix

Max. turning diamter Ø  730 mm

Table / chuck size Ø  610 mm

Workpiece height  1000 mm

Work piece weight  880 Kg

ATC tool changer  120

Spindle speeds / ranges  12000 Rpm

Used Mazak Integrex 800 E - V 5 / II

Multi Tasking  Ø 730 x 1000 Height

5 Axis Simultaneously milling

X Axis         :1.100

Y Axis         :  800

Z Axis         :  900

B Axis         : - 30 / + 120 Gr

C Axis         : 360 Gr continuous

Maximum size productsØ 730 x 1000 height x 880 Kg

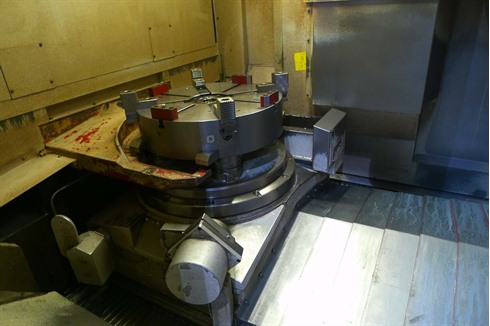

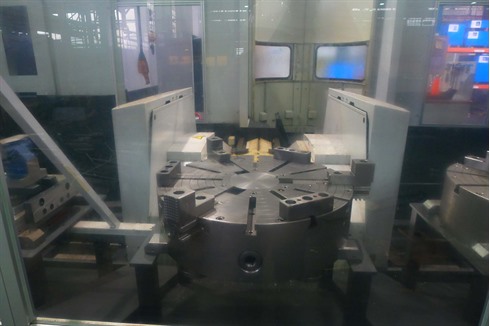

Table size Ø : 610

Pallet changer 6 positions

Table speed : 1000 Rpm

Indexing      : 0.0001 Gr.

5 Axis simultaneous milling

Speeds           : 12.000 Rpm

Spindle taper : Bt  40

B Axis 50 Rpm / indexing 0.0001 Gr

.Feed rate X/Y/Z : 50.000 mm/Min

Chain ATC  120 positions CAPTO

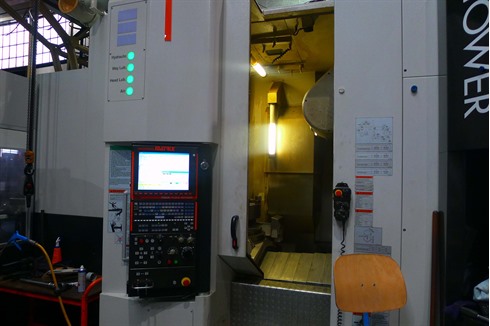

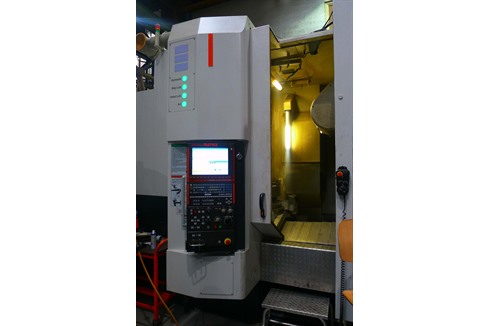

CNC Control E Tower Mazatrol MATRIX

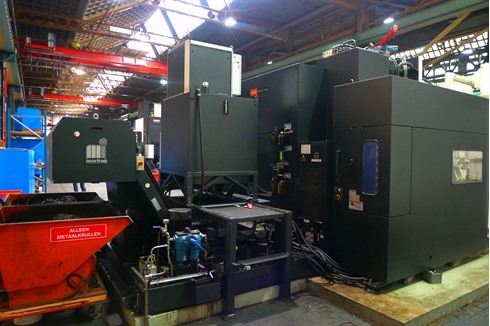

Double chip conveyor

High pressure coolant system  Dimensions

Length                 : 9.708

Width                  : 7.095

Height                 : 3.450

Weight                : 21.500

Table power          : 30 kW

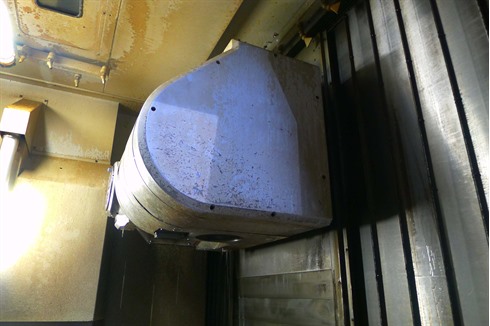

Milling power        : 22 kW Machine with only 5000 Hours Replaced are; Linear guideway X DirectionB Axis tableMotor spindle milling cartridgeWe have also some other 5-axis machines for sale with turing and milling. See our website for multi tasking machining centers and other cnc machinery.

www.mach4metal.com
