Technische Details

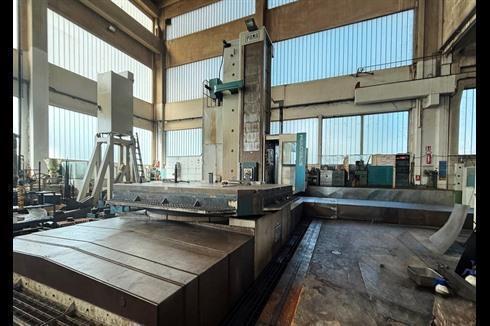

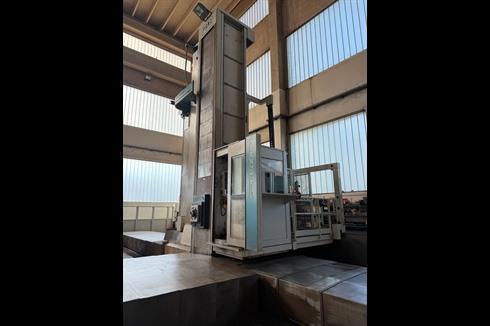

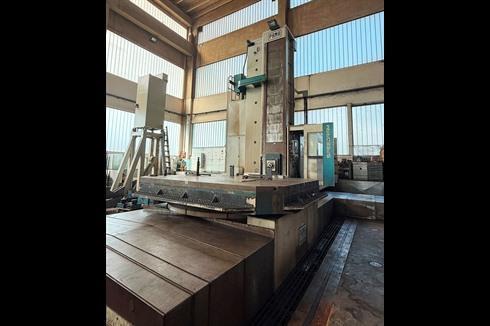

CNC BORING PAMA mod. SPEEDRAM 2000
Hydrostatic

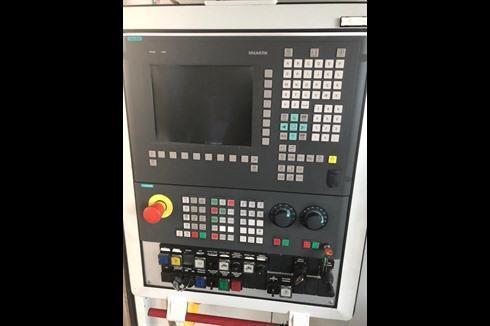

Numerical control Siemens Sinumerik 840D
X-axis mm 13.000
Y-axis mm 5.000
Z-axis mm 1.200
W-axis mm 1.000
Total axial travel (Z+W) mm 2.200
Work feed on all axes mm/min 8.000
Rapid feed on all axes mm/min 20.000
Spindle:
Boring spindle diameter mm 180

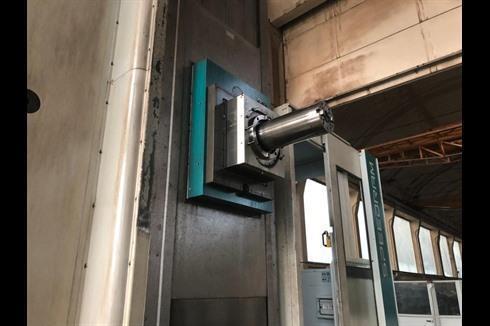

Ram dimensions mm 400 x 440
Spindle rotation speed (3 ranges) max rpm 2.500
Spindle power (S1) kW 91
Rated spindle torque (S1) Nm 9.050
Boring spindle internal taper ISO 50 DIN 69871 AD-Type Big Plus

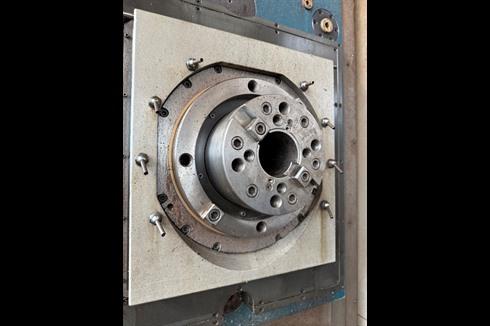

Orthogonal indexable head - TTL2 25 360
Tool taper ISO 50 DIN 69871/2 AD-Type Big Plus
Max spindle power kW 25
Max spindle speed rpm 2.500
Speed ratio 1:1
Spindle indexing +/- 100°, 200 positions every 1°
Head indexing +/-180°, 360 positions every 1°
Max rated spindle torque 1.000 Nm

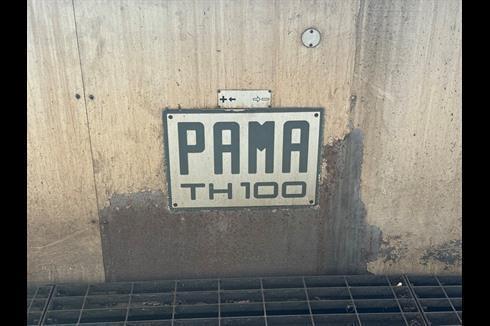

Rotary and linear axis table TH 100:
Table dimensions mm 3.000 x 3.500
Load capacity Ton 100
Center T-slot dimension mm 36h7
Side T-slot dimension mm 36h12
Slot pitch 320
Longitudinal travel V-axis mm 2.500
Feed/rapid speed V-axis mm/min 10.000

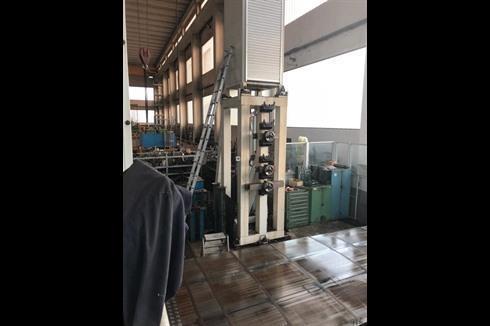

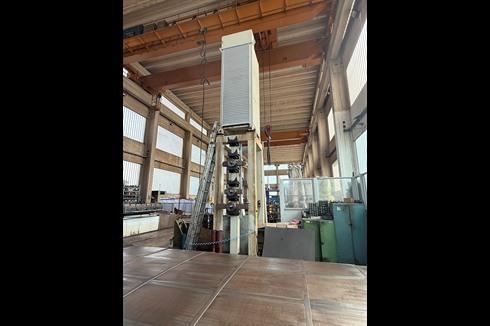

Chain-type tool magazine cu 145 r80, 80 tools
Machine weight approximately 160/165 Ton
Complete with:
- Accessory storage with 2+1 positions, fixed enclosed type
- Fixed tool holder rack (ISO50, 6 positions)
- External - internal tool coolant system 30 bar
- Radio transmission workpiece probe (renishaw)
- Hinged belt chip conveyor
- No. 02 Chip conveyors on sides of rotary table
USED MACHINE
YEAR 2009
Händler: BENTIVOGLIO MACCHINE UTENSILI S.R.L
