Technische Details

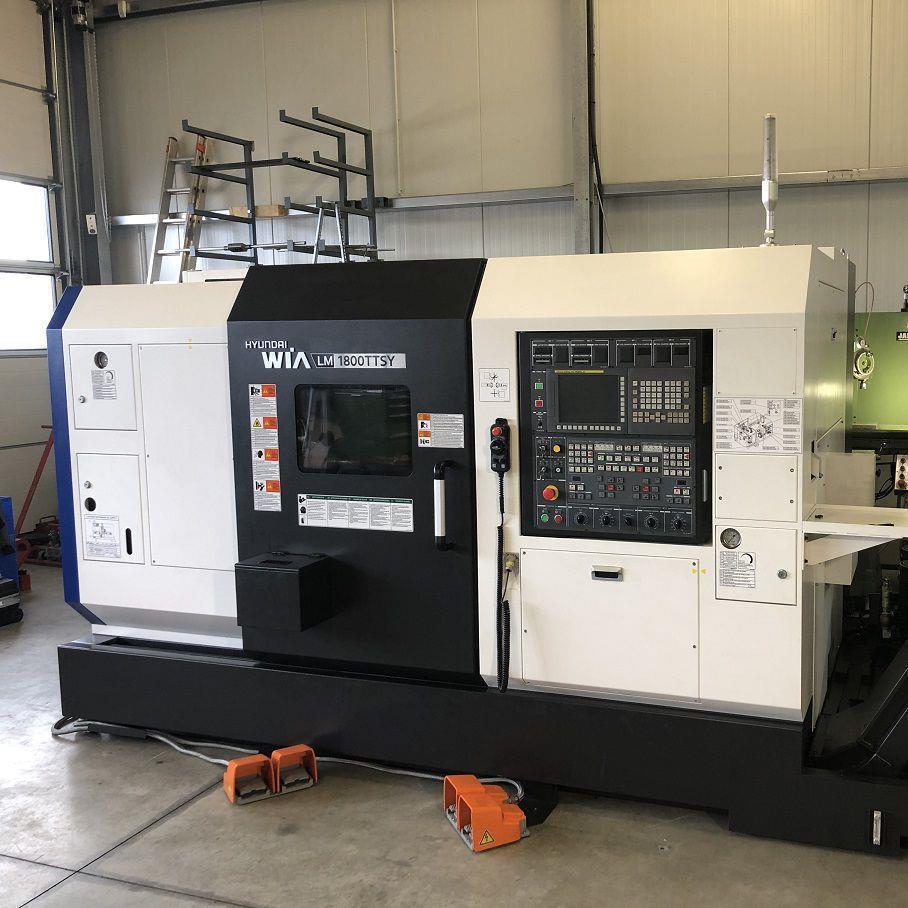

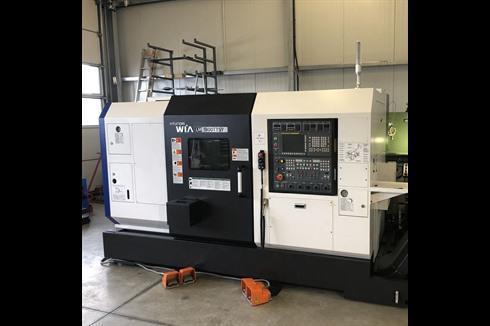

CNC Lathe with y-axisHYUNDAI - LM1800TTSY
Twin spindle construction
Twin turret configuration with Y Axis
(Y-Axis Cutting complex shaped work piece)
Build in Spindle motor
High Rigidity BMT Turret
Full C-Axis 360.000
Slant bed construction 45 Gr

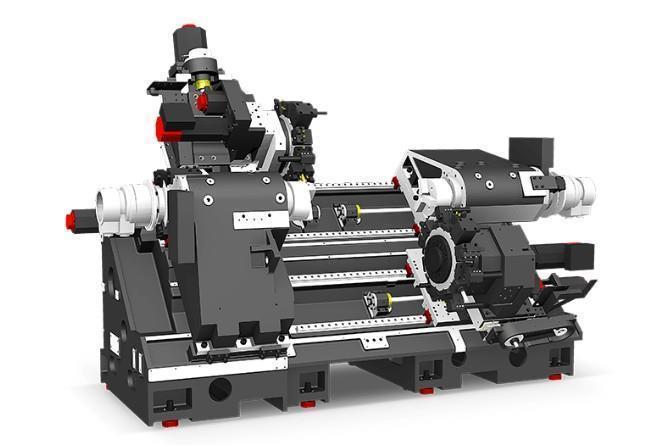

Please note Pictures is example not orginal picture !
Max. turning Ø: 290mm
X-Axis: 165/195mm
Y-Axis: 100mm
Z-Axis: 700/720mm
B Axis: 668°
Spindle bore: 76mm
Speedrange: 5000Rpm
Spindle power: 22kW
Subspindle speeds: 5000Rpm
Subspindle bore: 76mm
Subspindle power: 22kW
ATC / revolver: 12
Speed live tools: 5000Rpm
Positions lower revolver:12
Speed live tools: 5000Rpm
Power live tools: 6kW
Chip conveyor: Yes
Tool eye: Yes
Length: 3800mm
Width: 2000mm
Height: 2100mm
Weight: 8500kg
