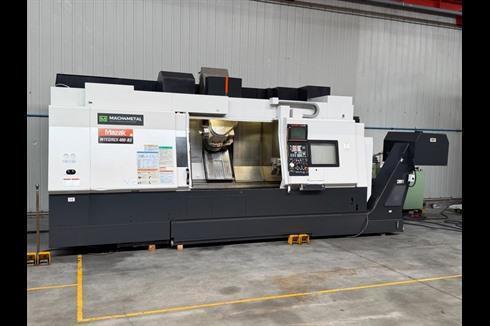

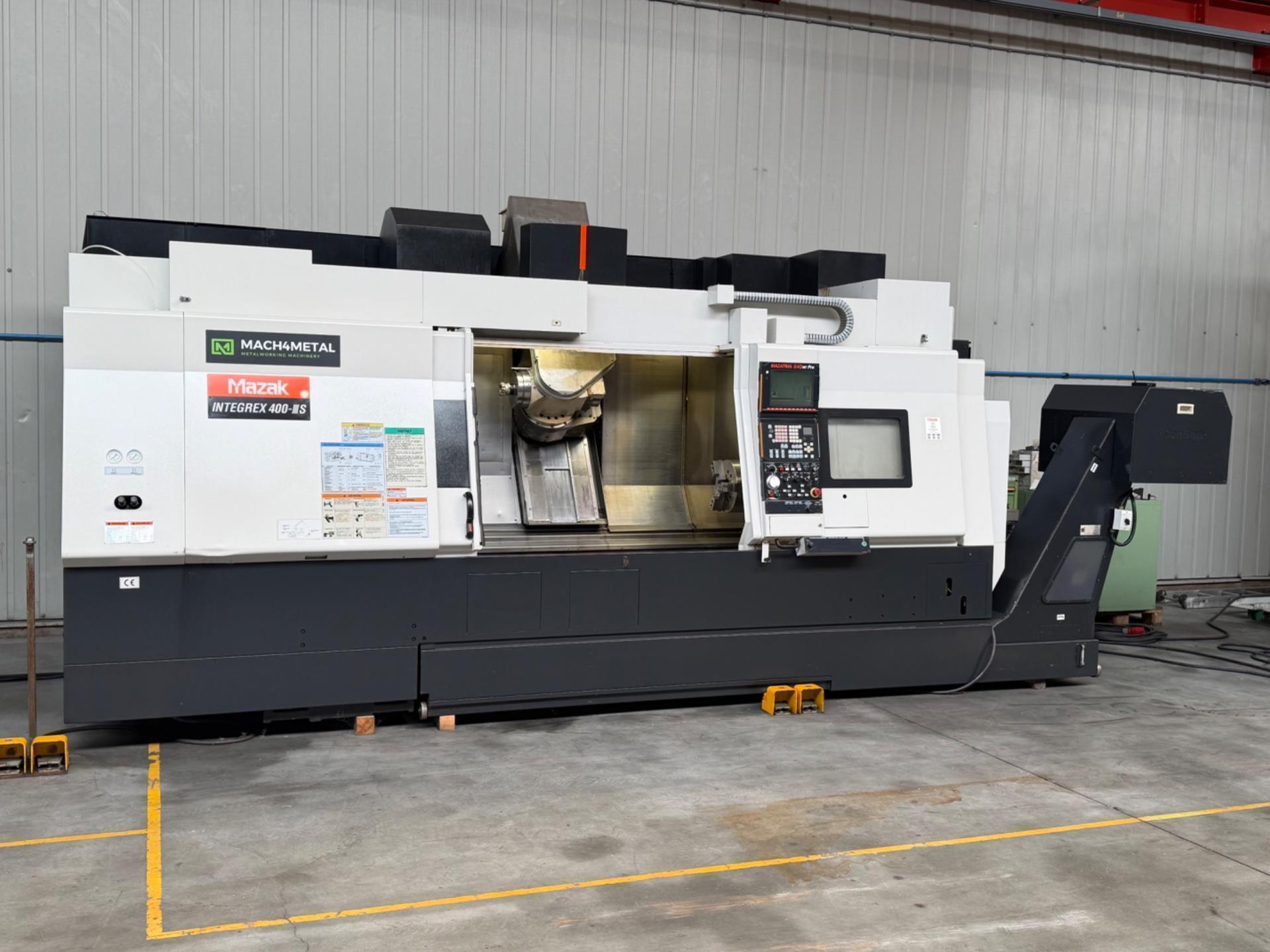

Multi-tasking latheMAZAK - INTEGREX 400 III-S
MACH-ID 9809
Make: MAZAK
Type: INTEGREX 400 III-S
Control: MAZATROL 640 MT PRO
Year: 2005
Only 4630 Cutting hours
Automatic door
40 CAPTCO C6-Tool magazin
Robot interface
5 Axis simulteneous package
Sub spindel with C-Axis and 0,0001 Degree

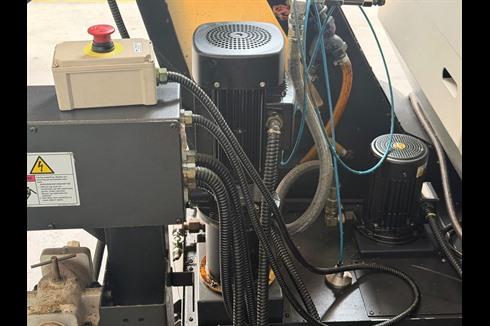

Internal Grundfos 15 Bar coolant
Chip conveyor
Optional tooling package with 40 holders
Max. turning Ø: 850mm
X-Axis: 630mm
Y-Axis: -115 to + 115mm
Z-Axis: 1585mm
B Axis: -30 to +195°

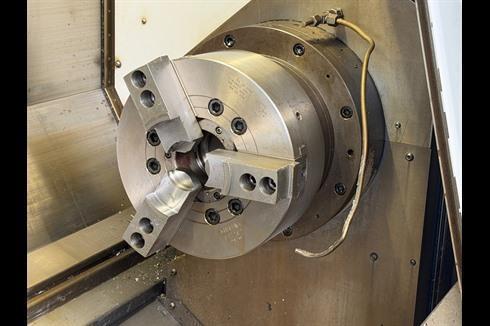

Spindle bore: 102mm
Speedrange: 3300Rpm
Spindle power: 30kW
Subspindle speeds:3300Rpm

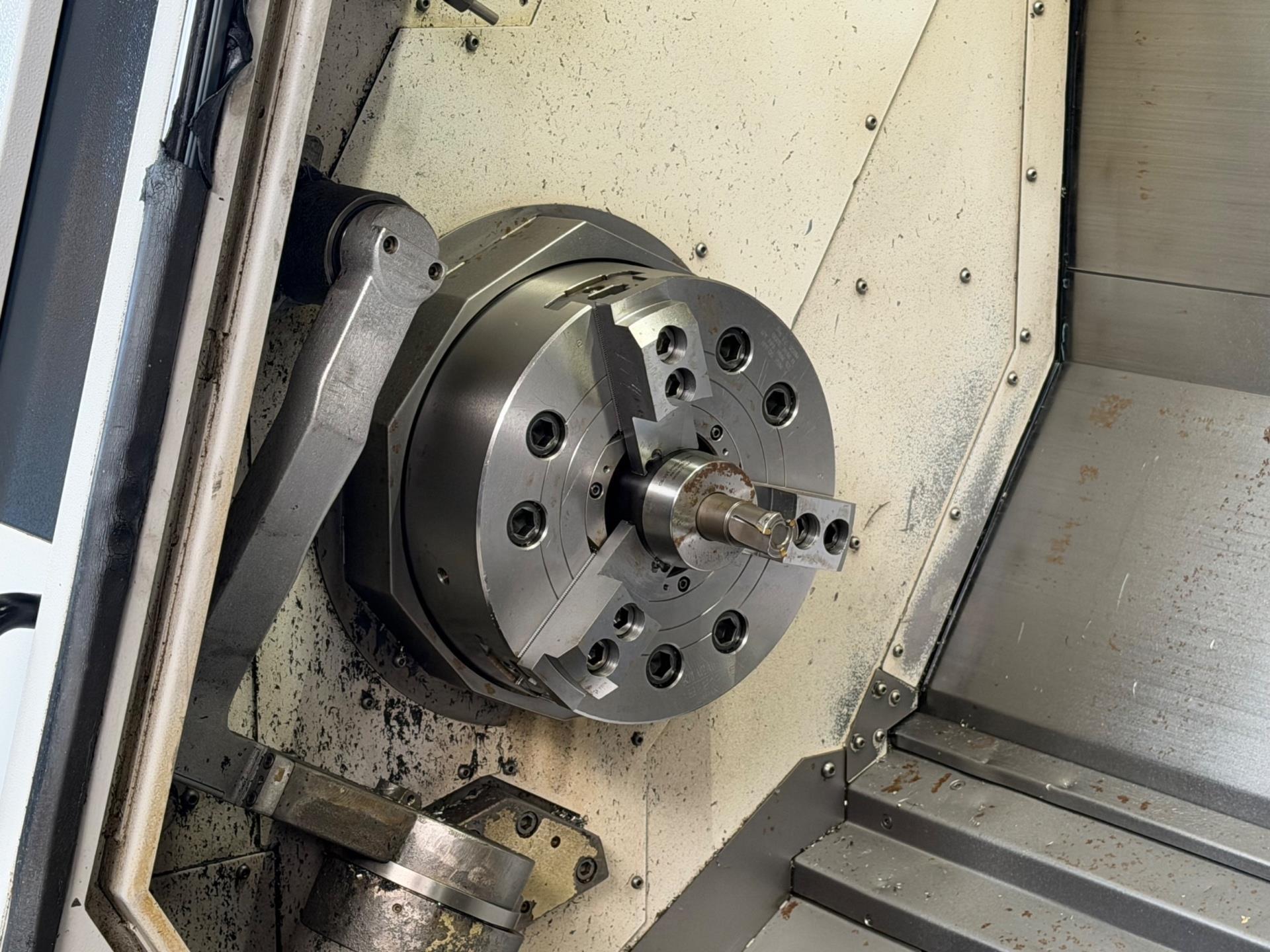

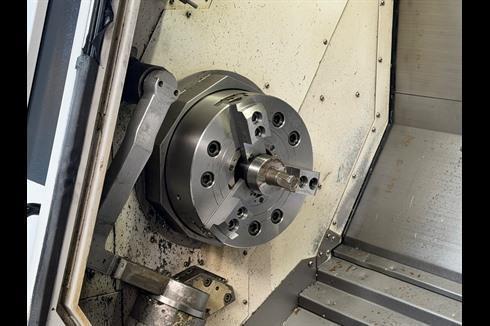

Subspindle bore: 102mm
Subspindle power: 26kW
ATC / revolver: 40
B-Axis Toolsystem:Capto C6
B-Axis Speedranges:12000Rpm
B-Axis power: 19kW
Chip conveyor: Yes
Tool eye: Yes
Hours: 4630H
Length: 7000mm
Width: 2700mm
Height: 2800mm
Weight: 14500kg
The Mazak INTEGREX 400-III S is a fairly heavy multi-tasking CNC turning/milling centre. In practical terms, it combines a CNC lathe, a 5-axis milling machine and a second spindle in one machine, allowing complex parts to be machined almost completely in one setup.
What does the “S” mean?
The important part is the S = second/sub spindle. So you have:
Main spindle → B-axis milling head → Y-axis → sub-spindle
This means you can turn and mill the front of a component, transfer it automatically to the sub-spindle, and then machine the back side. That's what makes this a true complete-machining / done-in-one machine.

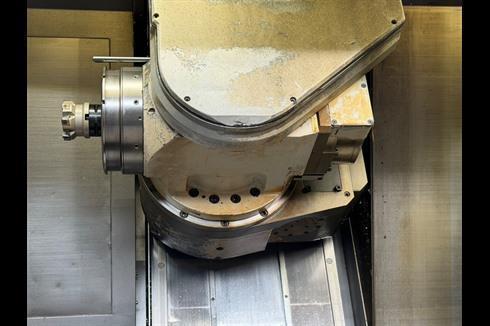

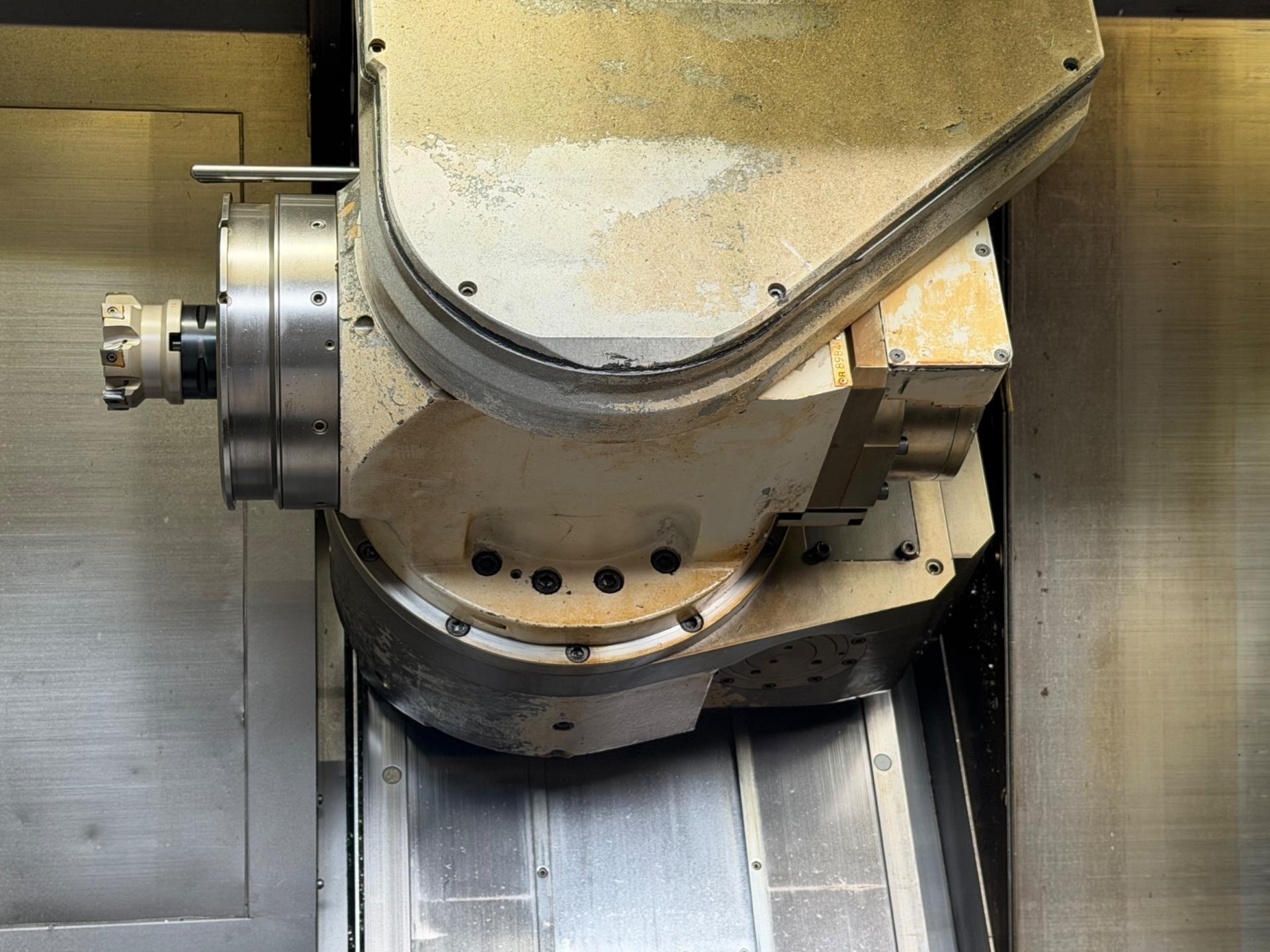

The 400-III S primarily works with the B-axis milling head and the two spindles.
For the type of machines you normally evaluate, I'd classify the 400-III S as a serious, relatively high-spec Integrex of its generation. It was aimed at complex shafts, aerospace/energy components, hydraulic parts, general high-value subcontract work, etc.
