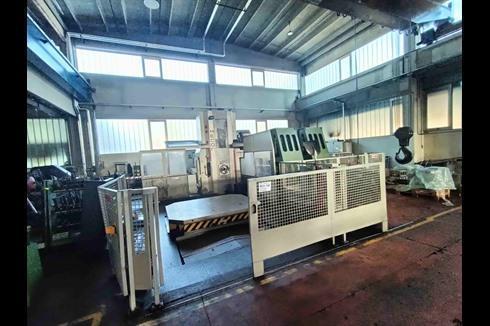

Mecof - AGILE M 3 CNC

• Drucken
• Zu Favoriten hinzufügen

• FabrikatMecof
• TypAGILE M 3 CNC
• LagernummerAGILE-M3-2002
• Baujahr2002

Technische Details

• Tischlänge2500 mm
• Tischbreite2000 mm
• Längsachse X8000 mm
• Quer Y1850 mm
• Vertikal Z1250 mm
• Anzahl Werkzeugposition41
• CNC MarkeFidia
• CNC ModellC20/XPOWER

TRANSVERSAL COLUMN TRAVEL (X) 8.000   MM.
VERTICAL HEAD TRAVEL (Y) 1.850   MM.
RAM TRAVEL (W) 1.250   MM.
SPINDLE POWER 30   KW.
SPINDLE SPEEDS 15 ÷ 6.000   RPM.
SPINDLE TAPER ISO   50
WORKING FEEDS (X; Y; W) 0 ÷ 20.000   MM/MIN.

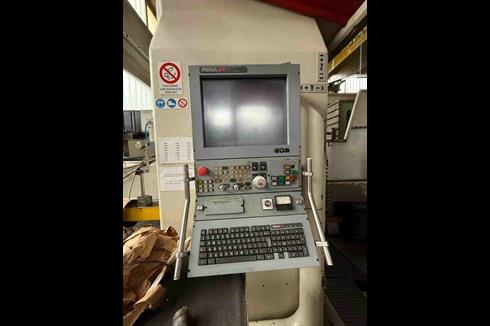

CNC FIDIA C20/XPOWER
BUILT IN 2002
COMPLETE WITH:

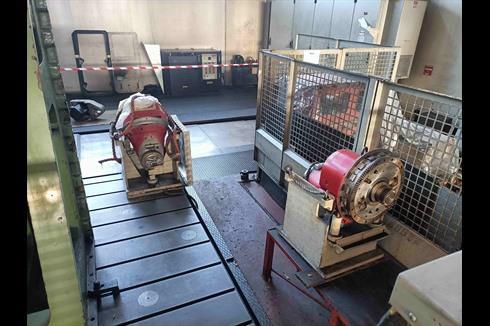

- N. 1 UNIVERSAL INDEXED MILLING HEAD: C AXIS 1°, A AXIS CONTINUOS; 15 ÷ 4.000 RPM.
- N. 1 HORIZONTAL HEAD: 10 ÷ 3.000 RPM.

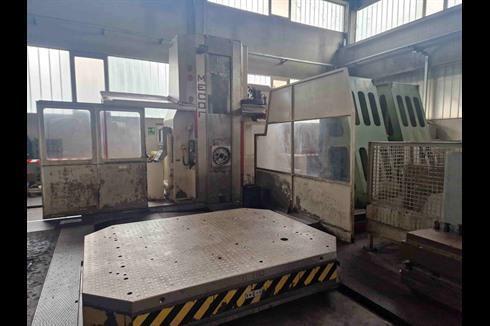

- N. 1 CNC ROTARY TABLE - 2 AXIS:
SIZE 2.500 X 2.000   MM.
MAX. WEIGHT ON TABLE 28   TONS.
TRAVEL (V) 2.000   MM.
WORKING FEEDS (V) 0 ÷ 6.000   MM/MIN.

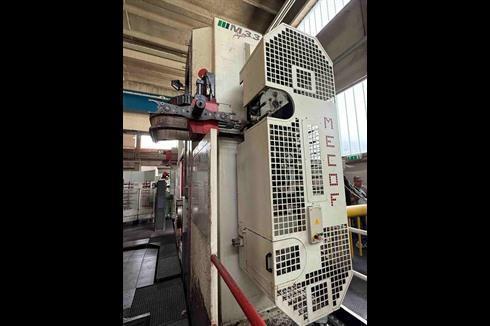

- 41 SEATS ATC

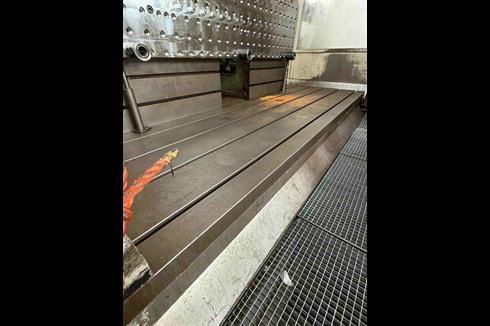

- N. 1 FLOOR PLATE 4.000 X 2.500 MM.

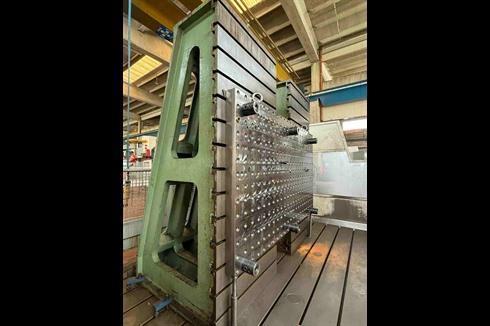

- N. 2 ANGLE PLATES 1.000 X 1.200 X 2.500 H MM. EACH ONE
- CHIPCONVEYOR

Händler: NUOVA LOMBARMET SPA
