Zayer - 30 KCU 10000

• Drucken
• Zu Favoriten hinzufügen

• FabrikatZayer
• Typ30 KCU 10000
• Lagernummer9239
• Baujahr1996
• Website30 KCU 10000

Technische Details

• Tischlänge12000 mm
• Tischbreite1250 mm
• Längsachse X10000 mm
• Quer Y1500 mm
• Vertikal Z2500 mm
• Anzahl Werkzeugposition1
• CNC MarkeHeidenhain
• CNC Modellx

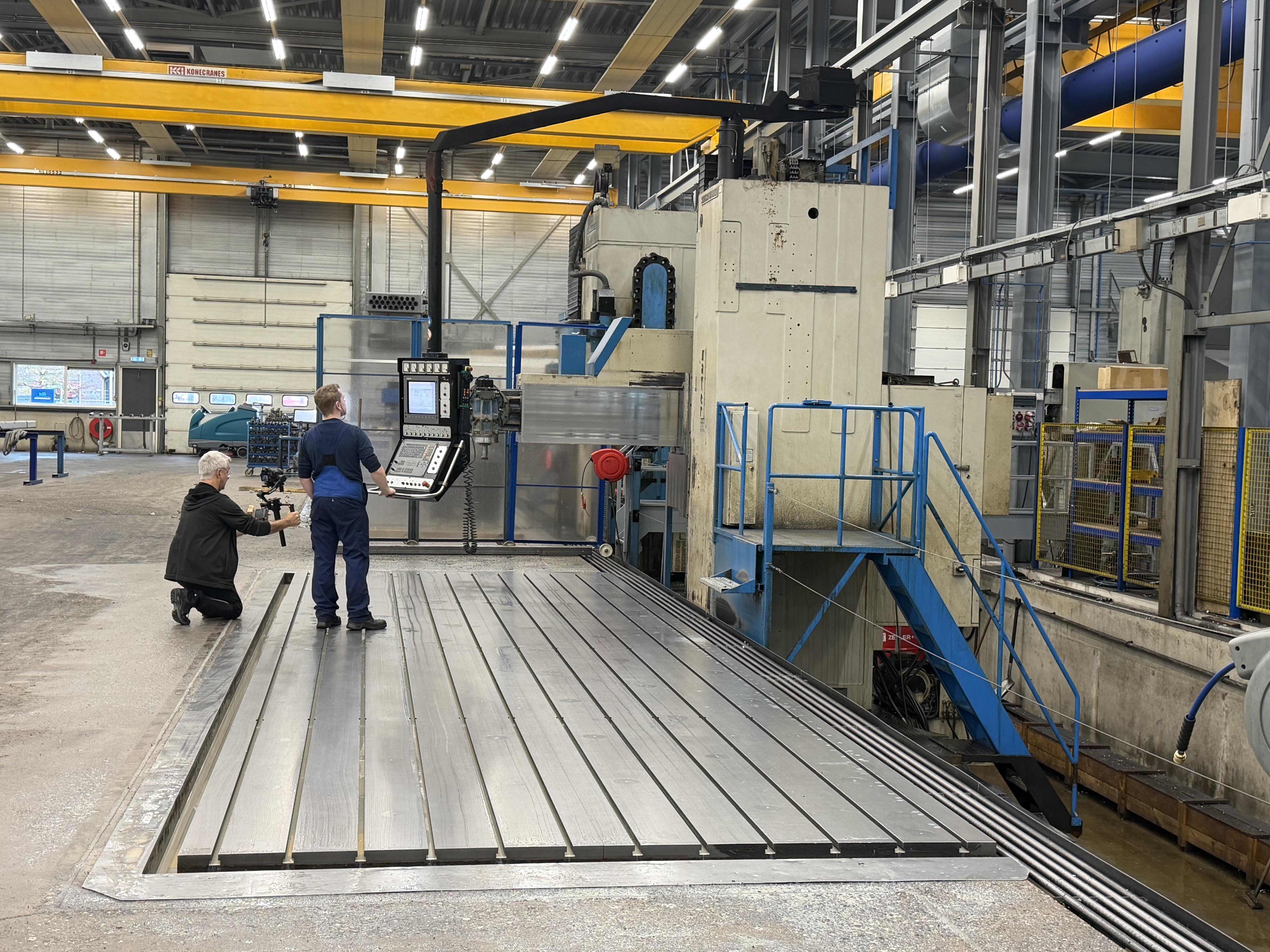

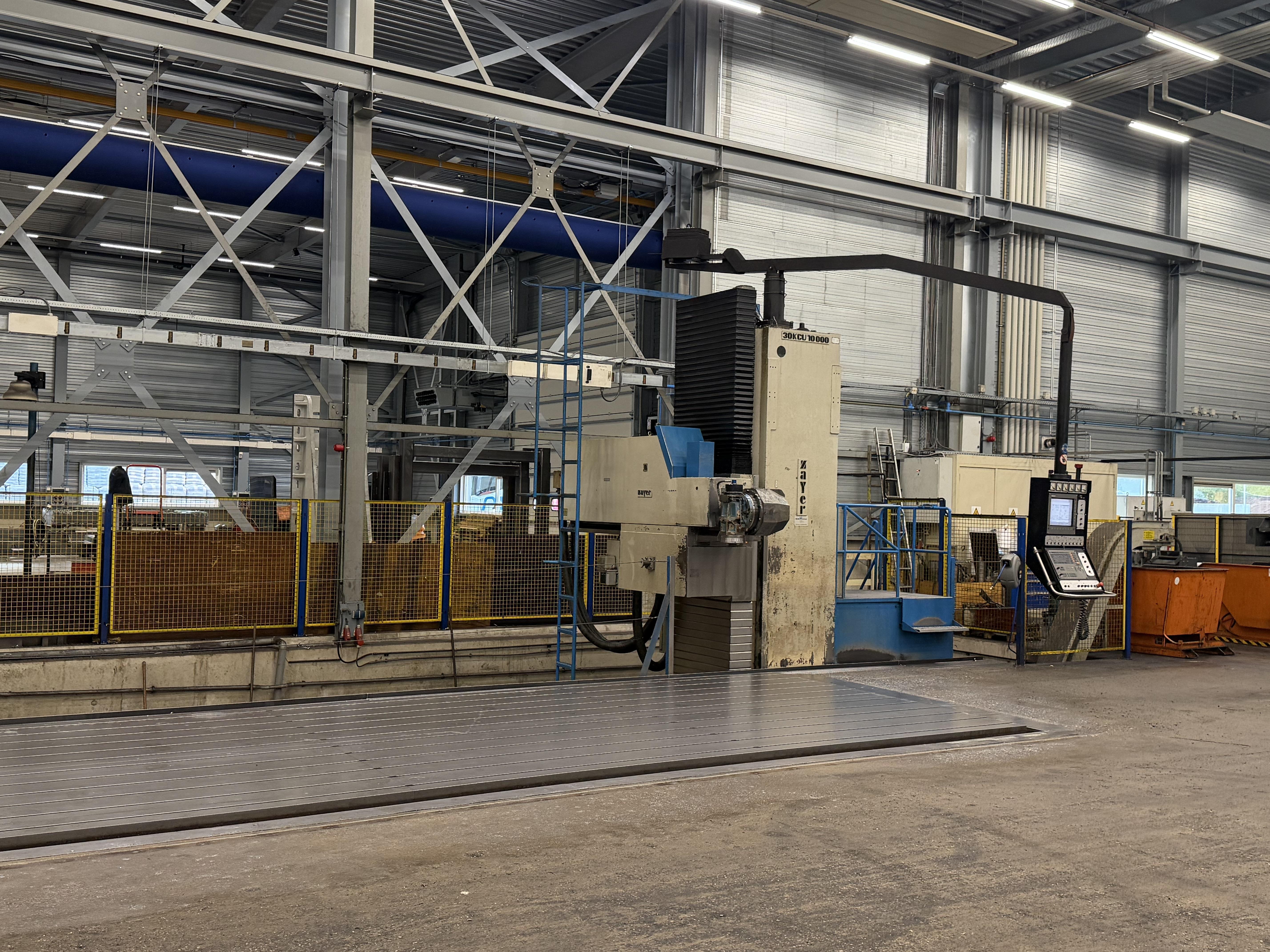

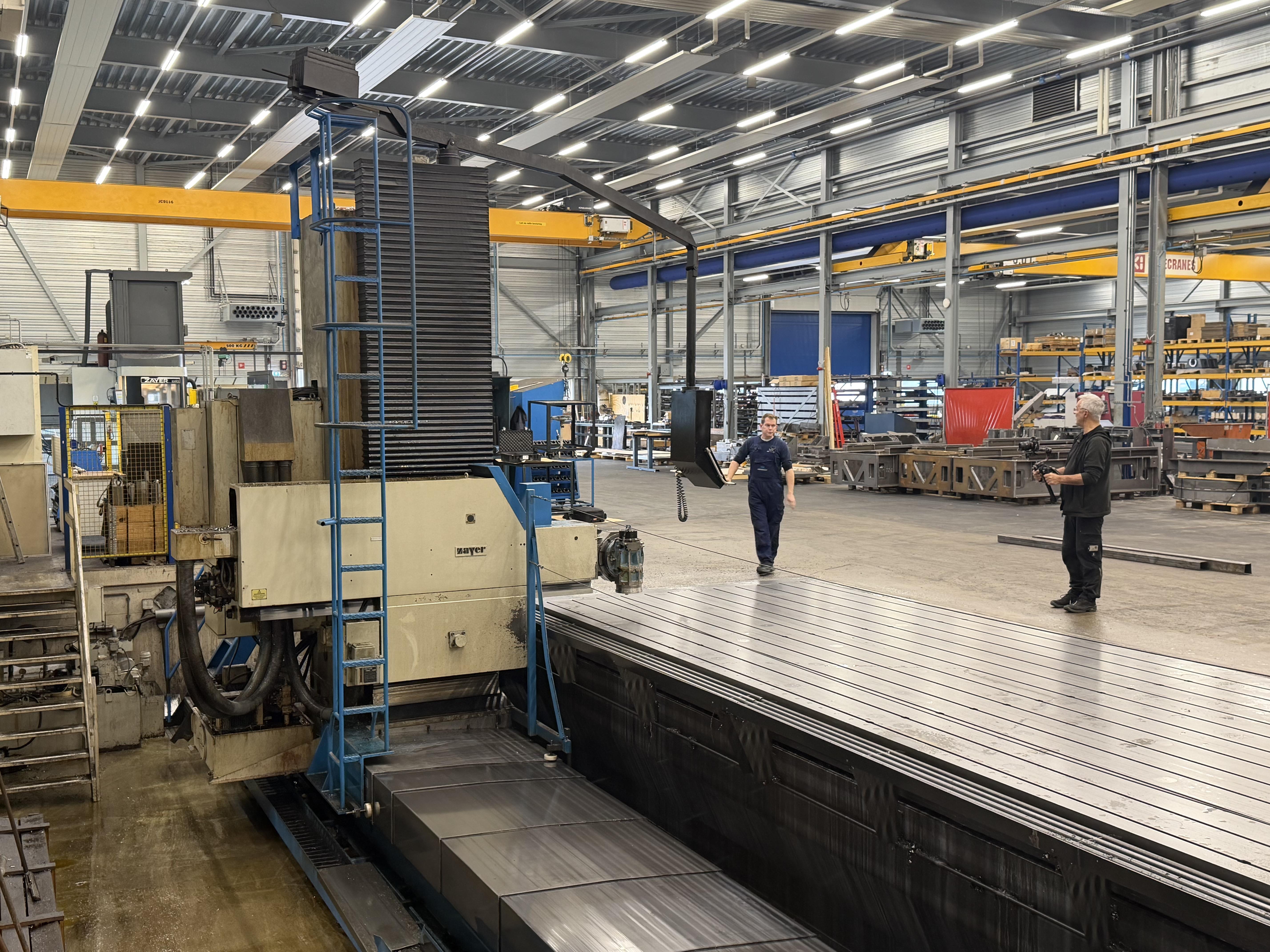

Bed type milling machineZAYER - 30 KCU 10000

New HeidenHain iTNC530 controller in 2015
New bearing in head September 2025
X/Y/Z Linear measuring system
IKZ 15 Bar High pressure coolant
Central lubrication
Optional 2 x floorplates 6000 x 1250 x 245 mm #9240
T-28 with 5 T Slotts and 250 Jump

X-Axis:               10000mm
Y-Axis:               1500mm
Z-Axis:               2500mm
Table Length:         12000mm
Table Width:          1250mm
Table load:           20000Kg
Power on spindle:     37kW
Spindle speeds:       3500Rpm
Spindle Taper:        50ISO/Bt/Mk
Feed rate X-Axis:     10000mm/min.
Feed rate Y-Axis:     10000mm/min.
Feed rate Z-Axis:     10000mm/min.

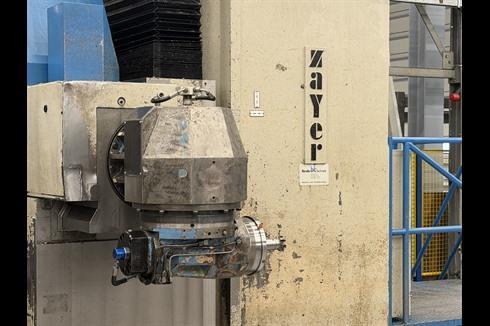

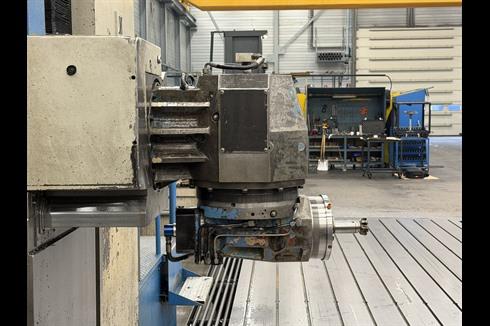

Millinghead auto-index:Orthogonal 1 Degrees 2 sides°
Length:               16000mm
Width:                4200mm
Height:               6800mm
Weight:               60000kg

Händler: MACH4METAL BV

Preisanfrage
